5 Equipment Installation

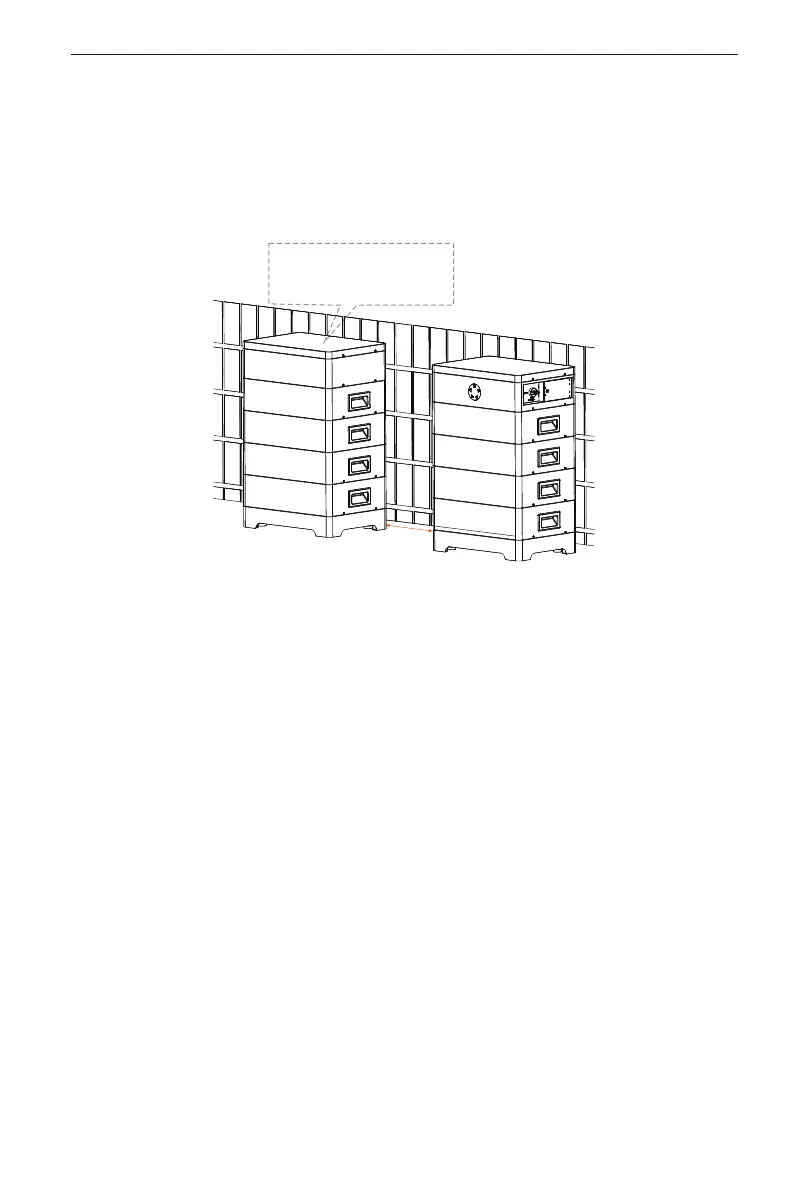

Installation steps with Series Box
In case of more than 10 sets of battery module (including 10), a Series Box needs
to be installed to connect two towers in series, and an accessories kit for Series
Box will not deliver for free.
The installation procedure for these two towers is the same as that for one
tower. For details, please refer to the Step 1 to 8.
400 to
800 mm
An assembled bracket is
also required to installed
for this tower.
BMS
Series Box
*Note:
1. The rule for the sequence of battery modules in the whole system is as fol-
lows: In the case of one tower, the battery module closest to the BMS is num-
bered the first battery module, followed by the second battery module, the
third battery module, according to the top-down principle. If another tower
exists, the battery module closest to the “Series Box” can be continued num-
bering based on the tower with the BMS.
2. Regarding the cover plates on both sides of the BMS and the left side of the
Series Box, they should be installed after finishing wiring.
