5 Equipment Installation
5.2 Installation Procedure
*Note:
1. Up to 9 battery modules can be installed in one tower. If the battery module
users purchased excesses 10 sets (including 10), a Series Box needs to be
installed to connect two towers in series.
2. The bearing capacity of the ground which is used to install the whole battery
system must be over 500 kg/m.
Installation steps without Series Box
Take the installation procedure for four battery modules as an example.

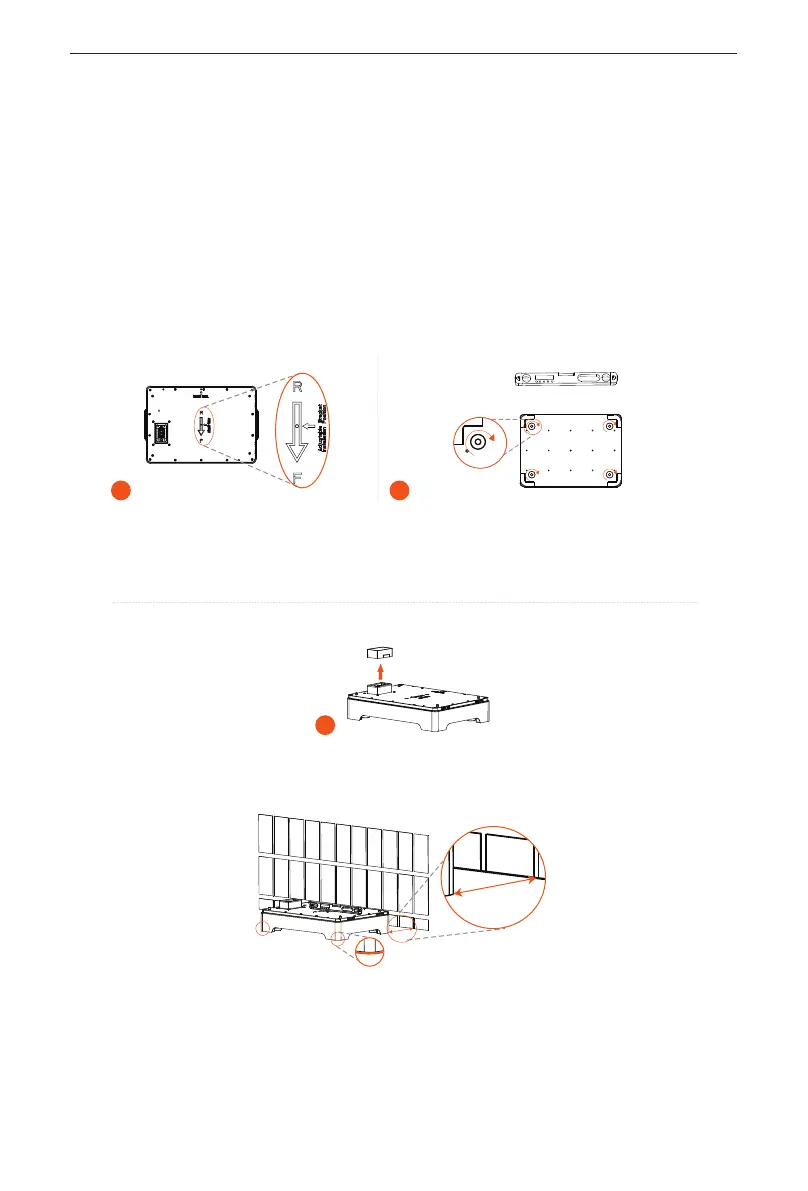

Step 1. Take out Base, and adjust it.
The letters “R“ and “F“ on the Base
indicate rear and front respectively.
The side with “R“ shall be against
the wall.
Turn clockwise, lower the Base;
Turn anti-clockwise, raise the Base.
A spirit level is recommended to use.
Rear
Front
1 2
3
Remove dust cover
Step 2. Locate Base, and accurately draw the location on both sides with a
marker. A spirit level is recommended to use.
60 mm
60 mm
Draw location
*Note: The distance between the Base and the wall can be about 20~200 mm,
but the recommended distance is 60 mm.
