6 Wiring
Wring with Series Box

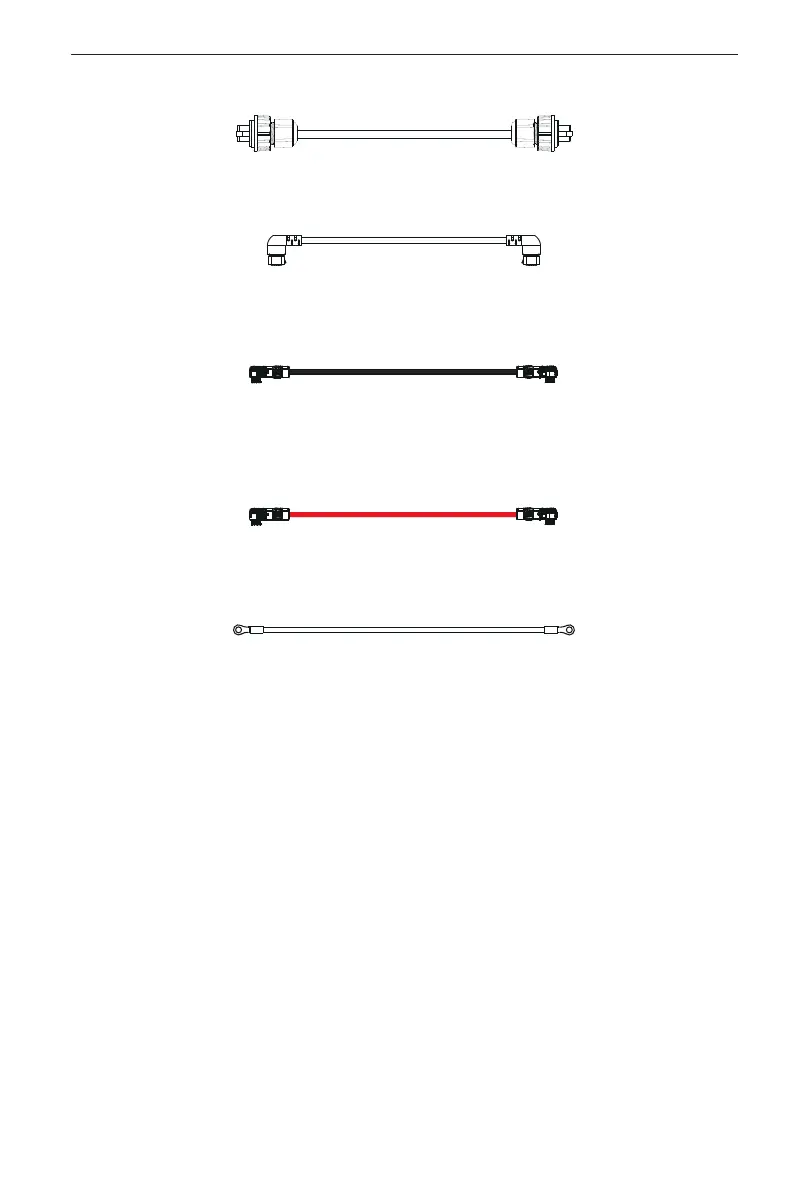

Communication cable: There are two terminals at both ends; one connects to
COM port of BMS, and the other connects to COM port of Series Box.
Heater cable: There are two terminals at both ends; one connects to HEAT port
of BMS, and the other connects to HEAT port of Series Box.
Power cable (black): There are two terminals with the same function at both
ends; one connects to BAT- of BMS, and the other connects to BAT- of Series
Box.
Power cable (red): here are two terminals with the same function at both ends;
one connects to BAT+ of BMS, and the other connects to BAT+ of Series Box.
Grounding cable: There are two terminals at both ends; one connects to a
grounding port of BMS, and the other connects to the grounding port of Series
Box.
