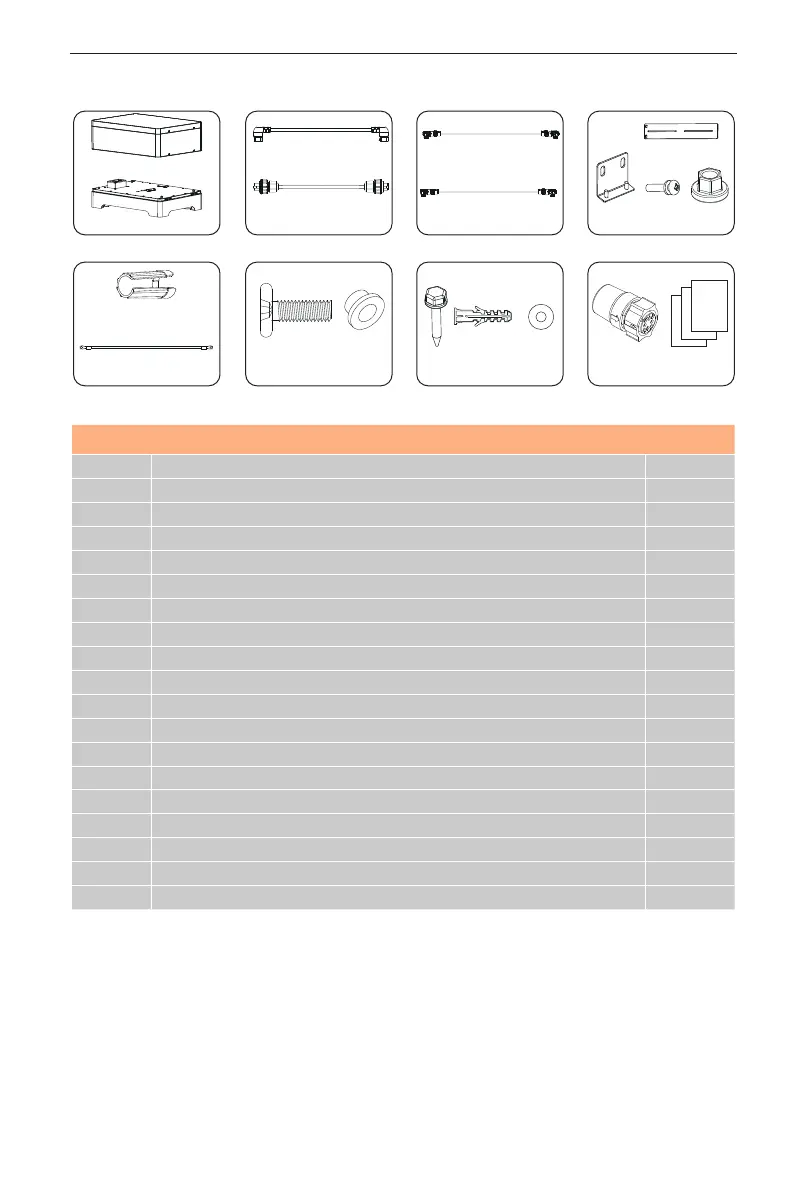

4 Preparation before Installation
Series Box
A2
D2
G2
C2
E2
F2
H2
I2
B2
J2
K2
M2
O2
P2 R2Q2
L2
S2
N2
Accessories included are shown as follows:
Item No. Description Quantity
A2 Series Box 1
B2 Base 1
C2 Heater Cable (HEAT port) 1
D2 Communication Cable (COM port) 1
E2 Power Cable (Black) 1
F2 Power Cable (Red) 1
G2 “L” Bracket 1
H2 Adjustable Bracket 1
I2 M4x10 Phillips-head Screw 2
J2 M6 Flange Nut 2
K2 Rotation Wrench 1
L2 Grounding Cable 1
M2 M4x14 Phillips-head Screw 4
N2 Gasket 4
O2 Tapping Screw 2
P2 Expansion Bolt 2
Q2 Washer 2
R2 Short-circuit Plug
(It will be installed on the HEAT port before delivery)
1
S2 Document 1
*Note:
■
If the battery module purchased excesses 10 sets (including 10), these battery
modules should be installed in two groups, and the “Series Box” should be
installed to connect two groups in series.
■
If the battery module purchased is less than 9 sets (including 9), these battery
modules may be installed in one or two groups. In case of two groups, the
“Series Box” is recommended to install.
■
Additionally, the above accessories kit for “Series Box” needs to be purchased
by customers themselves.
