5 Equipment Installation

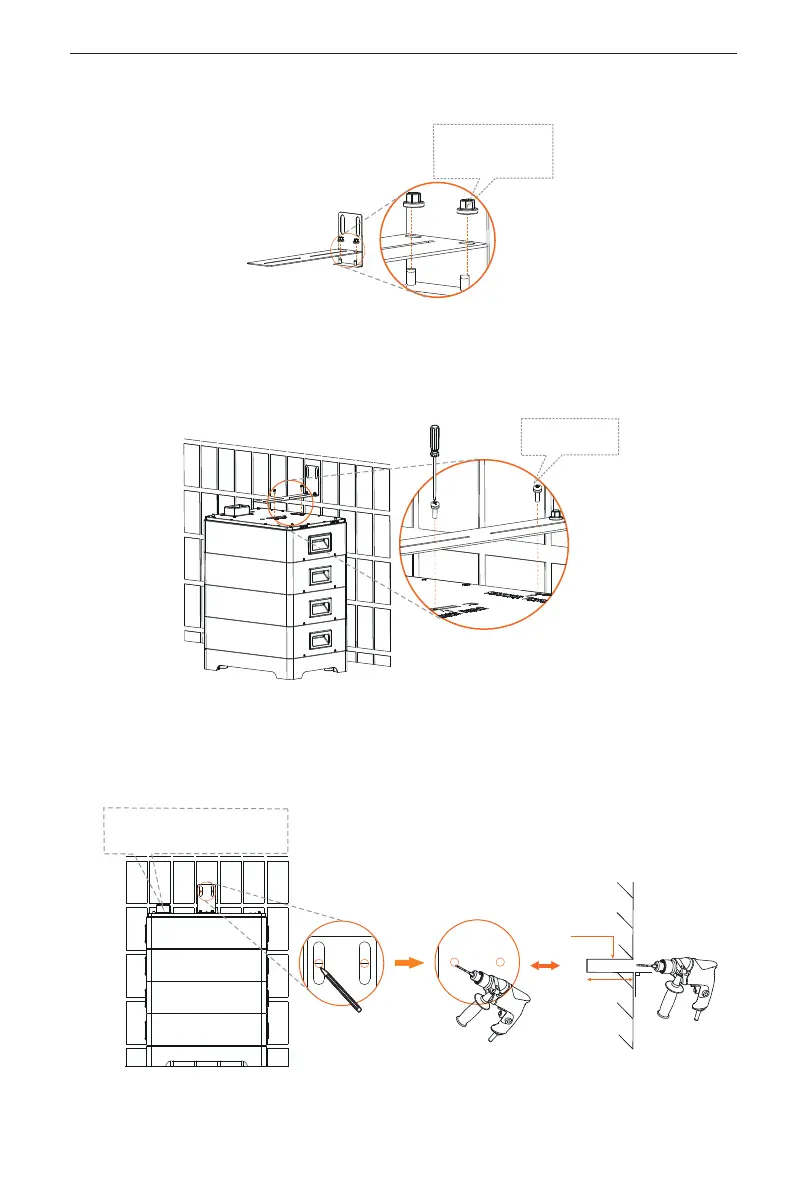

Step 6. Join Adjustable bracket and “L” bracket with M6 Flange nuts (× 2).
Attach M6
Flange nuts
but not tighten
Step 7. Secure the assembled bracket on the battery module and wall.
Attach the assembled bracket on the battery module with M4x10
Phillips-head screws (× 2), but not tighten.
Not tighten
M4x10
Move the assembled bracket to the wall;
Circle along the inner ring of holes;
Remove the assembled bracket, and drill the two holes (at least 50 mm)
by a Drill (Ø 10 mm).
90°
Ø10 mm
≥50 mm
Do not remove the dust
cover on the top battery
