6 Wiring
6.3.2 Wring with Series Box

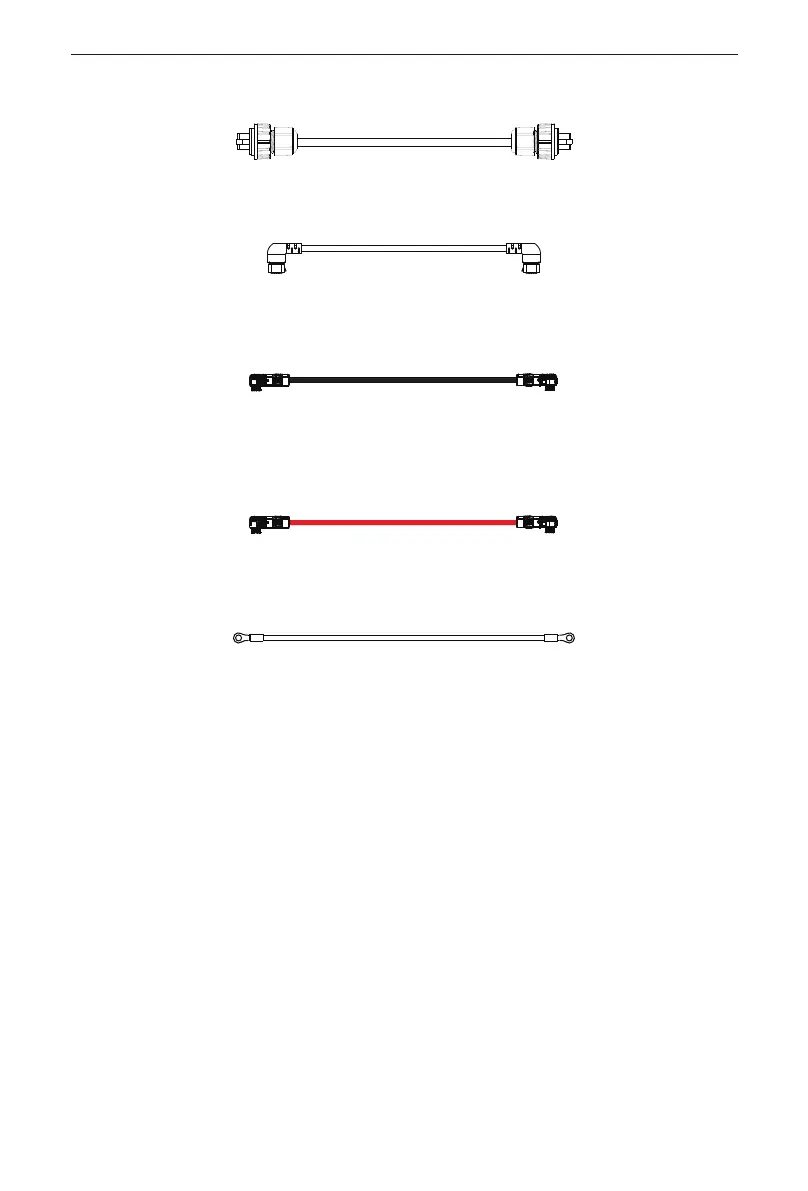

Communication cable: There are two terminals at both ends; one connects to
“COM” port of BMS, and the other connects to “COM” port of Series Box.
Heater cable: There are two terminals at both ends; one connects to “HEAT” port
of BMS, and the other connects to “HEAT” port of Series Box.
Power cable (black): There are two terminals with the same function at both
ends; one connects to “BAT-” of BMS, and the other connects to “BAT-” of Series
Box.
Power cable (red): There are two terminals with the same function at both ends;
one connects to “BAT+” of BMS, and the other connects to “BAT+” of Series Box.
Grounding cable: There are two terminals at both ends; one connects to a
grounding port of BMS, and the other connects to the grounding port of Series
Box.
