6 Wiring

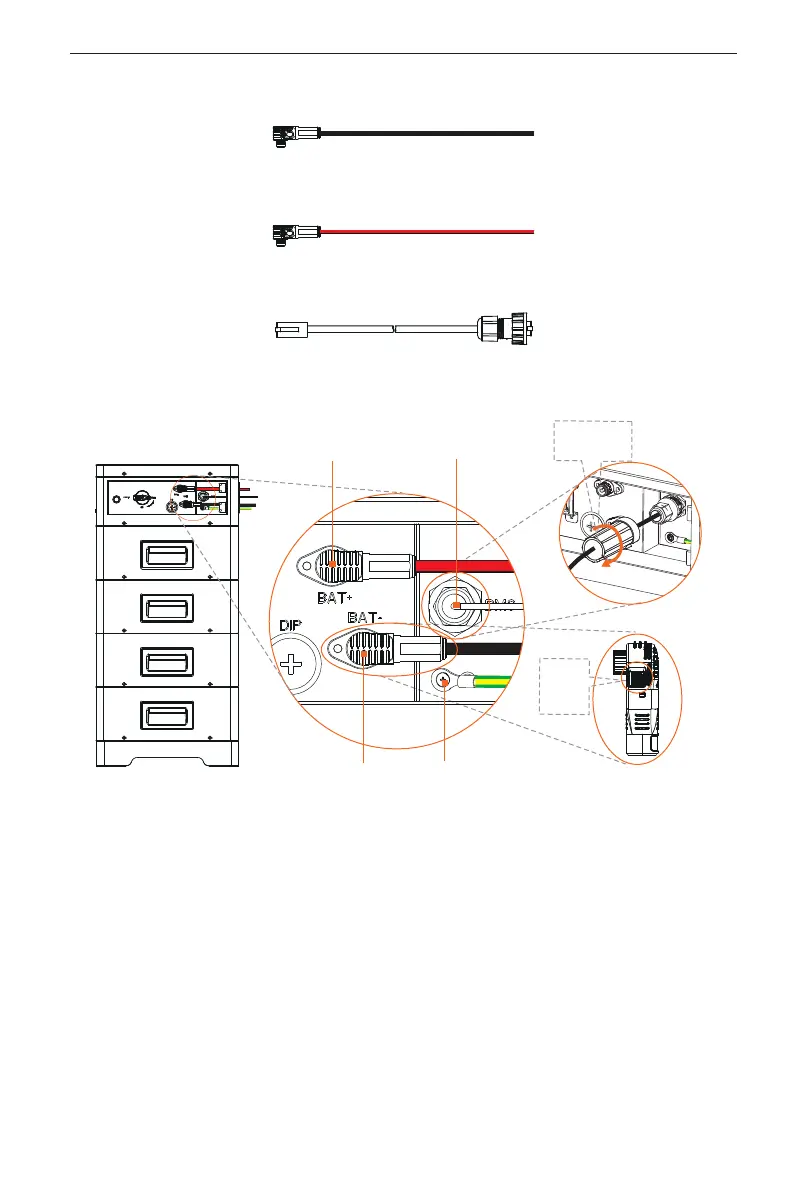

Right side of BMS (BMS to inverter)
Power cable (black): Connect BAT- of BMS to BAT- of inverter
Power cable (red): Connect BAT+ of BMS to BAT+ of inverter
Communication cable: Connect BMS port of BMS to BMS port of inverter
S
WITCH
DISCONNECTOR
Power cable (red)
Communication
cable
Rotation
wrench
Lock
button
Power cable
(black)
Grounding
cable
This type of terminal is
available on both power
cable.
*Note:
■
Press and hold the lock button while unplugging the power cable, or it cannot
be pulled out.
■
Use the rotation wrench to tighten the communication cable, and remove it
after tightening.
