34

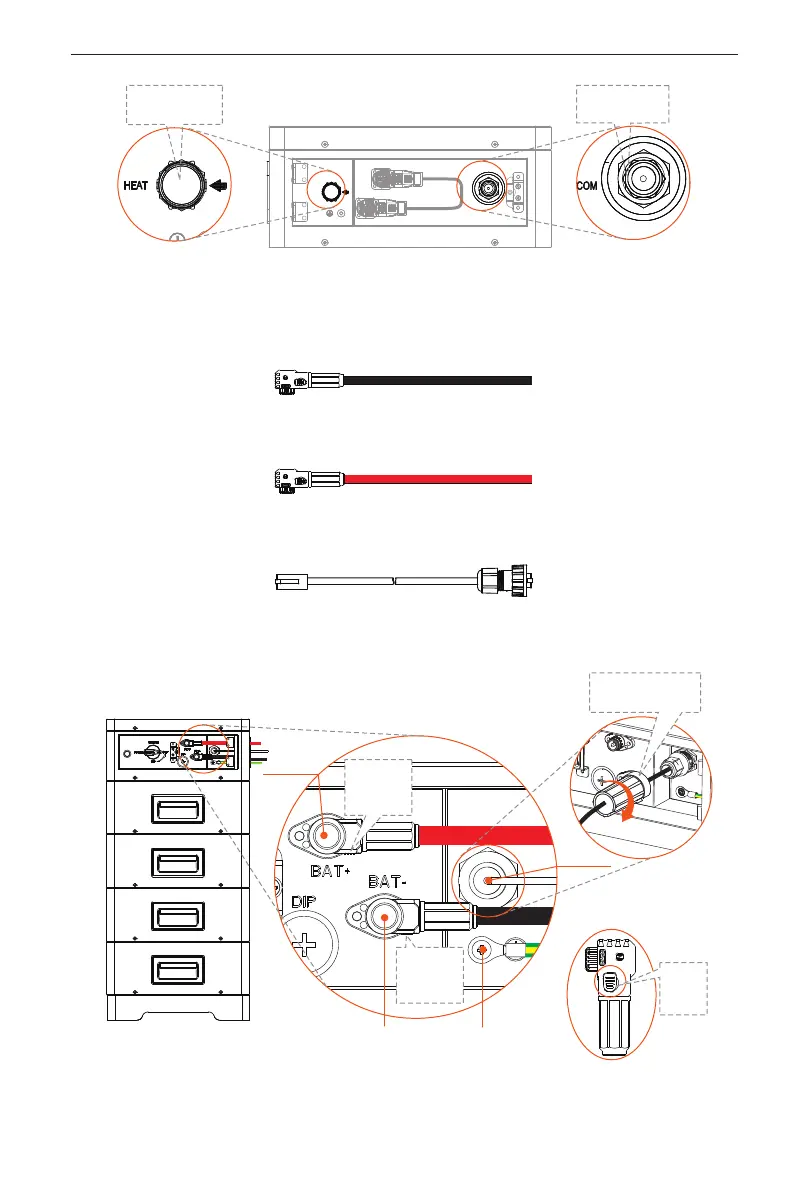

6 Wiring
HEAT
COM
Short-circuit
plug
Waterproof
cap
*Note: In case of one tower, a waterproof cap shall be put on the unconnected
“COM” port, as well as a short-circuit plug on the unconnected “HEAT” port.
Right side of BMS (BMS to inverter)
Power cable (black): Connect “BAT-” of BMS to “BAT-” of inverter
Power cable (red): Connect “BAT+” of BMS to “BAT+” of inverter
Communication cable: Connect “BMS” port of BMS to “BMS” port of inverter
White
lock
button
Power cable (black)
Grounding cable
Rotation wrench
Communication cable
Power
cable (red)
Here is the
white lock
button
Regarding the white lock
button, see the figure below.
Here is the
white lock
button
White
lock
button
