32
6 Wiring
6.3 Cable Connection

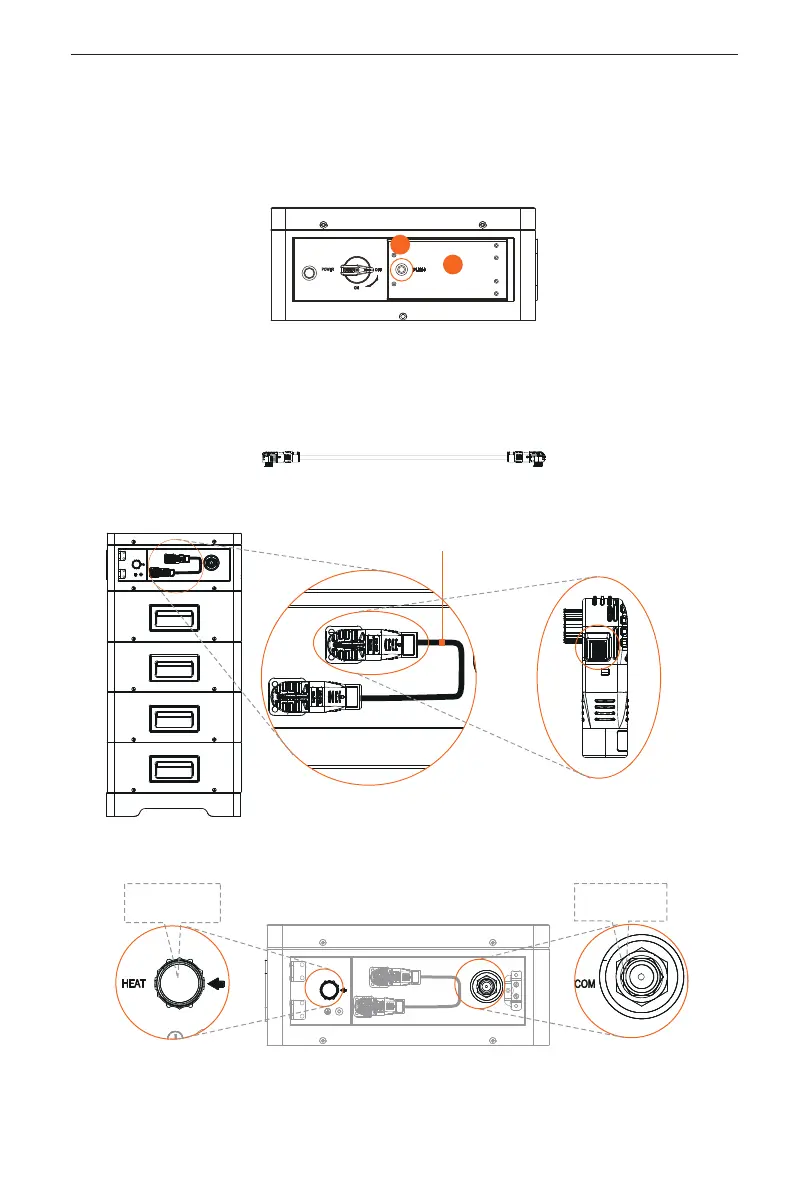

Before wiring, please:
Step 1. Remove the screws on both covers of the BMS,
Step 2. Press the cover;
SWITCH
DISCONNECTOR
1
2
*Note: Remove the silicone sleeves from the ports of BMS and Series Box (if any).
6.3.1 Wiring without Series Box
Left side of BMS
Short power cable: Connect “B+“ and “B-“
HEAT
COM
HEAT
COM
Short power cable
Lock
button
There are two terminals
at both ends
Short-circuit
plug
Waterproof
cap
HEAT
COM
*Note: In case of one group, a waterproof cap shall be put on the unconnected
COM port, as well as a short-circuit plug on the unconnected HEAT port.
