6 Wiring

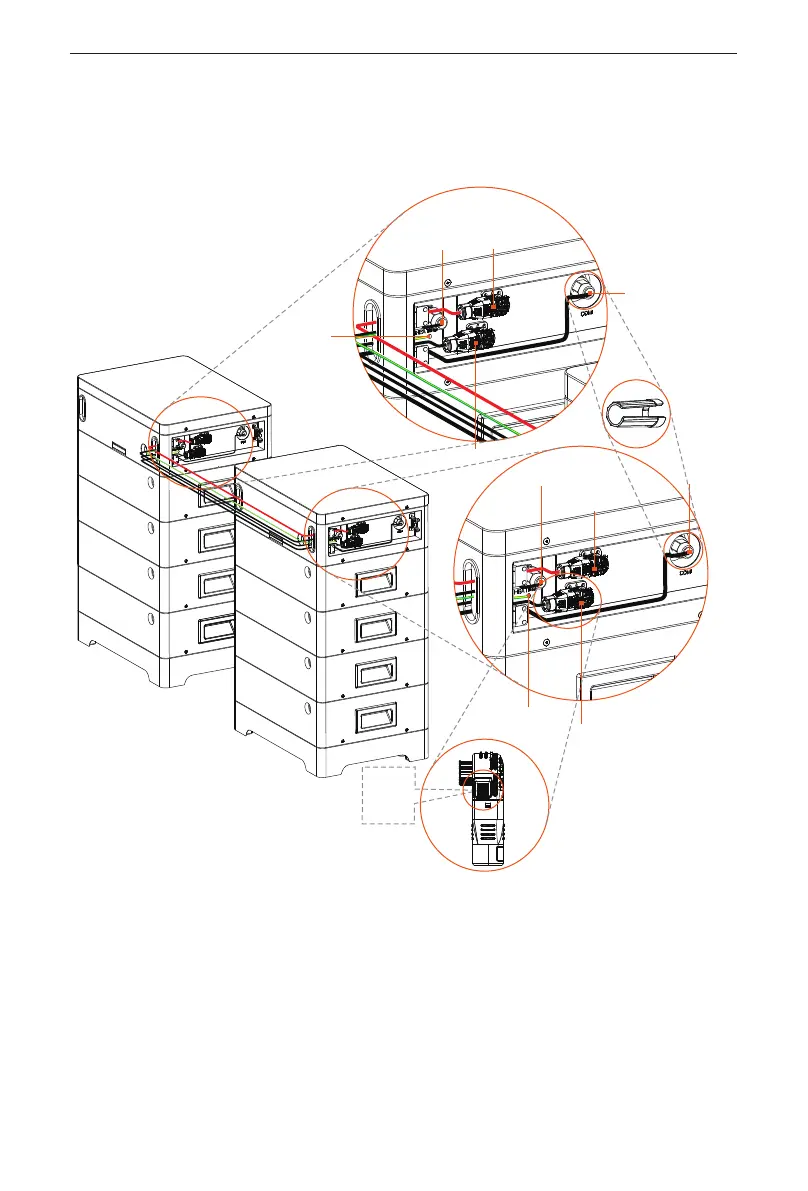

Wiring between BMS and Series Box
*Note: Please remove the labels attached to both cover plates before conducting
wiring.
Heater cable
(HEAT port)
Power
cable (red)
Communication
cable (COM port)
Grounding
cable
Rotation
wrench
Power cable (black)
Heater cable (HEAT port)
Power cable (red)
Communication
cable (COM port)
Grounding cable
Power cable (black)
BMS
Series Box
Lock
button
*Note: A corrugated pipe with an inner diameter of over 45 mm is recommended
for use to keep cable insulation in place and avoid potential damages.
