20
21
4. Installation
4. Installation

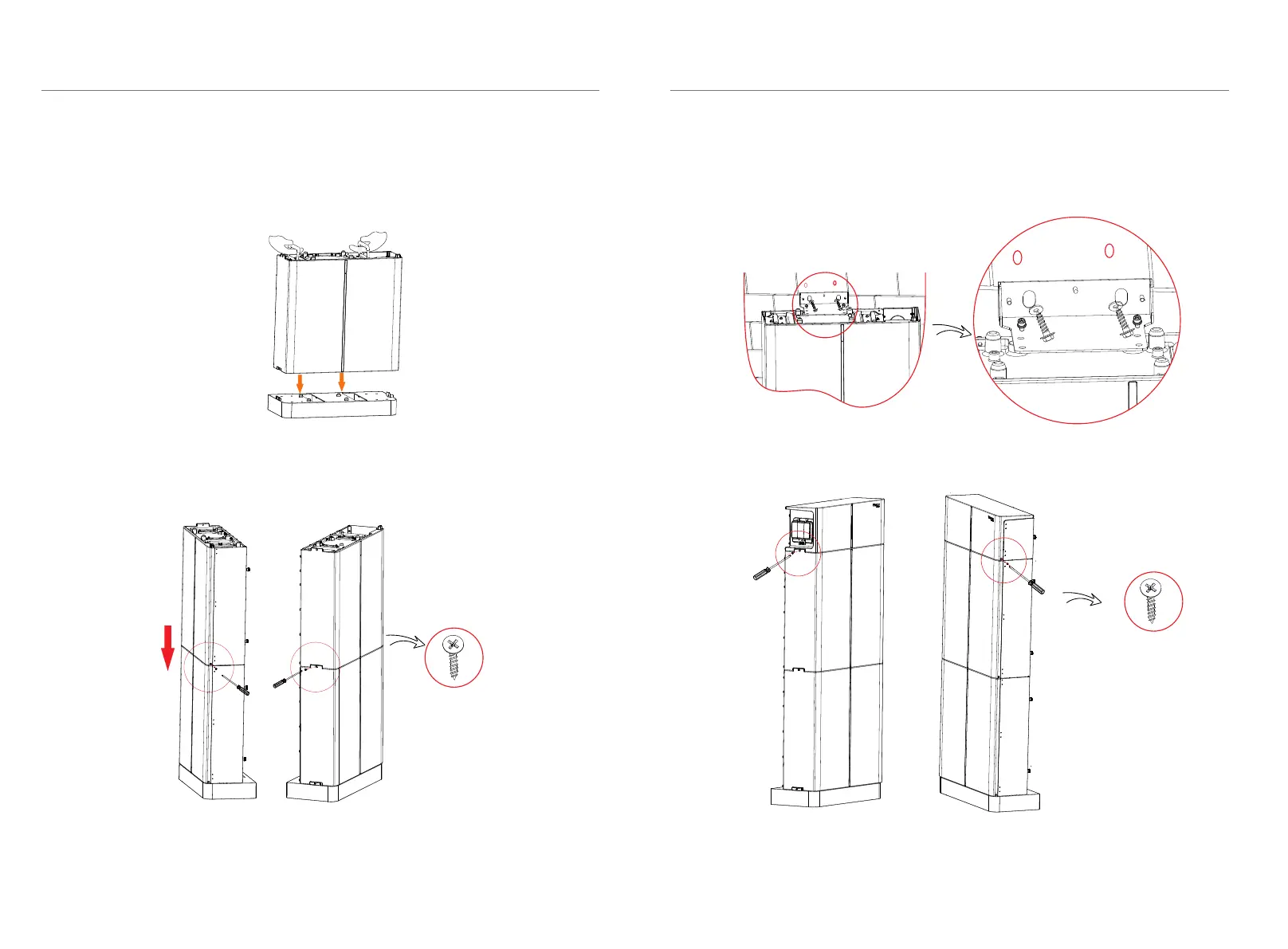

Place the battery module on top of base mounting.
Step 3: Match the battery with base mounting
Take two battery s as an examplemodule
Place the second one on top of the module and two sides are locked with
ST3.9*16 screws.
Step 4: Match the BMS to the battery modules
Fix the battery module and wall bracket with expansion screws. (I,N and K)
One battery module or connected to the BMS, need to be installed a
bracket to fix.
Place the BMS on top of the module and two sides are locked with
ST3.9*16 screws.
Ÿ
Ÿ
Ÿ
Ÿ
