Ÿ Section view of HV11550
3. Product Introduction
3. Product Introduction
8
9

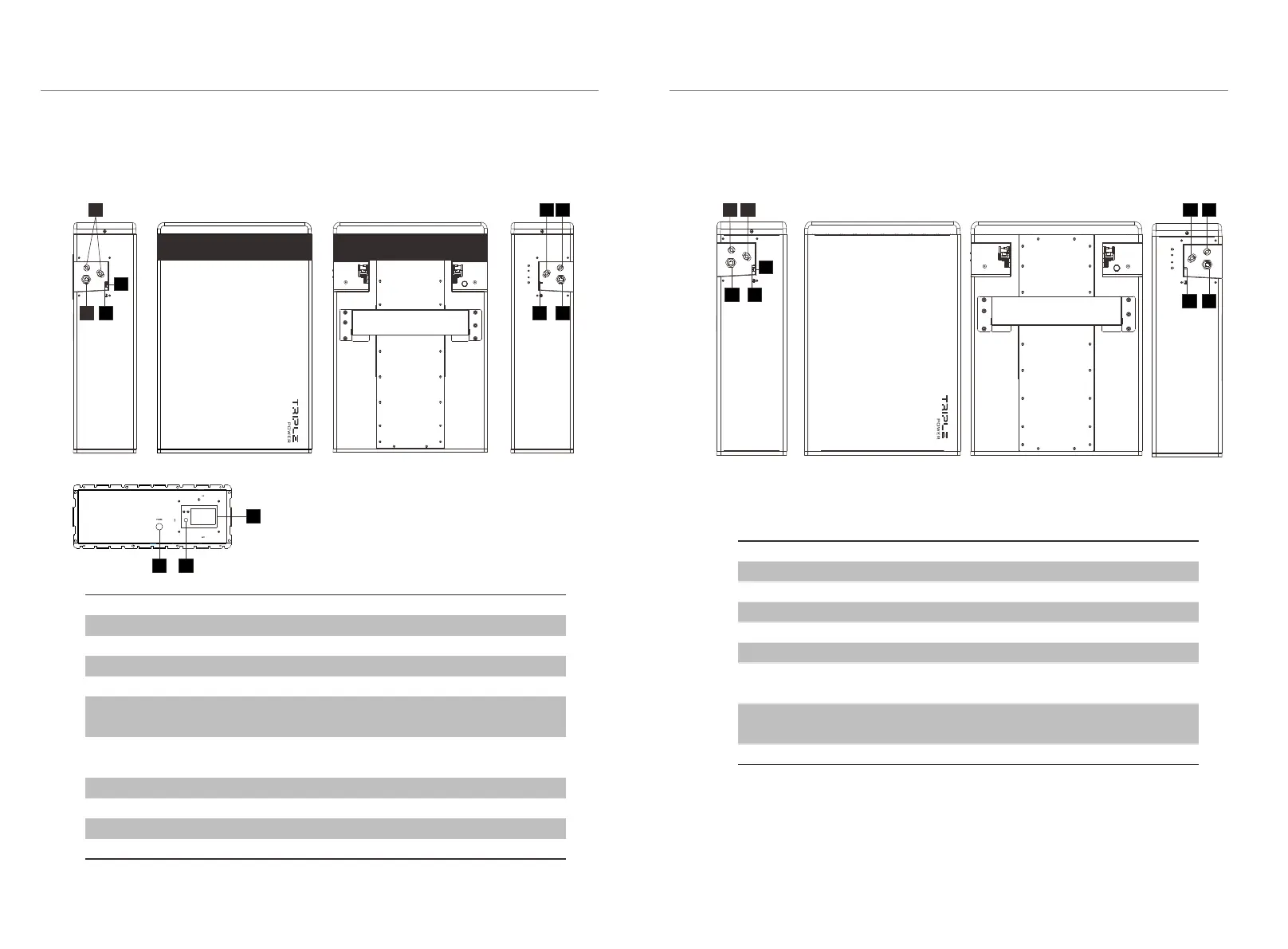

3.1.2 Appearance
Ÿ Section view of T-BAT H 5.8
Object Mark
Description
Ⅰ
Ⅱ
Ⅲ
Ⅳ
BAT+/BAT-
CAN
GND
/
Charge/Discharge Connectors
CAN Connector
GND
Air Valve
Object Mark
Description
Ⅰ’
Ⅱ’
Ⅲ’
Ⅳ’
Ⅴ’
XPLUG
+
RS485 I
GND
/
Ⅰ
Ⅱ Ⅲ
Ⅳ
Ⅴ Ⅵ
Ⅶ
Ⅷ
Power Connector’ to YPLUG of upper battery pack
RS485 Connector to RS485 II of upper battery pack
GND
RS485 Connector to RS485 I of next battery pack
Power Connector’ to XPLUG of next battery pack, or
to “-” of the same pack
Air valve
Ⅸ
BAT+BAT-
CAN
-
YPLUG
RS485 II
Ⅹ
Ⅲ
+
XPLUG
RS485 I
-
YPLUG
RS485 II
Ⅰ’
Ⅱ’
Ⅲ’
Ⅳ’
Ⅴ’
Ⅵ’
Ⅶ’
Ⅷ’Ⅳ’
Power Connector to “-” of upper battery pack
Power Connector to + of next battery pack, or to YPLUG
of the same pack
RS485 Connector to RS485 I of next battery pack
Power Button
DIP Switch
Circuit Breaker
Ⅴ
Ⅵ
Ⅶ
Ⅷ
Ⅸ
Ⅹ
-
YPLUG
RS485 II
POWER
DIP
ON/OFF
Power Connector’ to XPLUG of next battery pack,
or to “-” of the same pack
Power Connector to + of next battery pack, or to
YPLUG of the same pack
Ⅵ’
Ⅶ’
Ⅷ’
-
YPLUG
RS485 II
