18
español english français portuguese deutsch italiano
4. Technical information
Model No Voltage Frequency Power
SS-21440 220-240V 50Hz 45W

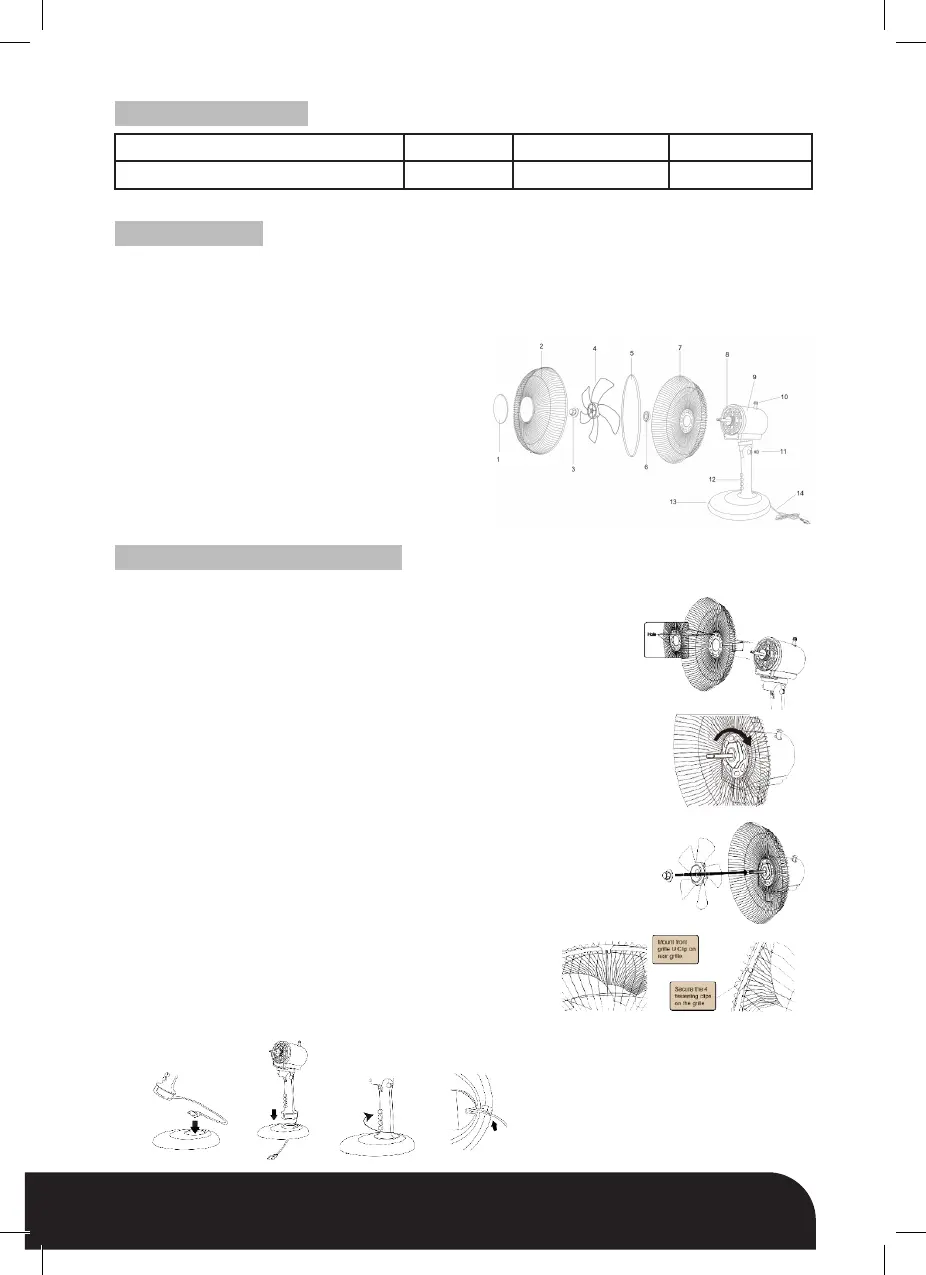

5. Parts of the fan
1. Protective cover
2. Front grille
3. Fan blade retaining nut
4. fan blade
5. Grille ring
6. Rear grille nut
7. Rear grille
8. Motor shaft
9. Motor housing
10. Oscillation knob
11. Pivot screw
12. Control Panel
13. Base plate
14. Power cord
6. Instructions for assembly and use
Grille & Blade Assembly (#1 - #9):
• Set the rear grille (#7) to the motor housing (#9) with the handle facing up.
• Secure together by screwing the plastic nut (#6) clockwise onto the motor housing
(#9).
• Install the fan blade (#4) on the motor shaft (#8) with the cutouts on the blade tted to
the motor shaft.
• Screw the plastic spinner (#3) on the motor shaft (#8) to hold the fan blade (#4) in
place by rotating counterclockwise.
• Install the front grille (#2) onto the rear grille (#7). Be sure the clasps and hooks on the
grilles are aligned.
• Fasten it rmly with 4 clips available around the grille and tighten up the screw given
on the bottom of the fan grilles.
• Pass the power cord through the base plate.
• Insert the motor assemble on to the base plate.
• Twist it clockwise to lock.
• Insert the power cable into the base plate catch at the rear of base
plate.
Bottom View
