4. Technical information
Model No Voltage Frequency Power
SS-21435 220-240V 50Hz 18W

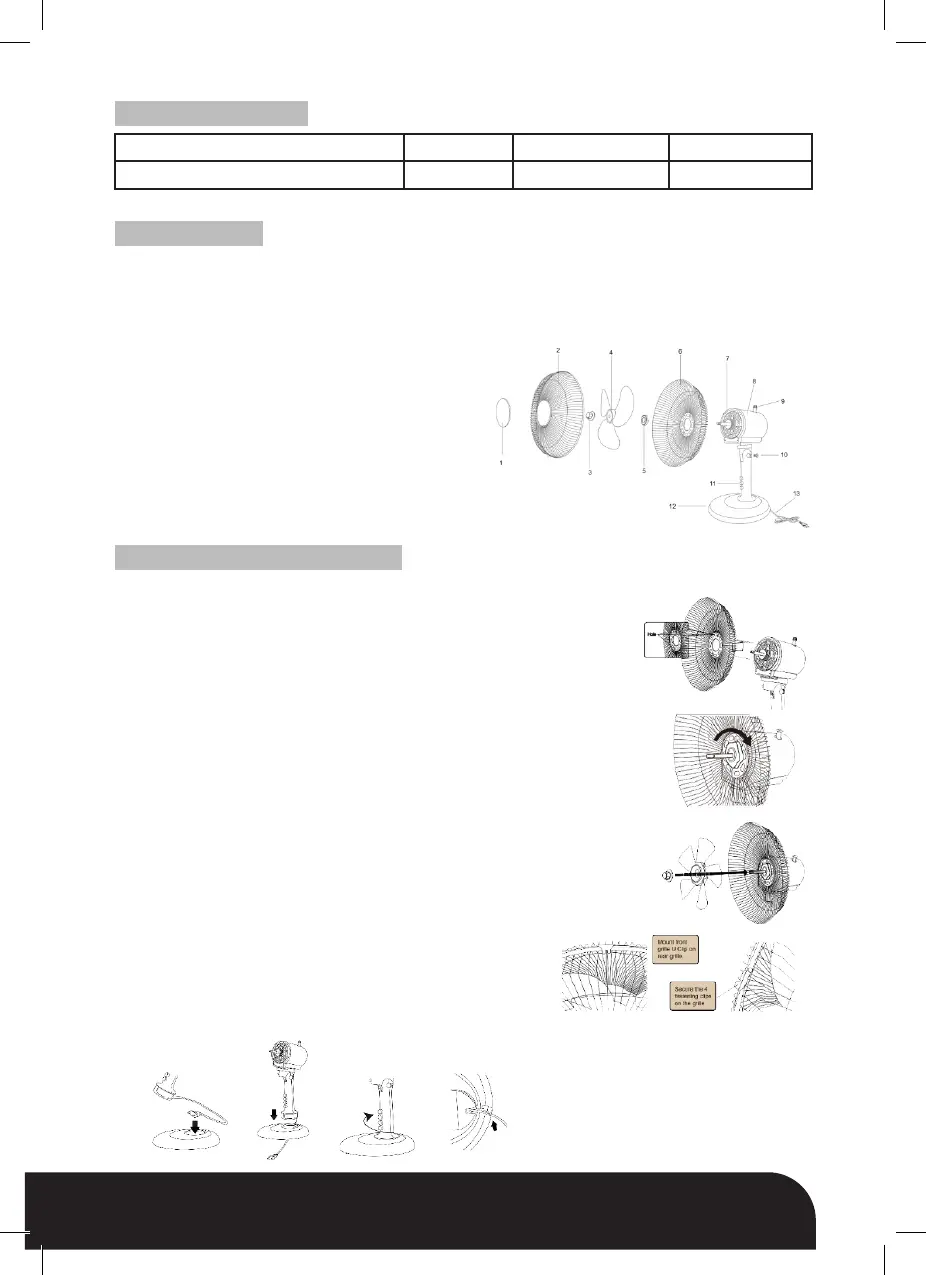

5. Parts of the fan
1. Protective cover
2. Front grille
3. Fan blade retaining nut
4. fan blade
5. Rear grille nut
6. Rear grille
7. Motor shaft
8. Motor housing
9. Oscillation knob
10. Pivot screw
11. Control Panel
12. Base plate
13. Power cord
6. Instructions for assembly and use
Grille & Blade Assembly (#1 - #8):
• Set the rear grille (#6) to the motor housing (#8) with the handle facing up.
• Secure together by screwing the plastic nut (#5)
clockwise onto the motor housing (#8).
• Install the fan blade (#4) on the motor shaft (#7)
with the cut outs on the blade tted to the motor shaft.
• Screw the plastic spinner (#3) on the motor shaft (#7)
to hold the fan blade (#4) in place by rotating counter-clockwise.
• Install the front grille (#2) onto the rear grille (#6).
Be sure the clasps and hooks on the grilles are aligned.
• Fasten it rmly with 4 clips available around the grille and tighten
up the screw given on the bottom of the fan grilles.
• Pass the power cord through the base plate.
• Insert the motor assemble on to the base plate.
• Twist it clockwise to lock.
• Insert the power cable into the base plate catch at the rear
of base plate.
Bottom View
