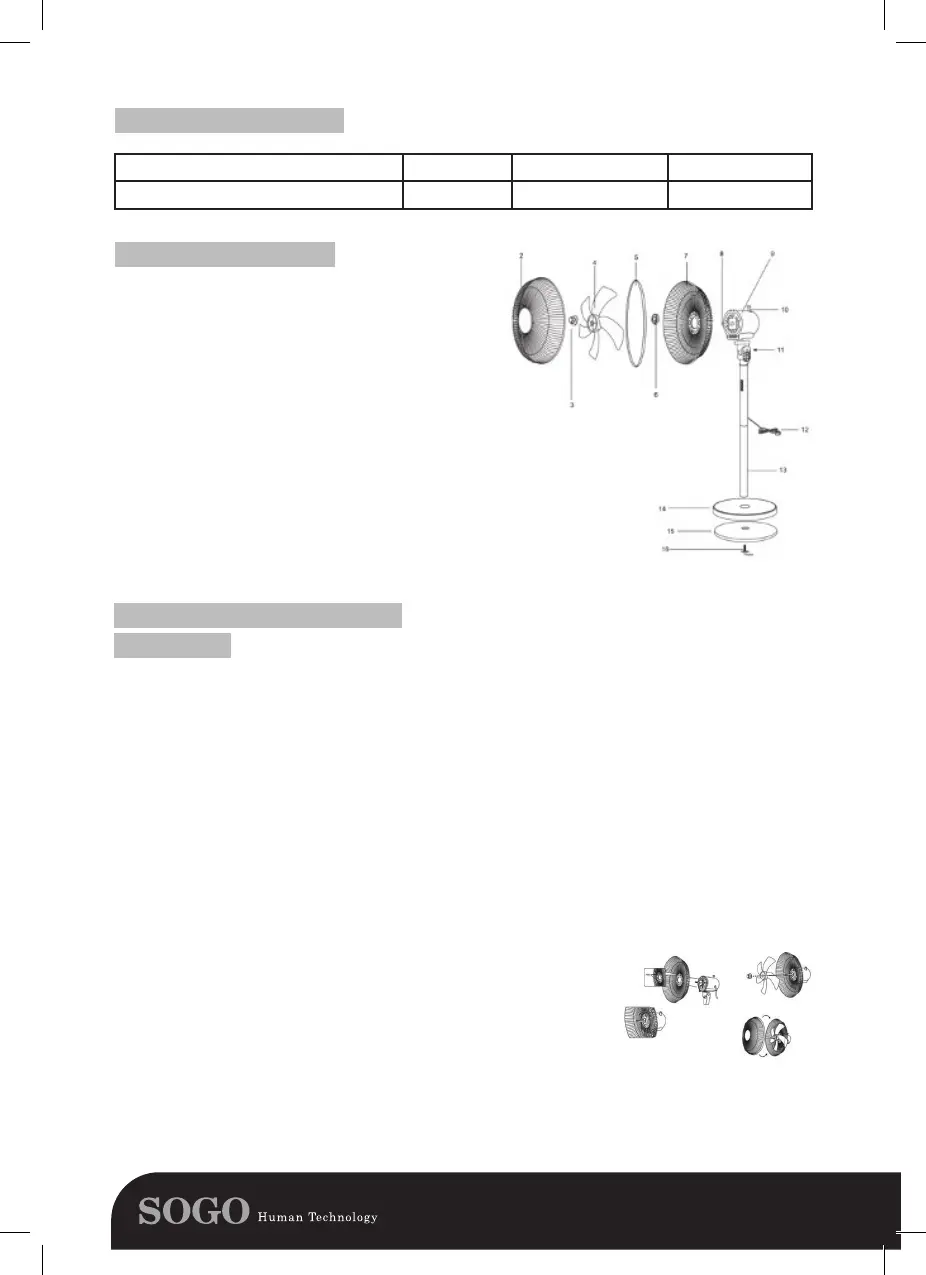

Je bekijkt pagina 17 van 60
español english français portuguese deutsch italiano
17
4. Technical information
Model No Voltage Frequency Power
SS-21270 220-240V 50Hz 50W
5. Parts of the fan
1. Grille Cover
2. Front Grille
3. Blade retaining nut
4. Fan Blade
5. Grille ring
6. Grille retaining nut
7. Rear Grille
8. Motor shaft
9. Motor housing
10. Oscillation knob
11. Pivot screw
12. Power cord
13. Outer pipe
14. Base plate
15. Base weight
16. L-screw
6. Instructions for assembly and use
How to install
How to install
Check before installation:
- Unpack the product to check if all the accessories are available.
- Check the voltage shown in the nameplate to see if it accords with the local situation.
- Check the motor if it can move smoothly.
Assembly
Column Assembly Instructions
Take the base plate (#14), base weight (#15) and column parts (#13) from the packing box and L screw (#16). Fix the
column on the base plate using the L screw (#16). Unscrew the height adjusting knob. Mount the column ornament, and
move to the desired height.
Note: The column of this fan is splitted into two different size of tubes to adjust the fan height to 90cm or 125cm.
Grille & Blade Assembly (#1 - #9):
1. Set the rear grille (#7) to the motor housing (#9) with the handle facing up.
2. Secure together by screwing the grille retaining nut (#6) clockwise onto the
motor housing (#9).
3. Install the fan blade (#4) on the motor shaft (#8) with the cut outs on the blade
tted to the motor shaft.
4. Screw the blade retaining nut (#3) on the motor shaft (#8) to hold the fan blade
(#4) in place by rotating counterclockwise.
5. Install the front grille (#2) onto the rear grille (#7). Be sure the clasps and hooks on the grilles are aligned.
6. Close all the rim clasps to secure the grilles (#2 and #7)
7. Mount the grill cover (#1) to the front grille.
