4x2 Multiviewer KVM switch 6
Installation (continued)
EDID Learn:
The QuadKVMPro has 3 preset EDIDs that can be triggered from the front panel. The EDIDs are
labeled as follows:
IPG - DVI (EDID for DVI)
IPG - HDMI (EDID for HDMI without Audio Support)
IPG - HDMI+ (EDID for HDMI with Audio Support)

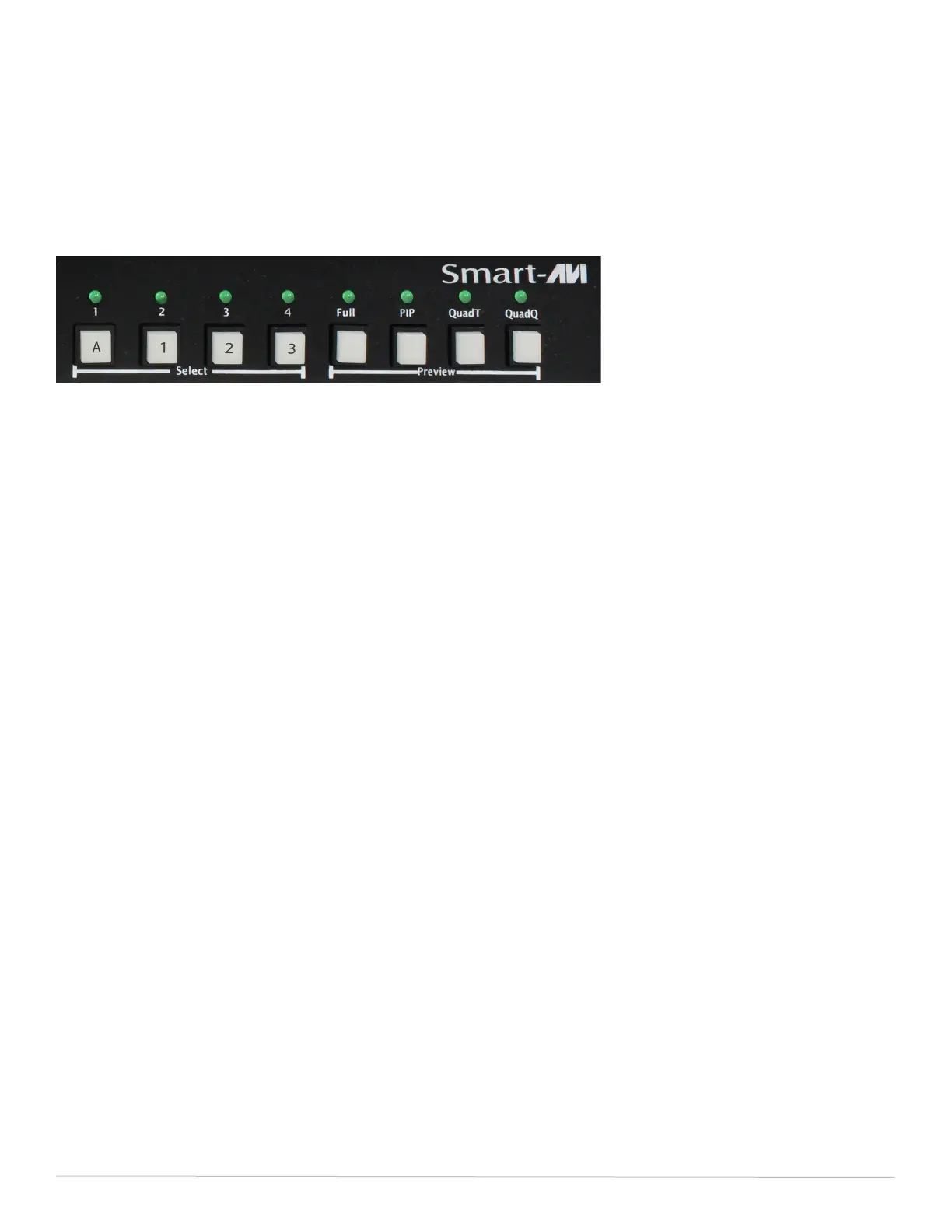

The EDIDs can be invoked using the following commands on the front panel:
Pressing buons A and then 1 for 2 seconds will invoke IPG - DVI
Pressing buons A and then 2 for 2 seconds will invoke IPG - HDMI
Pressing buons A and then 3 for 2 seconds will invoke IPG - HDMI+
System operation
There are four ways to control the QuadKVMpro: Keyboard Hotkeys, RS-232 Serial Commands, OSD Menu,
and Front Panel Buttons. All modes of control will allow the user the set their desired configurations.
The QuadKVMPro may also be controlled via RS-232 commands. To use these commands, you must use
HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate
115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None. Once you have connected to the
QuadKVMPro via Serial, you will see the QuadKVMPro information when the device starts up.
