8-Port KM Switch with USB 2.0 Support and Audio 5

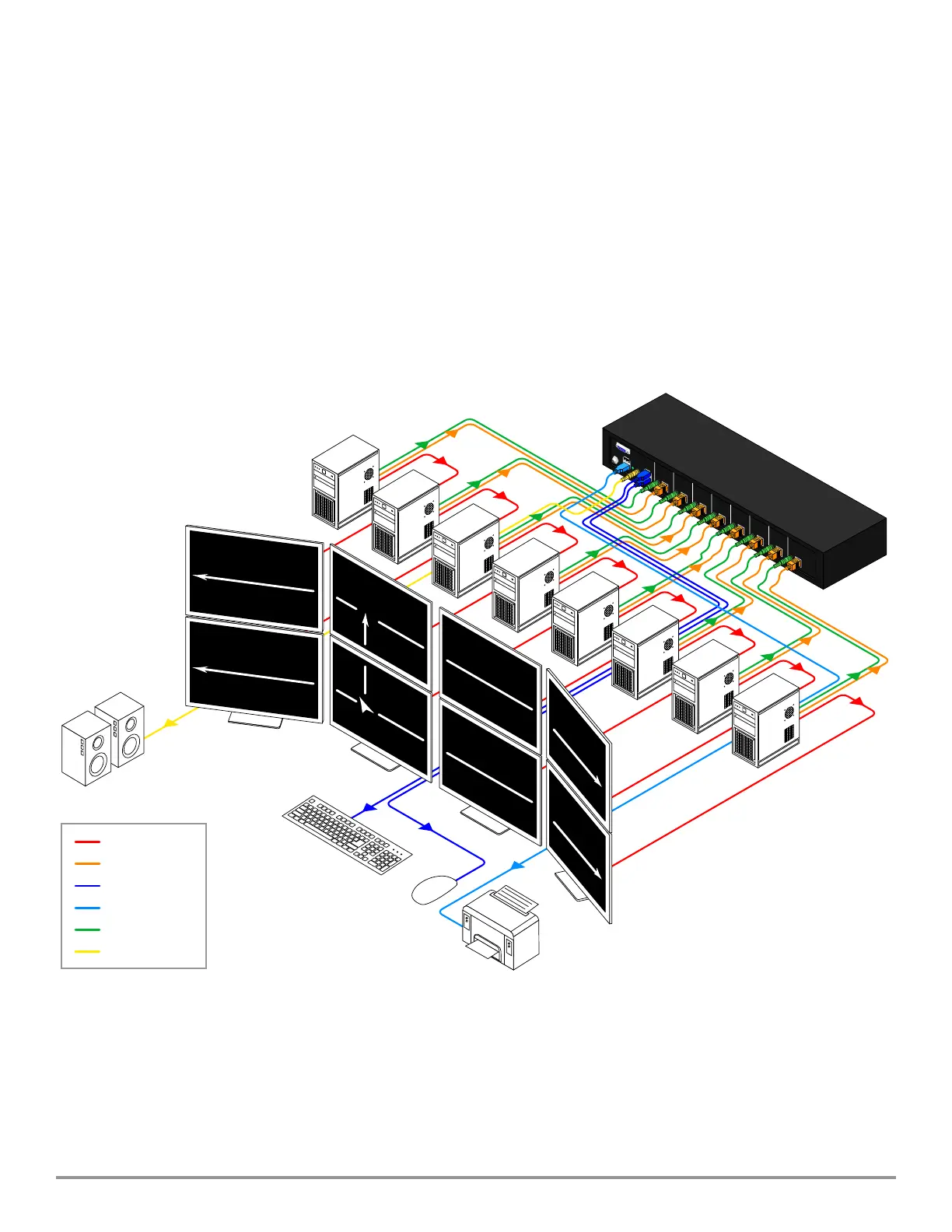

INSTALLATION
1. Ensure that power is turned o or disconnected from the unit and the computers.
2. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respecve
USB ports of the unit.
3. Oponally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the
computers to the AUDIO IN ports of the unit.
4. Connect a USB keyboard and mouse in the two USB console ports.
5. Oponally connect stereo speakers to the AUDIO OUT port of the unit.
6. Finally, power on the KM by connecng a 12VDC power supply to the power connector, and then
turn on all the computers.
Note: You can connect up to 8 computers to the 8 port KM.
12VDC2.0A
USB
K/M
AUDIO
AUDIO
USB
IN-8
AUDIO
USB
IN-7
AUDIO
USB
IN-6
AUDIO
USB
IN-5
AUDIO
USB
IN-8
AUDIO
USB
IN-3
AUDIO
USB
IN-2
AUDIO
USB
IN-1
RS232
VIDEO
USB IN
USB K/M OUT
USB 2.0 OUT
AUDIO IN
AUDIO OUT
12VDC2.0A
USB
RS232
K/M
AUDIO
AUDIO
USB
OUT
AUDIO
USB
AUDIO
USB
AUDIO
USB
VIDEO
USB IN
USB K/M OUT
USB 2.0 OUT
AUDIO IN
AUDIO OUT
