Advanced 2/4/8/16 DVI-I KVM Switch 5
Single-Head Units:
1. Ensure that power is turned o or disconnected from the unit and the computers.
2. Use a DVI cable to connect the DVI output port from each computer to the
corresponding DVI-I IN ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the
respecve USB ports of the unit.
4. Oponally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output
of the computers to the AUDIO IN ports of the unit.
5. Connect a monitor to the DVI-I OUT console port of the unit using a DVI cable.
6. Connect a USB keyboard and mouse in the two USB console ports.
7. Oponally connect stereo speakers to the AUDIO OUT port of the unit.
8. Finally, power on the KVM by connecng a 12VDC power supply to the power
connector, and then turn on all the computers.
Note: You can connect up to 2 computers to the 2 port KVM and up to 4 computers to the 4 port
KVM.

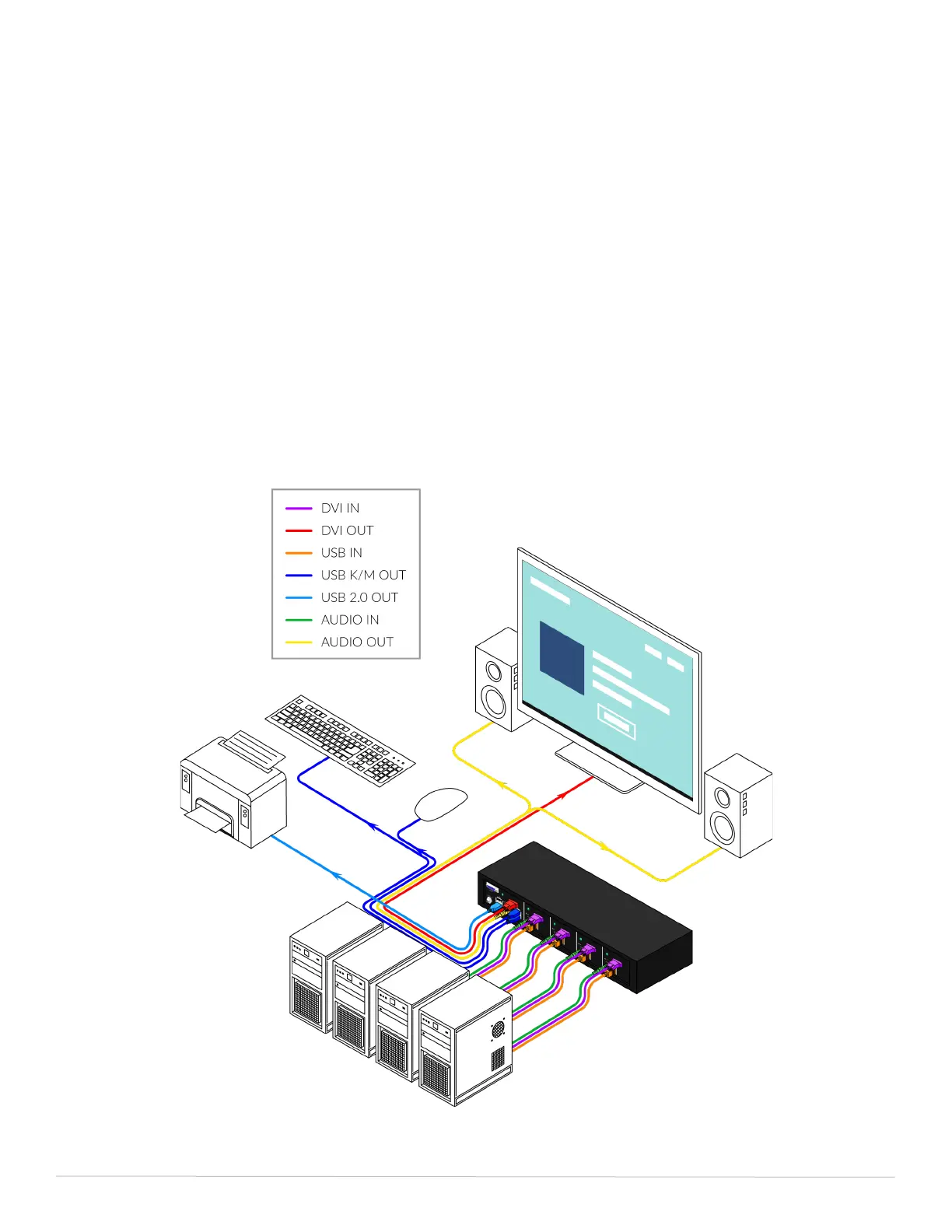

installation
SM-DVN-4S Shown
