16

Fine Adjustments

NOTICE:

Be sure that the micrometer-ne adjustment system is engaged before making ne

adjustments. Test it by turning the ne adjustment dial (C) clockwise and counter-clockwise to

see if the bit lowers and raises.

The depth indicator ring (D) located on the ne adjustment dial is marked in 1/256- inch

increments. Turning the ne adjustment dial counterclockwise 180° (1/2 turn), lowers the

cutter bit 1/32 inch. One full turn counterclockwise 360° (zero “0” to zero “0”) lowers the bit

1/16 inch.

NOTICE:

The depth-indictor ring (D) may be reset to zero “0” without moving the ne

adjustment dial. This allows the user to begin adjustments from any reference point desired.

NOTICE:

Making a single deep cut is never advisable. Smaller diameter cutter bits are easily

broken by too much side thrust and torque. Larger cutter bits will cause a rough cut and be difcult

to guide and control. For these reasons, do not exceed 1/8 in. depth of cut in a single pass.

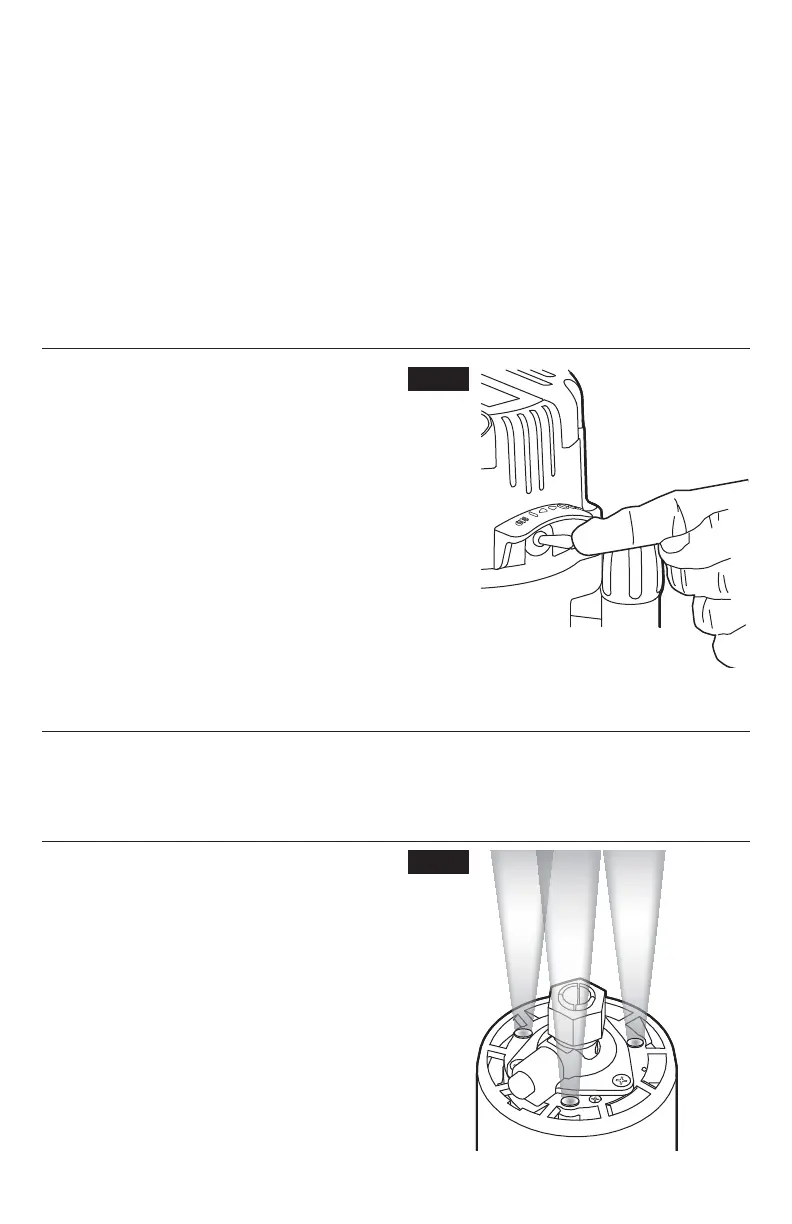

Toggle “On/Off” Switch

Use the toggle switch located on the top cap of

the motor housing to turn the router “ON” and

“OFF”.

The left side of the toggle switch hood (as you

face it) is marked “I” for “On” and the right side

(as you face it) is marked “O” for “Off”.

To turn the motor “ON”, push the toggle switch

to the left side marked “I”, or “On”. To turn the

motor “OFF” push the toggle switch to the right

side marked “O”, or “Off”.

Contact the workpiece with the router and

cutter bit only after the router has reached full

speed. Turn the router motor “OFF” and allow

the cutter bit to come to a complete stop before

removing the router and cutter bit from the workpiece.

Soft-Start Feature

The soft-start feature minimizes torque twist, customary in larger router motors, by limiting the

speed at which the motor starts. This increases the motor’s life.

LED Worklights (Fig. 7)

Your router motor has 3 built-in worklights

located around the collet/nut to provide high

visibility of workpiece when cutting. These

lights are always “On” when the toggle switch

is in the “On” position.

Fig. 6

Fig. 7
