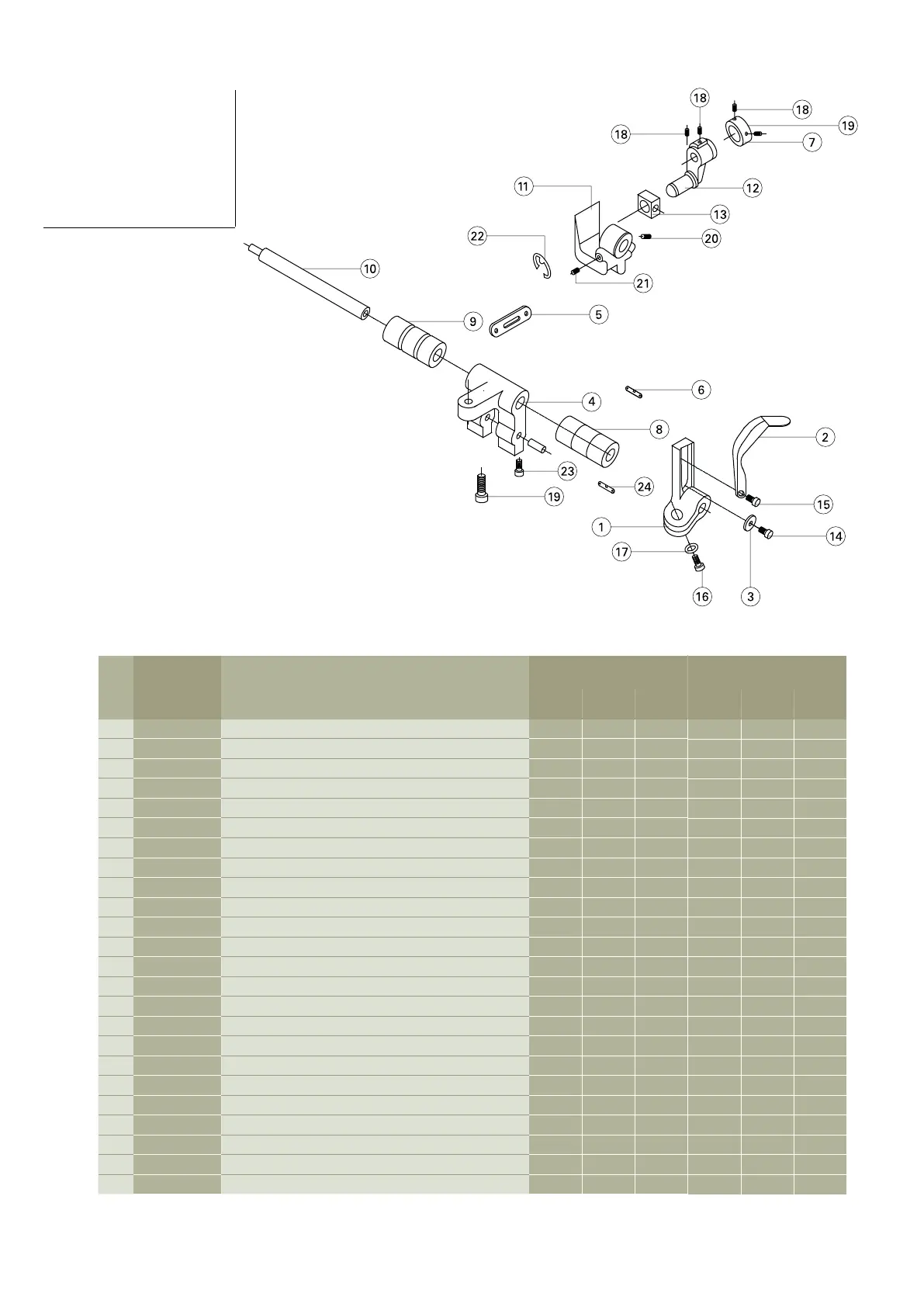

High Speed Overlock Machine | Instructions Manual and Parts List
6.9
Chain Stitch
Looper
Components (1)
1 20104011 Chain stitch looper shaft holder 001
2 20117010 Chain stitch looper 001
3 20128014 Washer 001
4 20104012 Chain stitch looper crank 001
5 20609017 Regulating plate 001
6 20126013 Regulating plate pin 002
7 20108001 Driving crank holder 001
8 20103013 Chain stitch looper shaft bushing (front) 001
9 20103014 001
10 20102009 001
11 20101021 Driving lever 001
12 20104013 Chain stitch looper driving crank 001
13 20109002 Chain stitch looper slide block 001
14 201S11003 Thread guide screw 001
15 201S11008 Chain stitch looper guide set screw 001
16 201S12007 Chain stitch looper holder set screw 001
17 20128021 Washer 001
18 201S12002 Screw 004
19 201S13003 Chain stitch looper crank screw 001
20 201S14002 Screw 001
21 201S30009 Screw 001
22 20129003 Snap ring 001
23 201S12005 Screw 001
24 20126022 Regulating plate pin 001
001
001
001
001
001
002
001
001
001
001
001
001
001
001
001
001
001
004
001
001
001
001
001
001
Qty
No. Part No. Description
345
thread thread thread
Qty
345
thread thread thread
For clutch motor For ES DD motor
Chain stitch looper shaft bushing (rear)
Chain stitch looper shaft
