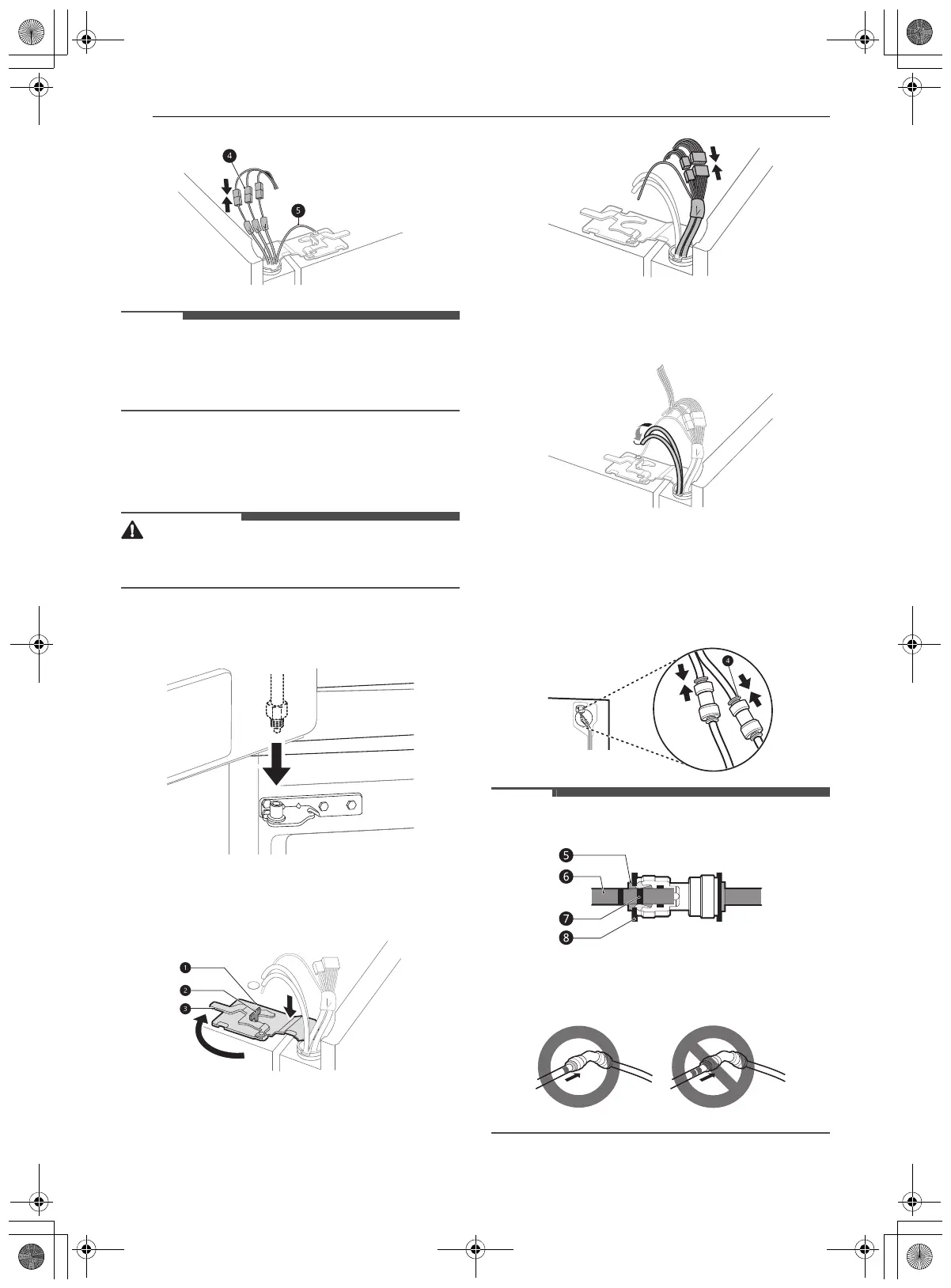

18 INSTALLATION
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
Assembling the Left Refrigerator
Door
CAUTION
• Install the left refrigerator door after the right
door is installed.
1 Make sure that the plastic sleeve is inserted in
the bottom of the door. Install the refrigerator
door onto the middle hinge.
2 Fit the hinge a over the hinge lever latch b
and slot it into place. Rotate the lever
c
clockwise and fasten the hinge.
3 Connect all the wire harnesses and the
ground wire.
4 Push the water supply lines into the hole on
the top case and pull them through the
backplate.
5 Hold the water supply connection and gently
push in the collet d to connect the water
supply lines as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tubes in
place.
NOTE
• Disassembling/Assembling the Water Lines
e Collet f Tube g Insert line h Clip
• Gently press the collet and insert the tube until
only one line shows on the tube.
us_main.book.book Page 18 Wednesday, September 23, 2020 1:25 PM
