ENGLISH

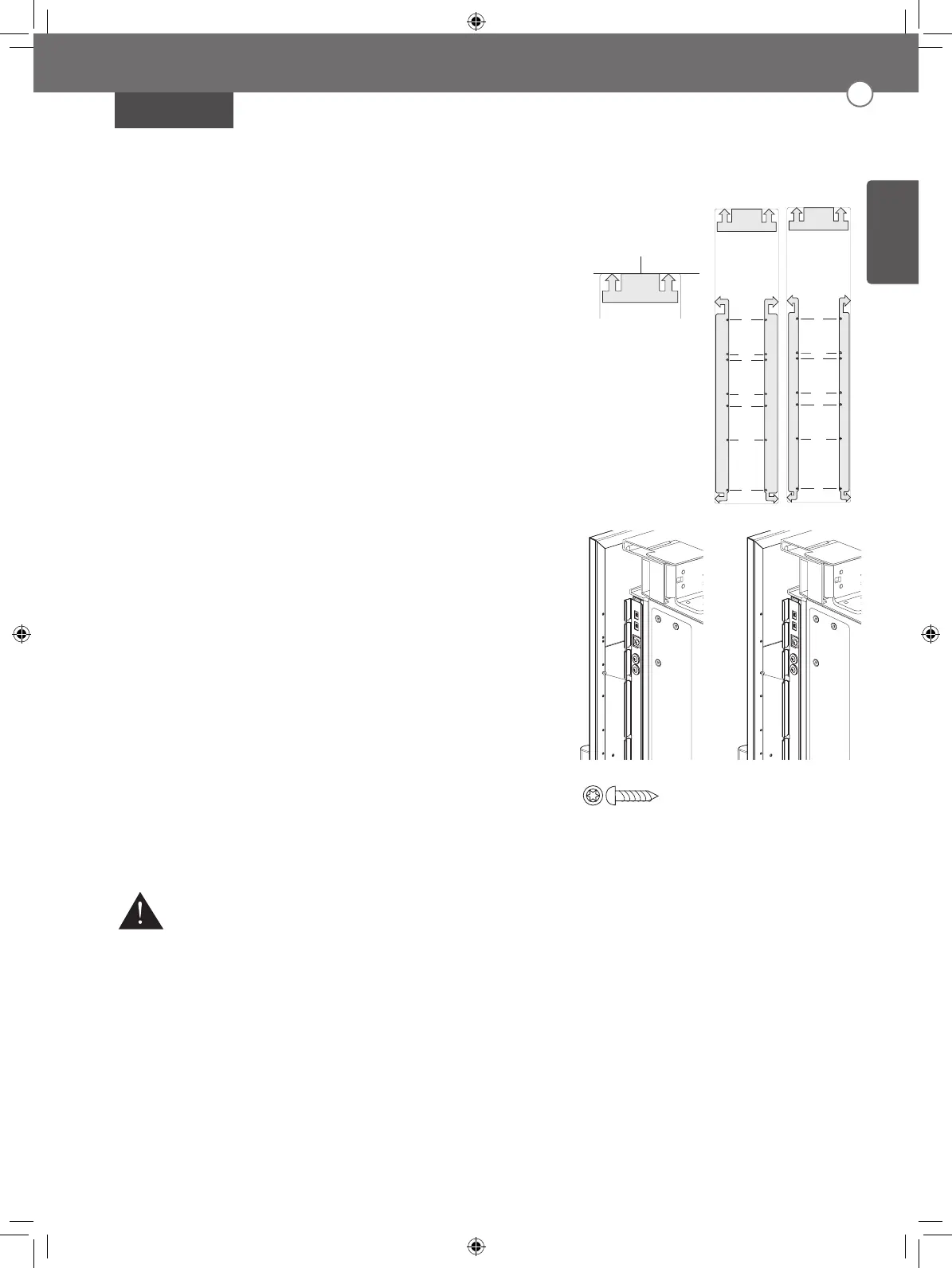

Installing Door Panels
Typical panel dimensions are based on an 84" (213.4
cm) nished height with 1/8" (3.2 mm) reveals. Template
placement must be adjusted for panels exceeding
typical dimensions.
The door panel should be installed rst, followed by the
upper then lower drawer panel, if needed.
1. Place the door panel face down on a protected
surface.
2. Locate the correct side of the door panel template for
your product and position the template ush with the
top and left sides of the panel.
3. Use the template to mark the correct screw locations
on the back of the panel.
4. Slide the template to the right so it is ush with the
top and right sides of the panel.
5. Use the template to mark the correct screw locations
on the back of the panel.
6. On refrigerator/freezer columns, begin inserting a
#8 x 1/2" screw into the fth hole from the top on
each side. On wine columns, use the third hole from
the top. Stop when the screws are 3/16" (4 mm)
proud of the panel. These will be the support screws
during the panel installation.
7. Insert the support screws in the slotted holes on the
appliance door mounting brackets so that the panel is
hanging on the door.
CAUTION
Beware of pinch points when installing door panels or opening
and closing doors.
A+1/8”
A
BACK OF
DOOR PANEL
4X12 20 ea
TOP / BOTTOM DOOR PANEL
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
DOOR PANEL
Top / Bottom of
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
Top / Bottom of
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
18" UNIT
18" UNIT
EDGE OF DOOR PANEL
MBM63560610
EDGE OF DOOR PANEL
Top
Top
Top
Top
(for initial screw)
Bottom
Bottom
Bottom
Top / Bottom of
DOOR PANEL
84" APPLICATION
83 7/8" ACTUAL
24 / 30"UNIT
24 / 30" UNIT
EDGE OF DOOR PANEL
EDGE OF DOOR PANEL
MBM63560611
Top
Top
Top
Top
(for initial screw)
Bottom
Bottom
Bottom
4X12
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
DOOR PANEL
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
BACK OF
DOOR PANEL
DOOR PANEL
BACK OF
DOOR PANEL
Mounting door panel
Wine Column only.
