ENGLISH
NOTE
Door Swing Clearances
The installation must allow for clearances to adjacent walls or cabinets. This freezer/wine column is
equipped with a 2-position door stop.
The factory-set 115° door swing can be adjusted to 90° if clearance to adjacent cabinets or walls is
restricted.
Door Handle Clearances
The door handle depth must be added to the dimension where noted to determine the total
clearance required from adjacent cabinets or walls. This clearance will vary depending on the custom
handle used. When using Signature Kitchen Suite handles or the Signature Kitchen Suite stainless
steel door panel kit with handles (optional accessories), the door handle clearance with the door
open 115° is 11" (279 mm).

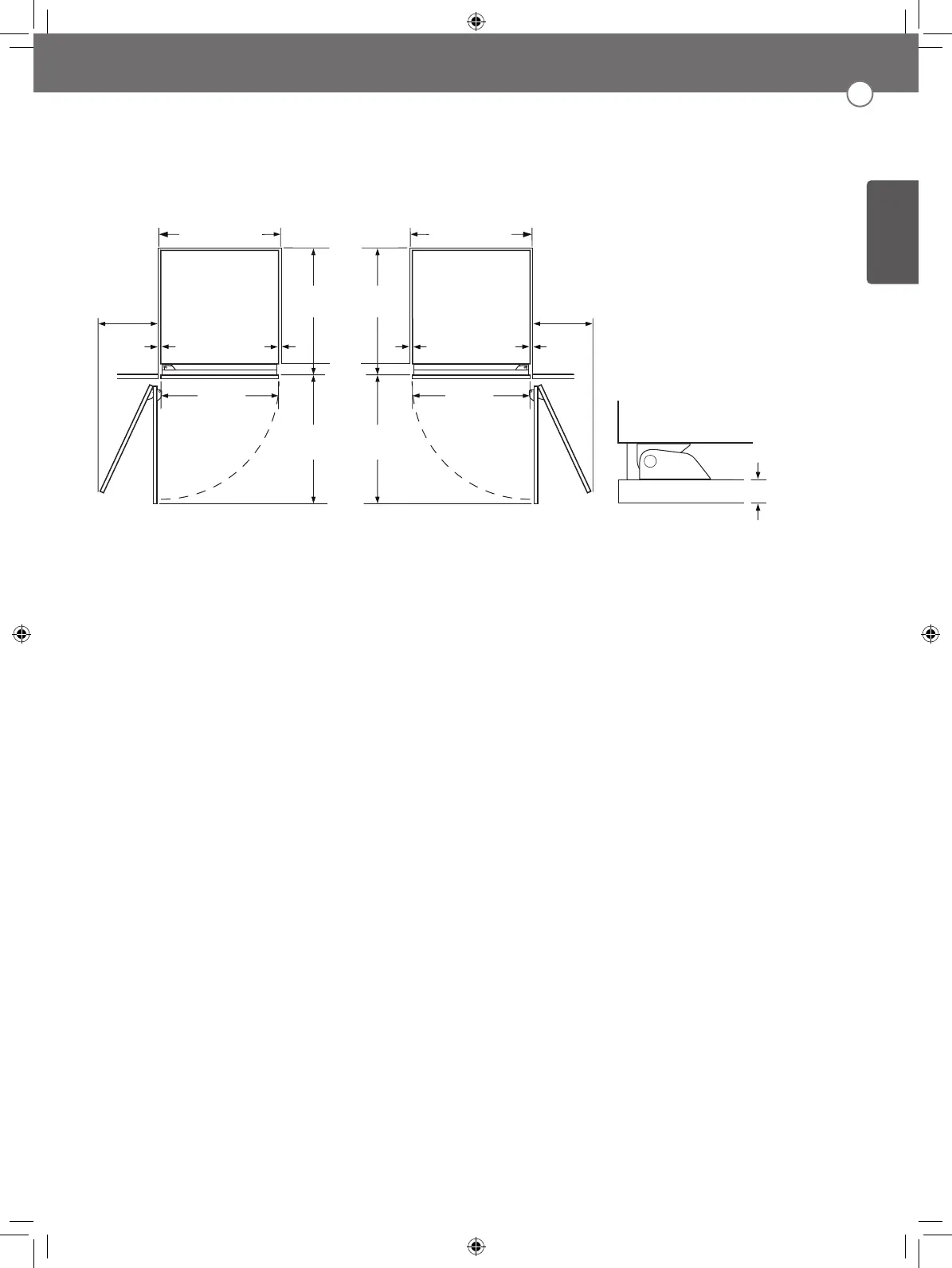

INSTALLATION CLEARANCES
TOP VIEW
90°
115°
8 3/4"*
(223 mm
)
24"
(610 mm)
20 1/4"
(514 mm)
18"
17 3/4"
(451 mm)
3/4"
(19 mm)**
**
Varies depending on the
thickness of the custom
cabinet panel. The door panels in
the optional Signature Kitchen Suite
stainless steel door panel kit are
3/4" (19 mm) thick.
Door handle must be added
to this dimension.
*
(457 mm)
1/8"
(3mm)
min.
1/8"
(3mm)
min.
90°
115°
8 3/4"*
(223 mm)
24"
(610 mm)
20 1/4"
(514 mm)
18"
17 3/4"
(451 mm)
(457 mm)
1/8"
(3mm)
min.
1/8"
(3mm)
min.
SKSCF1801P SKSCW181RP
