3. Description of the Device
The Showtec Sonus Bar 8B is a battery-powered light bar with 24 RGBW LEDs of 2 W each. The battery lasts 4,5 h
at maximum output. The LEDs can be controlled in up to 8 sections and 38 DMX channels. The device can also
work in stand-alone mode with built-in programs, sound-controlled programs, manual settings, in master/slave
mode and it supports RDM. The Showtec Sonus Bar 8B is convection-cooled, so it is completely silent in
operation.

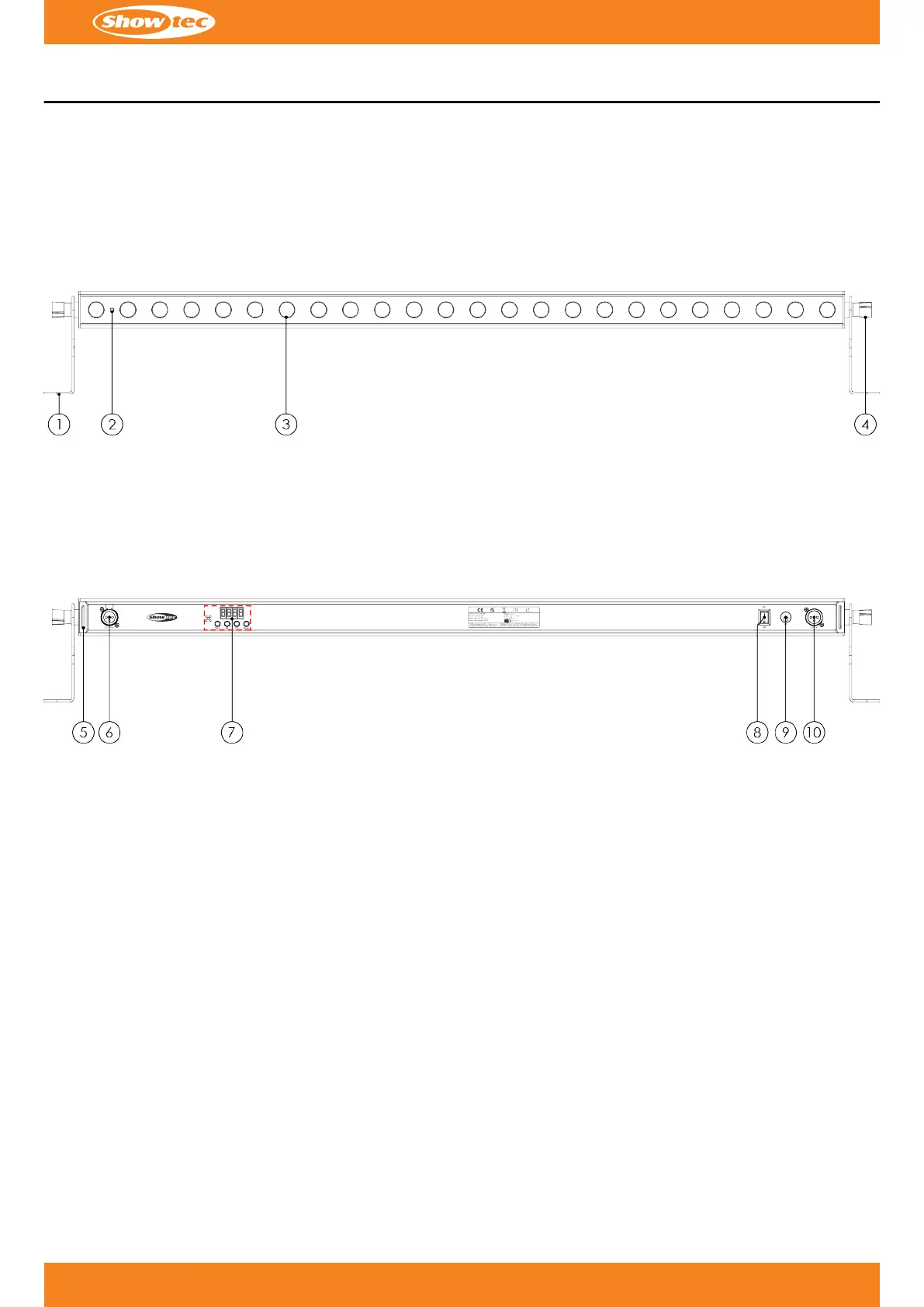

3.1. Front view
Figure 2
01) 2 x Mounting brackets
02) IR sensor
03) 24 x RGBW 4-in-1 2 W LEDs
04) 2 x Adjustment screws
3.2.
Back View
Figure 3
05) 2 x Safety eyes
06) 3-pin DMX signal connector OUT
07) Control panel: 7-segment display, control buttons and built-in microphone
08) ON/OFF switch
09) 24 V DC connector IN
10) 3-pin DMX signal connector IN
