32
Order code: 40101
Polar 340 WashFX IP65 Moving Head
● WHITE Beam: White color intensity of the 7 peripheral LEDs (0–255)
● STROBE Beam: Strobe effect of the 7 peripheral LEDs, from OFF to high frequency (0–25)
● RED Center: Red color intensity of the center LEDs (0–255)
● GREEN Center: Green color intensity of the center LEDs (0–255)
● BLUE Center: Blue color intensity of the center LEDs (0–255)
● WHITE Center: White color intensity of the center LEDs (0–255)
● STROBE Center: Strobe effect of the center LEDs, from OFF to high frequency (0–25)
● PRISM: Prism adjustment (0–255)
● RED Ring: Red color intensity of the ring LEDs (0–255)
● GREEN Ring: Green color intensity of the ring LEDs (0–255)
● BLUE Ring: Blue color intensity of the ring LEDs (0–255)
● TIME: Set the duration of the step (0–255, from 0,1 to approximately 25 seconds)
● USE: Include the step in the custom program (YES/NO). If you choose NO, the
step will be excluded during the custom program play
08) Press the ENTER button to set the value.
09) Repeat steps 3–8 above for the remaining steps of the custom program.
Note: For each custom program you can create 30 steps, which makes it possible to create 60
customized scenes in total.

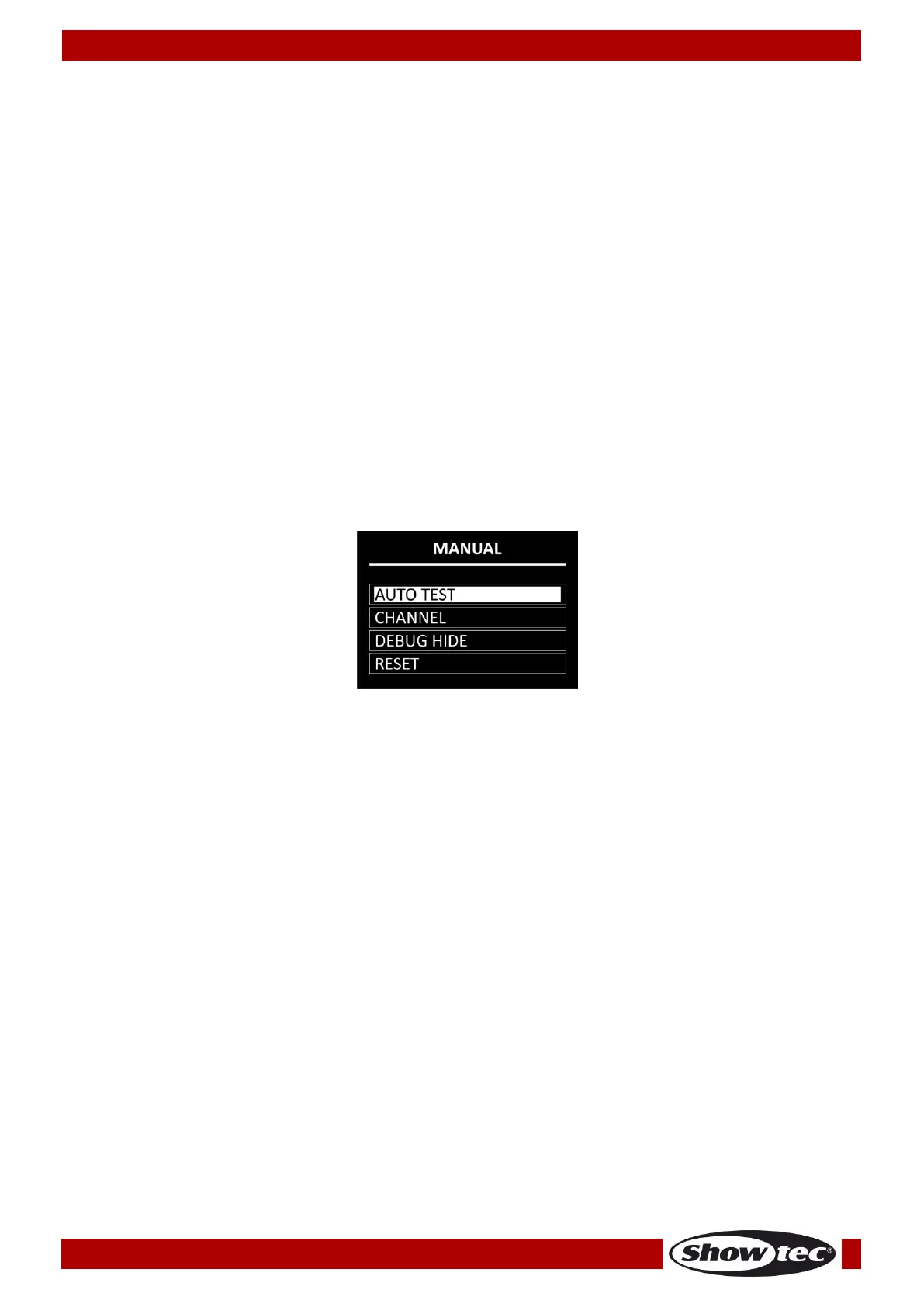

6. Manual
In this menu you can manually adjust and reset the device’s parameters.
01) Press the UP/DOWN buttons to scroll through the following 4 options.
02) Press the ENTER button to confirm your choice.
The available options are:
● AUTO TEST: See 6.1. Auto Test for more information
● CHANNEL: See 6.2. Channel for more information
● DEBUG HIDE: This option is not relevant to the use and operation of the device
● RESET: See 6.3. Reset for more information
6.1. Auto Test
In this submenu you can perform auto test of the device’s parameters.
01) Press the ENTER button to start the test.
02) Press the BACK button to stop the test.
