9
Ordercode: 40032
Phantom 180 Wash
Multiple Phantoms (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,8 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Phantoms and other devices.
04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's Pro power socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.

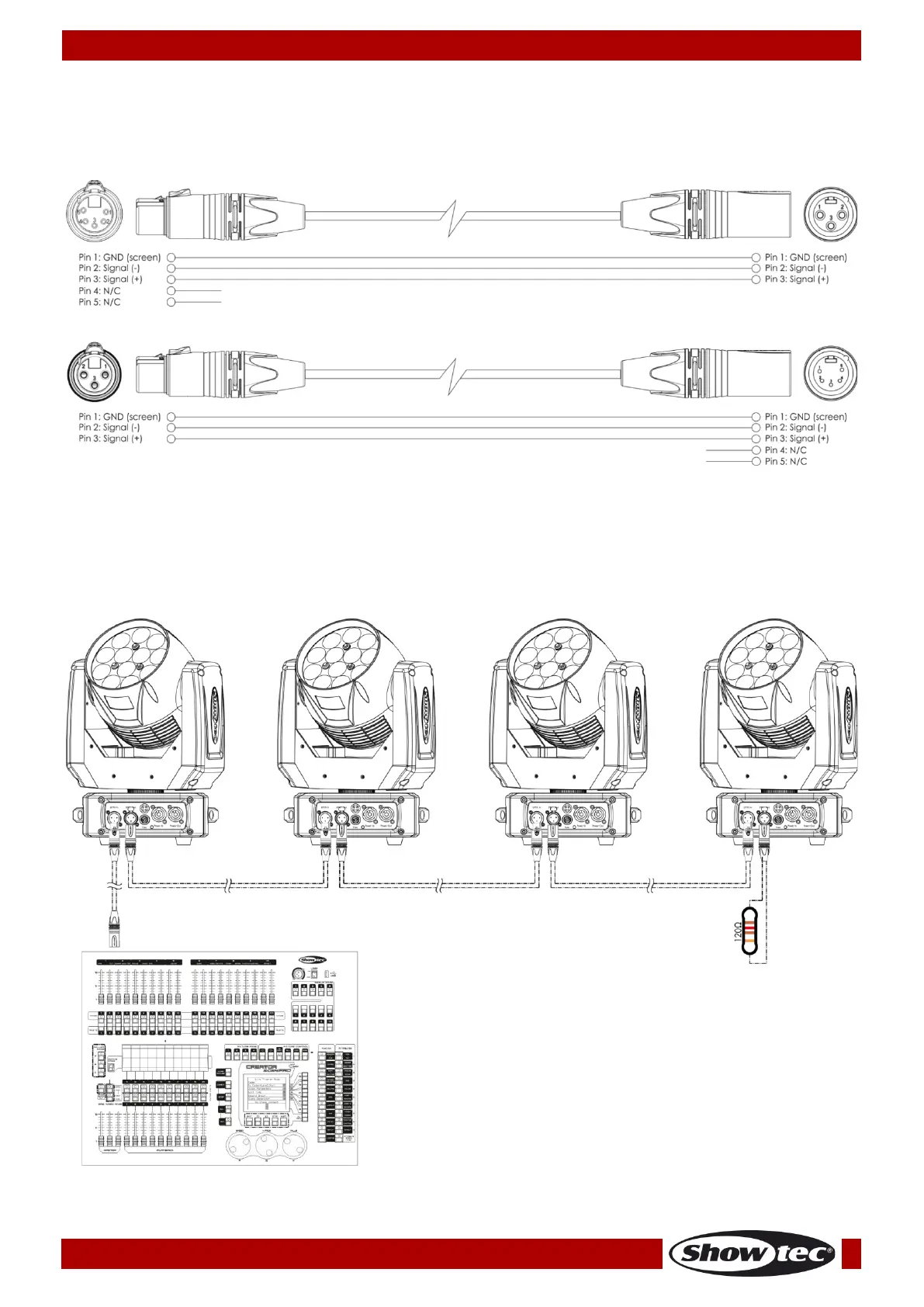

Multiple Phantoms DMX Setup
Fig. 04
Note : Link all cables before connecting electric power
