3. Description of the Device
The Showtec Performer Fresnel 2200 DDT is a 300 W Warm White LED Spot with high CRI (98) and silent
operations. The device projects light within a 15°–60° motorized zoom range. The Performer Fresnel 2200 DDT
(Direct TRIAC Dimming Technology) is compatible with conventional dimmer packs. A barndoor is optional for
shaping the output manually.

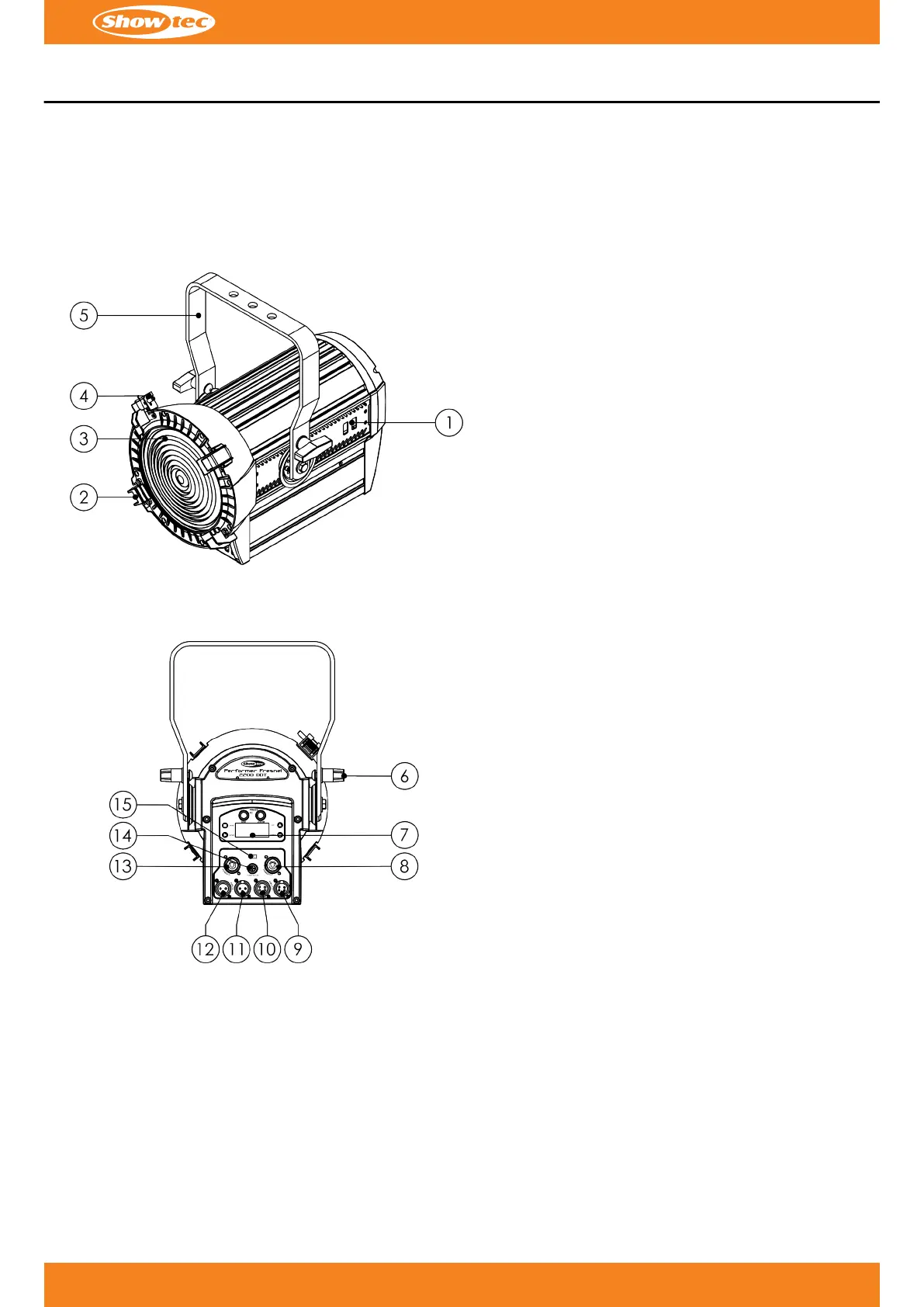

3.1. Front View
Figure 2
Safety eye
3x filter frame holder
Fresnel lens
Filter frame clip
Mounting bracket
3.2.
Back View
Figure 3
2 adjustment screws
Control panel
PowerPro connector OUT 100–240 V
5-pin DMX signal connector OUT
3-pin DMX signal connector OUT
5-pin DMX signal connector IN
3-pin DMX signal connector IN
PowerPro connector IN 100–240 V
Fuse T3,15A
Voltage switch 115/230 V
9
c
Product code: 33045
Performer Fresnel 2200 DDT
01)
02)
03)
04)
05)
06)
07)
08)
09)
10)
11)
12)
13)
14)
15)
