4. Installation
4.1. Safety Instructions for Installation
Attention
Make sure that there is enough space for ventilation around the device.
• Do not block the ventilation openings. Without proper heat dissipation and air circulation, the internal•
components may overheat. This can result in product damage.
• Do not install near equipment that produces heat, for example amplifiers.•
4.2. Installation Site Requirements
• The device can be used only indoors.•
• The minimum distance to other objects must be bigger than 0,5 m.•
• The maximum ambient temperature t
a
= 40 °C must never be exceeded.•
•
The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
•
4.3. Rack Mounting
The device can be mounted in a standard 19-inch rack. The device requires 1 rack unit (RU) of space.
Make sure that the rack is sufficiently secured to prevent it from becoming unstable or falling over.
To mount the device in a two-post rack, follow the steps below:
01) Install the mounting plates for stand-alone mounting (see 4.3.1. Stand-alone) or side-by-side placement01)
with a 2
nd
device (see 4.3.2. Side-by-side).
02) Insert 4 cage nuts in the openings on the rack posts where you want to mount the device.02)
03) Position the device in front of the rack posts so that the 4 mounting openings on the flanges of the rack03)
mounting plates face the openings on the rack posts with cage nuts.
04) Use a screwdriver to mount the device to the rack posts with 4 screws.04)
4.3.1. Stand-alone
To mount the device on its own in 1 rack unit, follow the steps below:
01) Use 3 screws to install 1 short rack mounting plate to the mounting holes for rack mounting plate (03) on01)
either side of the device.
02) Use 3 screws to install 1 long rack mounting plate to the mounting holes for rack mounting plate (03) on the02)
other side of the device.
03) Mount the device in a rack (see 4.3. Rack Mounting).03)

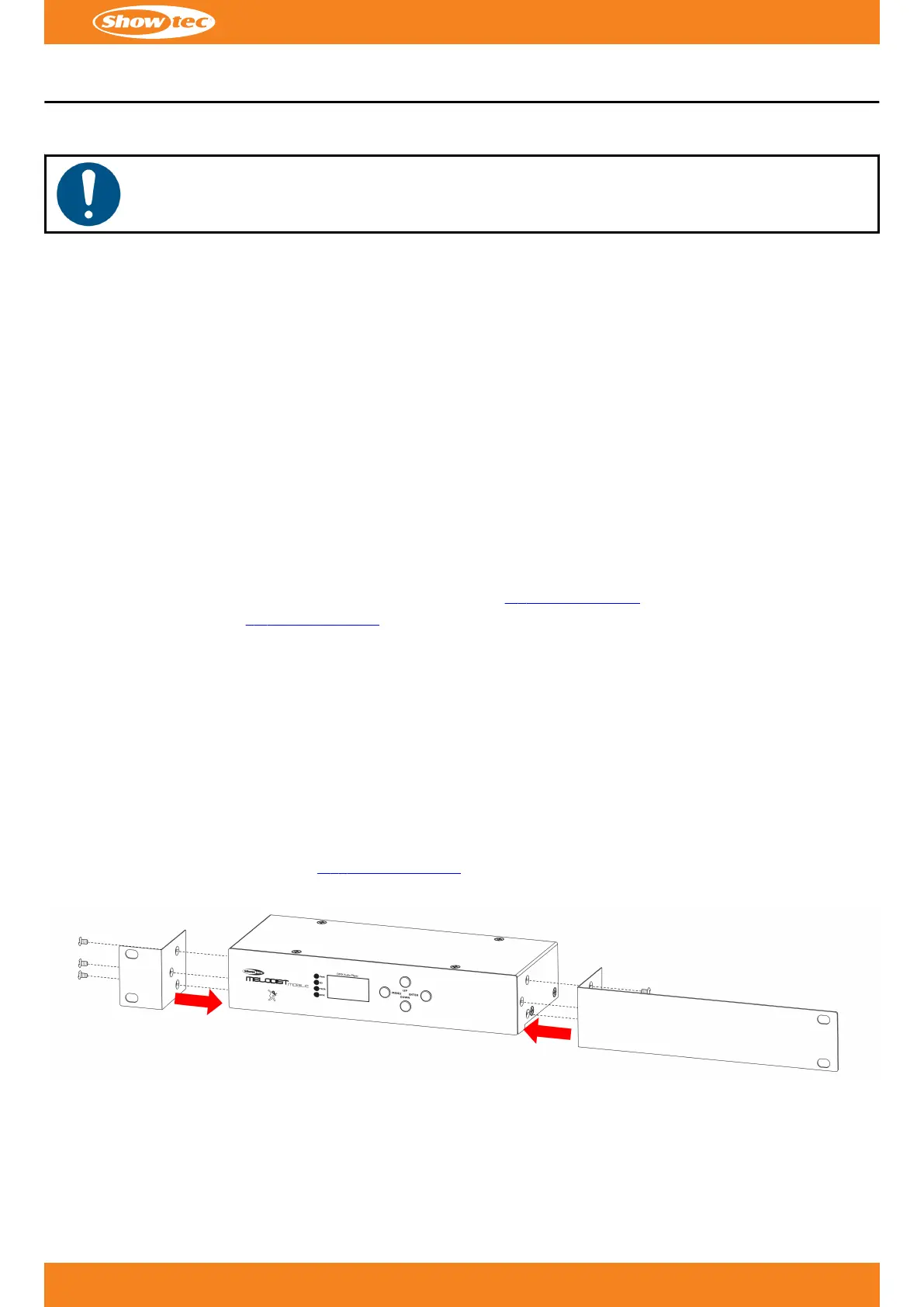

Figure 5
10
c
Product code: 50422
Melodist Mobile
