3. Description of the Device
The Showtec Melodist Install is a DMX controllable WAV media player for DIN rail mounting. It plays stereo WAV
files from a micro SD card via two balanced outputs. Four status LEDs indicate the status of the player and
control signals.
The Melodist Install has a trigger mode and a player mode. In trigger mode, the device plays up to 10 WAV files
simultaneously, via 10 channels of DMX. If no DMX signal is present, the 6 terminal inputs can be used as triggers
to start the first 6 audio files. In player mode, it plays 1 audio file at a time. In this mode the terminal input allows
control of start/stop/pause, track select, folder select, play mode and volume. There are 4 play modes
available: single continuous, single shot, continuous loop and continuous random.
3.1.

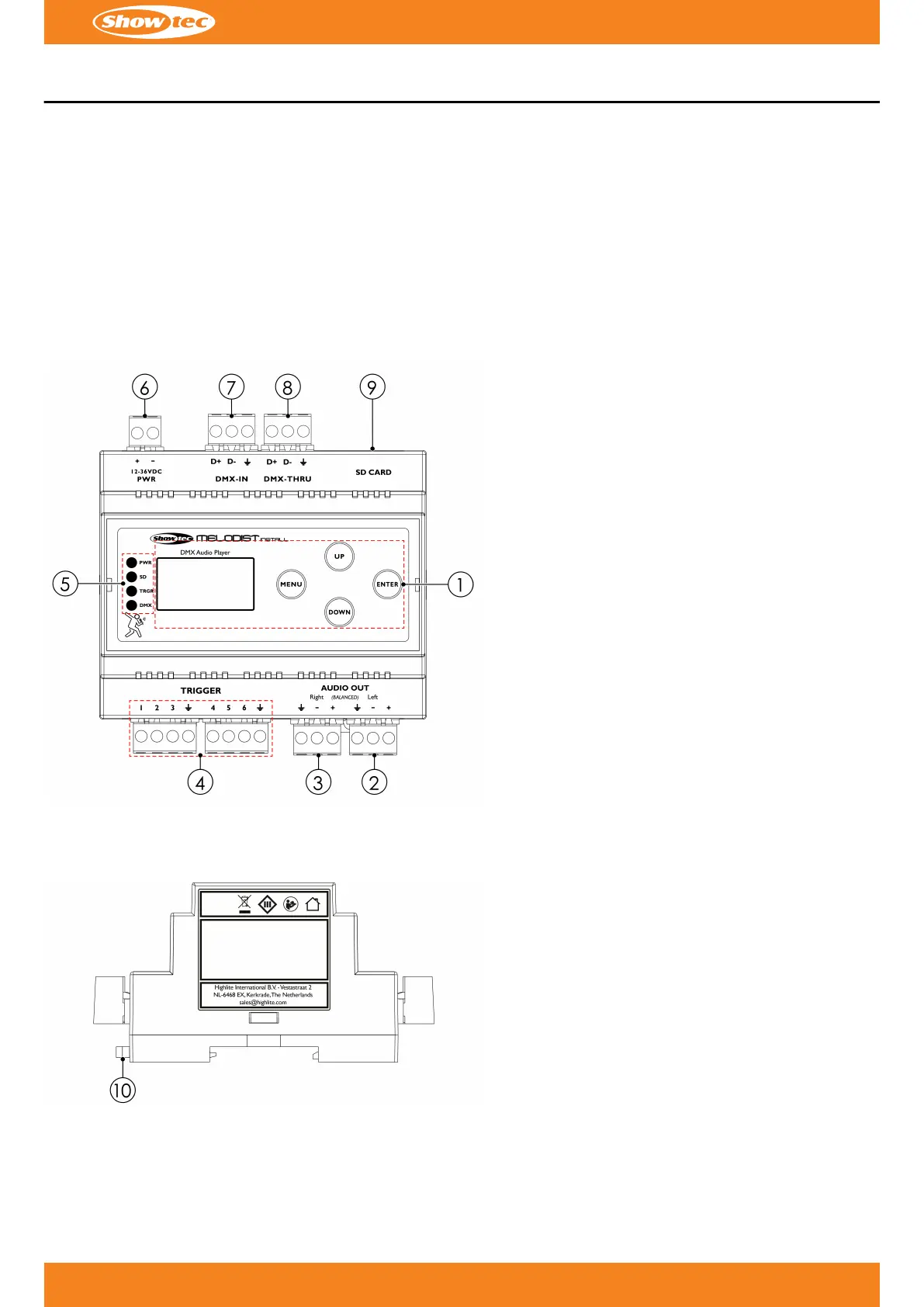

Top View
Figure 2
Control panel: OLED display and control
buttons
3-pin Phoenix terminal connector for
balanced audio OUT (Left)
3-pin Phoenix terminal connector for
balanced audio OUT (Right)
2 x 4-pin GPIO Phoenix terminal connector IN
for triggers
4 x status LED indicators
2-pin Phoenix terminal power connector IN
(12–36 V DC)
3-pin Phoenix terminal connector for DMX IN
3-pin Phoenix terminal connector for DMX
OUT
SD card slot
3.2.
Side View
Figure 3
2 x DIN rail lock
7
c
Product code: 50421
Melodist Install
01)
02)
03)
04)
05)
06)
07)
08)
09)
10)
