5.4.4. DMX Cable Connection
01) Remove the 3-pin Phoenix terminal connector for DMX IN (07) and the 3-pin Phoenix terminal connector for01)
DMX OUT (08).

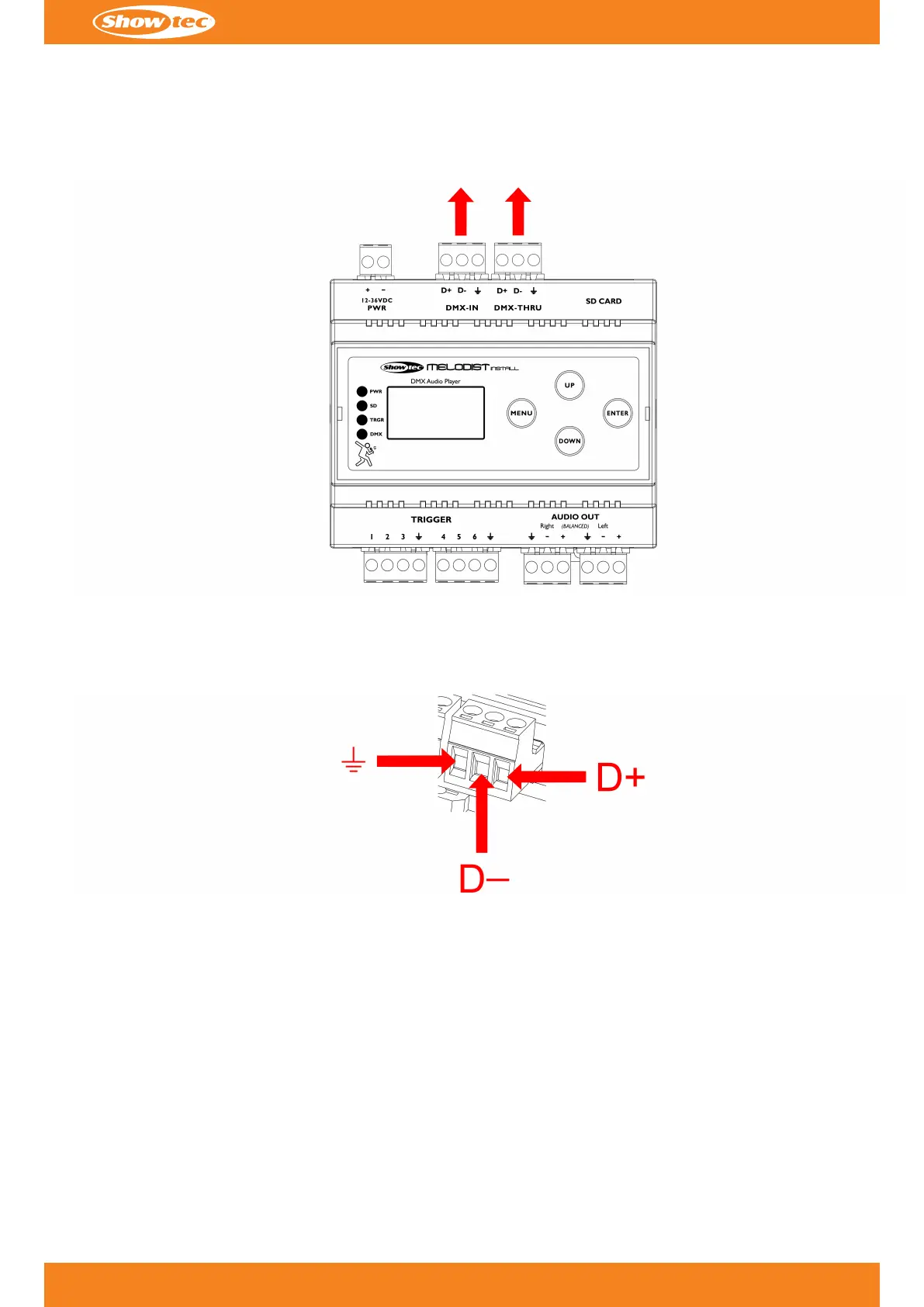

Figure 12
02) Connect a DMX-512 controller to the 3-pin Phoenix terminal connector for DMX IN (07) of the device.02)
03) Connect a DMX output device to the 3-pin Phoenix terminal connector for DMX OUT (08) of the device.03)
04) Insert the cables correctly.04)
Figure 13
5.4.5.
DMX Addressing
In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The
Melodist Install has 2 personalities: Player Mode (5 channels) and Trigger Mode (11 channels).
If you want to connect multiple devices on one data link and use them in 11-channel mode, for example,
follow the steps below:
01) Set the starting address of the 1
st
device on the data link to 1 (001).01)
02) Set the starting address of the 2
nd
device on the data link to 12 (012), as 1 + 11 = 12.02)
03) Set the starting address of the 3
rd
device on the data link to 23 (023), as 12 + 11 = 23.03)
04) Continue assigning the starting addresses of the remaining devices by adding 11 each time to the previous04)
number.
When addressing multiple devices on one data link, make sure that there are no overlapping channels. You
cannot control devices individually if they have overlapping channels.
17
c
Product code: 50421
