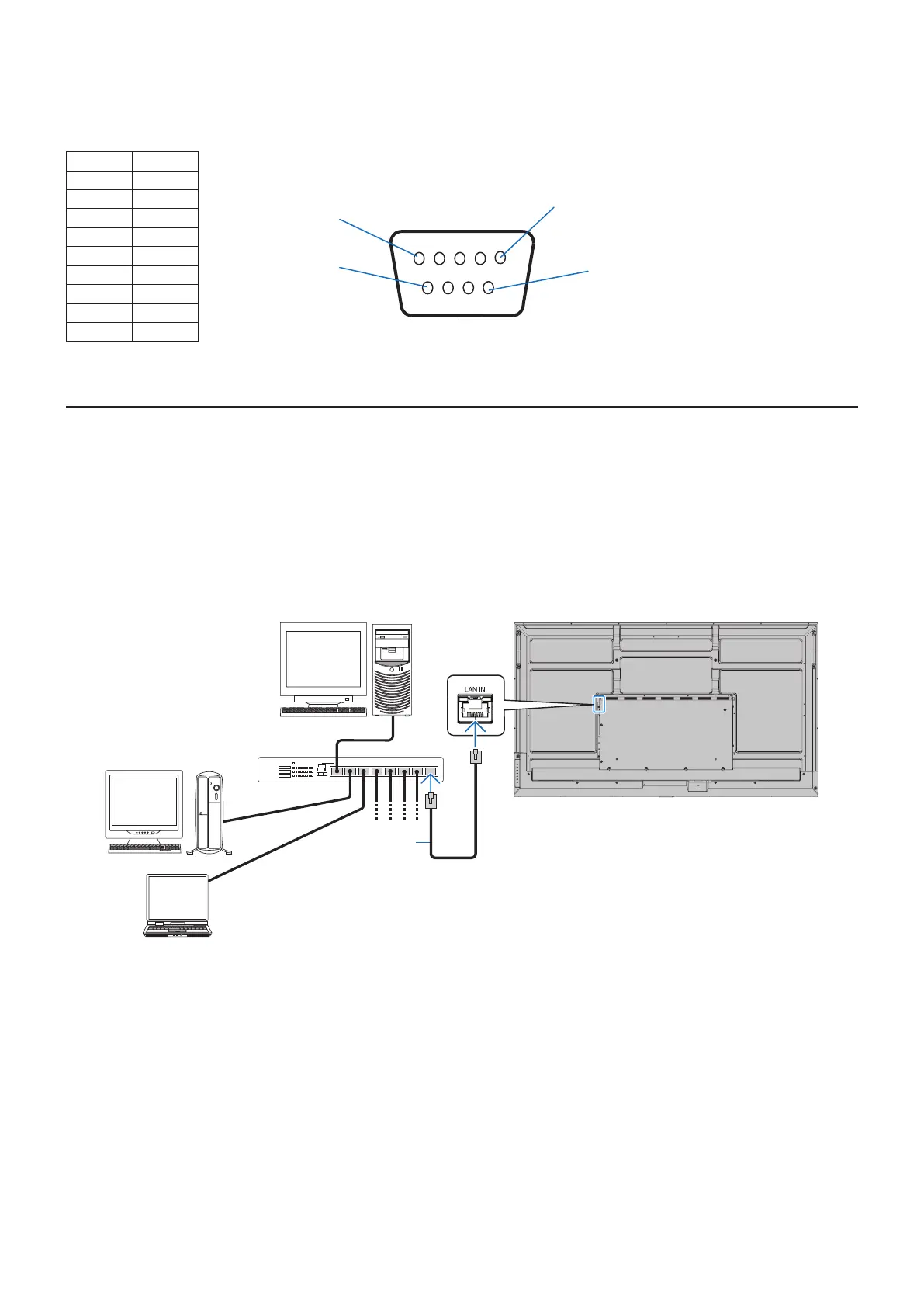

PIN ASSIGNMENT
RS-232C input/output
1
6
5
9
D-SUB 9P (Monitor side)
Pin No Name
1 NC
2 RXD
3 TXD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
This monitor uses RXD, TXD and GND lines for RS-232C control.
Controlling the Monitor via LAN
Connecting to a Network
Using a LAN cable allows you to specify the monitor Settings by using an HTTP server function.
TIP: • To use a LAN connection, you are required to assign an IP address (see page 61). The monitor will obtain an
IP address automatically when connected to a DHCP network.
Example of LAN connection:
Server
Hub
Use a category 5 or higher LAN cable.
LAN cable
TIP: • This monitor must be connected to a network.
Enables [Monitor Control via Network] in [Network Settings] of [Network] on the [Administrator Settings] menu.
• The HTTP server won’t work when [Low Power] is set to [Mode] under [Power Save Settings] in [Protect].
When using the HTTP server function with the power off, make sure to set [Mode] to [Normal].
