Replacing the receiving card
Remove the receiving card from the hub board.
Remove the four screws securing the receiving card, and then remove the receiving card from the hub board.
Install the receiving card so that the
arrow is orientated to the left.

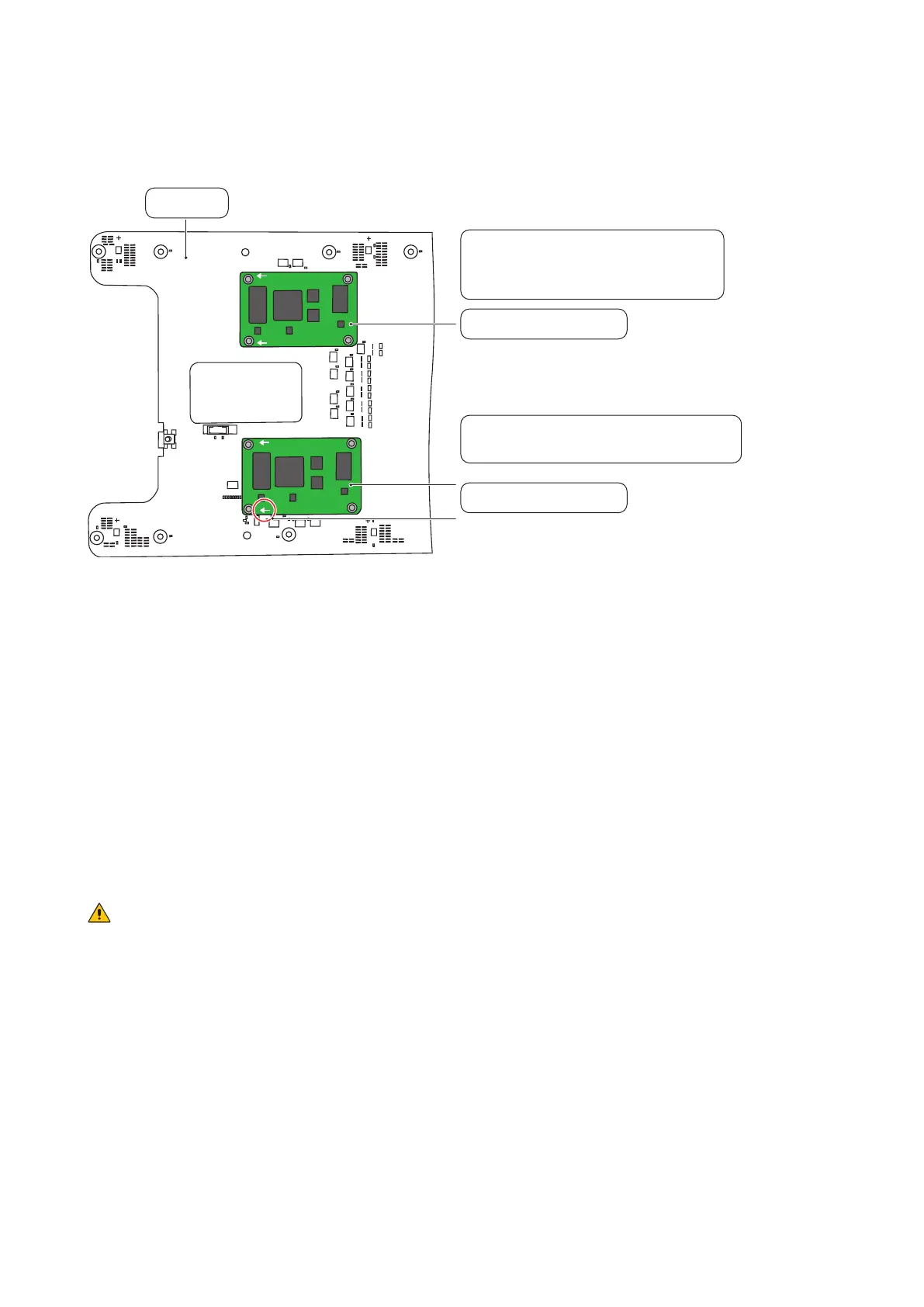

Hub board
Receiving card (slave)
Receiving card (master)
Remove the four screws.
Use a Phillips screwdriver (No. 1).
Tightening torque: 3 ± 0.5 kgf•cm
The FE series receiving card is (master) only.
Perform the following after replacing the receiving card.
Check the hardware program
While referring to “Updating the hardware program”, check the version of the hardware program of the
receiving card and update the hardware program if the version does not match the version of the modules
whose receiving card has not been replaced.
Update the conguration data
While referring to “Saving the conguration data”, read the conguration data from a module whose
receiving card has not been replaced and save it as a le.
While referring to “Updating the hardware program”, write the saved le of the conguration data to the
receiving card that has been replaced.
Adjust the brightness, color temperature, and gamma
Perform “Image Setting” (English-77)
CAUTION:
With the FA series, the receiving card on the slave side must be configured the same way as on the master
side.
Perform the “Check the hardware program”, “Updating the conguration data”, and “Adjust the brightness,
color temperature, and gamma” procedures on the receiving card on the slave side.
