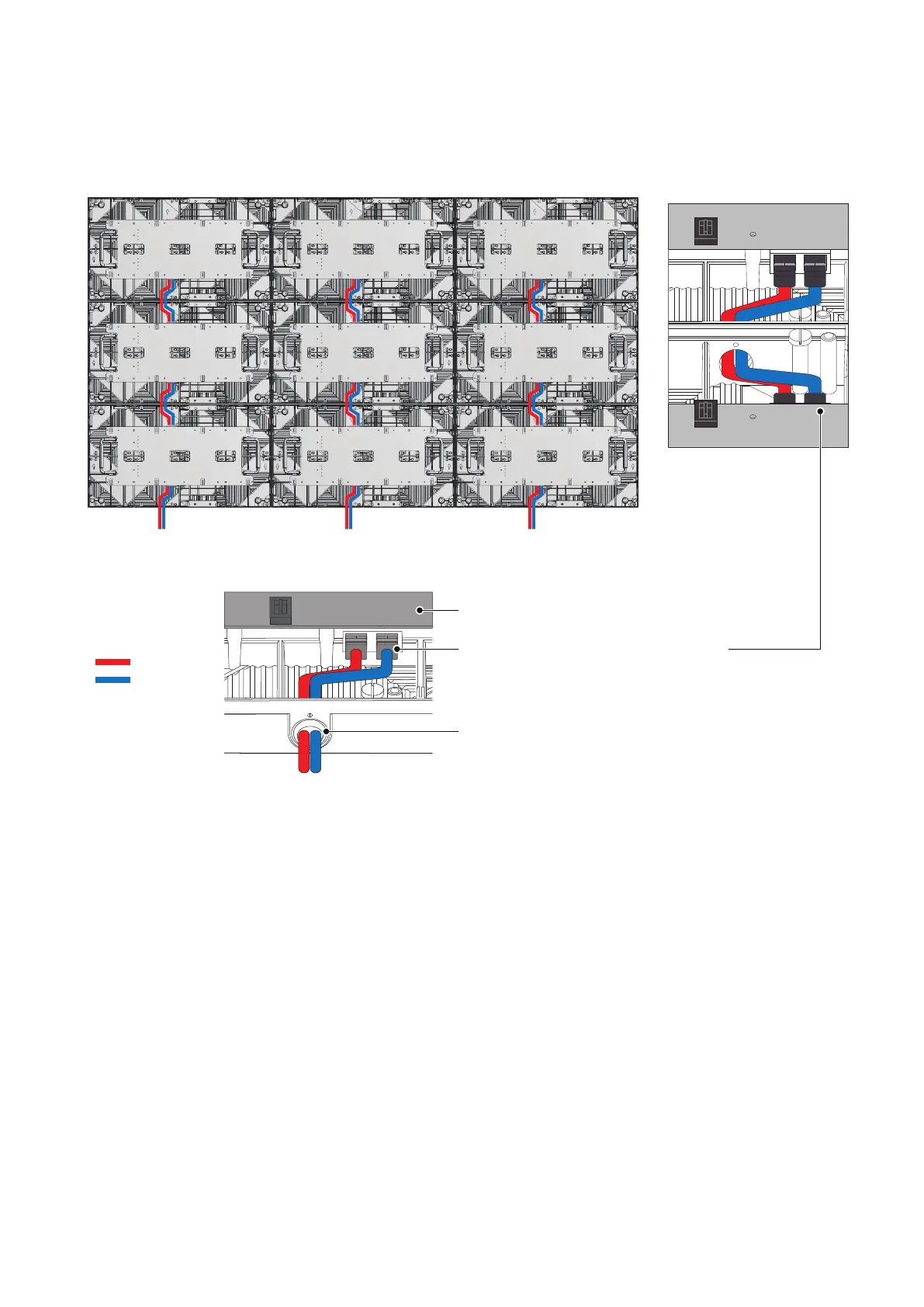

[Connection example] Connecting from bottom to top using multiple ports
FA series
Connect the master connectors of the interface connectors to the master connectors, and the slave connectors
to the slave connectors.
Hub board
Insert the LAN cables into the through hole and connect
it to the LAN connectors.
LAN cable from the
LED controller
120 mm
135 mm
LAN cable from the
LED controller
LAN cable from the
LED controller
Connect the 120 mm LAN cable to the
LAN connector on the left.
Connect the 135 mm LAN cable to the
LAN connector on the right.
