English - 32
(3)

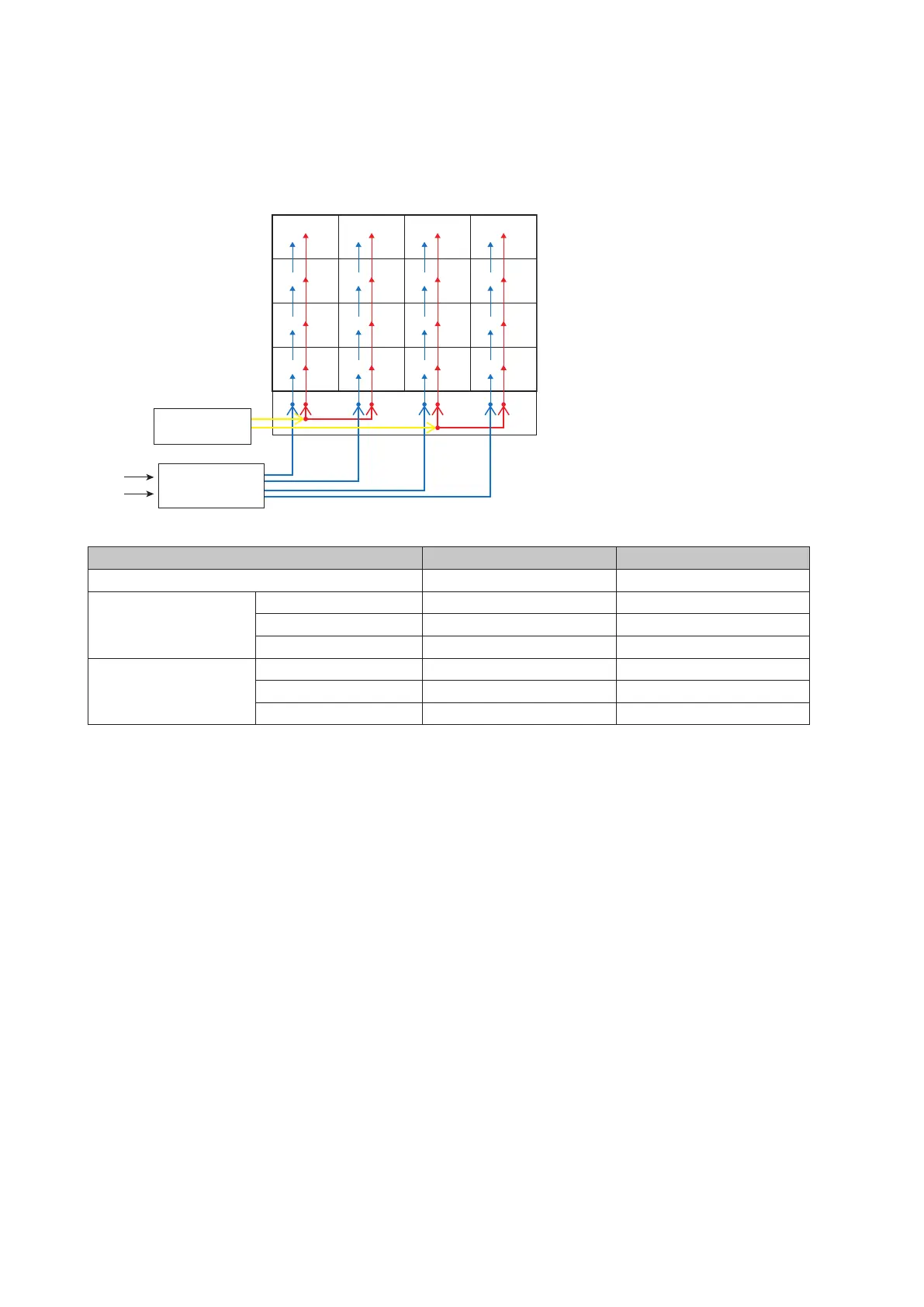

Connection when using a wall-mount frame
This connection is an example of connection when using the maximum capacity.
The power cable corresponding to the yellow part needs to be prepared by the customer.
Please connect considering the capacity of the switchboard and the inrush current specication.
4 x 4 frame set
AC POWER
Controller
(MCTRL660Pro)
HDMI
DVI
4 x 4 frame set
AC 100V AC 200V
Number of power system 2 2
Current rating per 1 module 0.5 A 0.3 A
per power system 4.0 A 2.4 A
per frame set 8.0 A 4.8 A
Inrush current per 1 module 50 A 100 A
25°C Cold start
Pulse width: 3ms
per power system 400 A 800 A
per frame set 800 A 1600 A
