English - 39
(3)

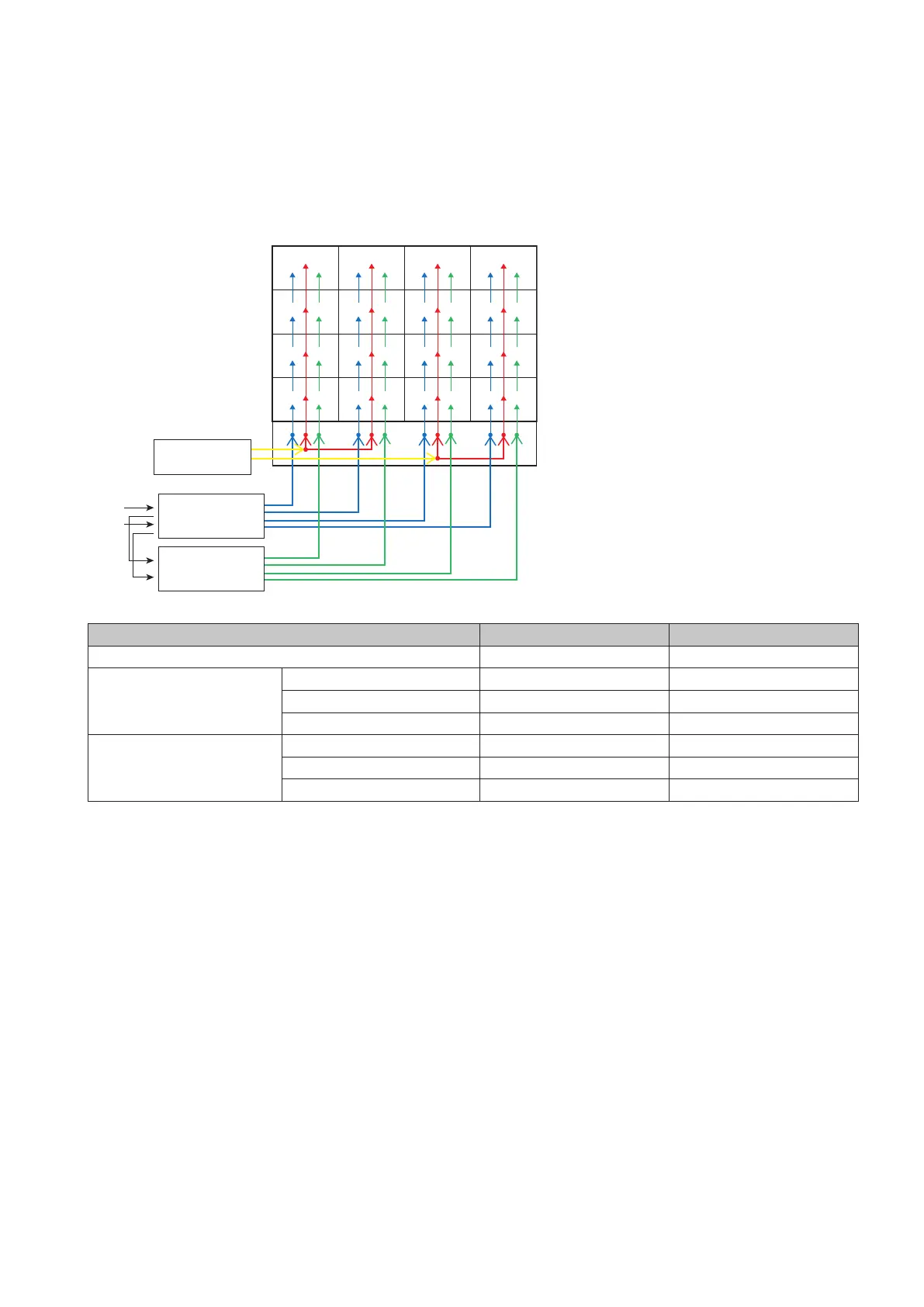

Connection when using a wall-mount frame
This connection is an example of connection when using the maximum capacity.
The power cable corresponding to the yellow part needs to be prepared by the customer.
Please connect considering the capacity of the switchboard and the inrush current specification.
FA series
4 x 4 frame set
HDMI
DVI
AC POWER
Controller
(MCTRL660Pro)
Controller
(MCTRL660Pro)
4×4 frame set AC 100V AC 200V
Number of power system
2 2
Current rating per 1 module
1.5 A 0.8 A
per power system
12.0 A 6.4 A
per frame set
24.0 A 12.8 A
Inrush current per 1 module
100 A 200 A
25°C Cold start
Pulse width: 3ms
per power system
800 A 1600 A
per frame set
1600 A 3200 A
