Module connection settings

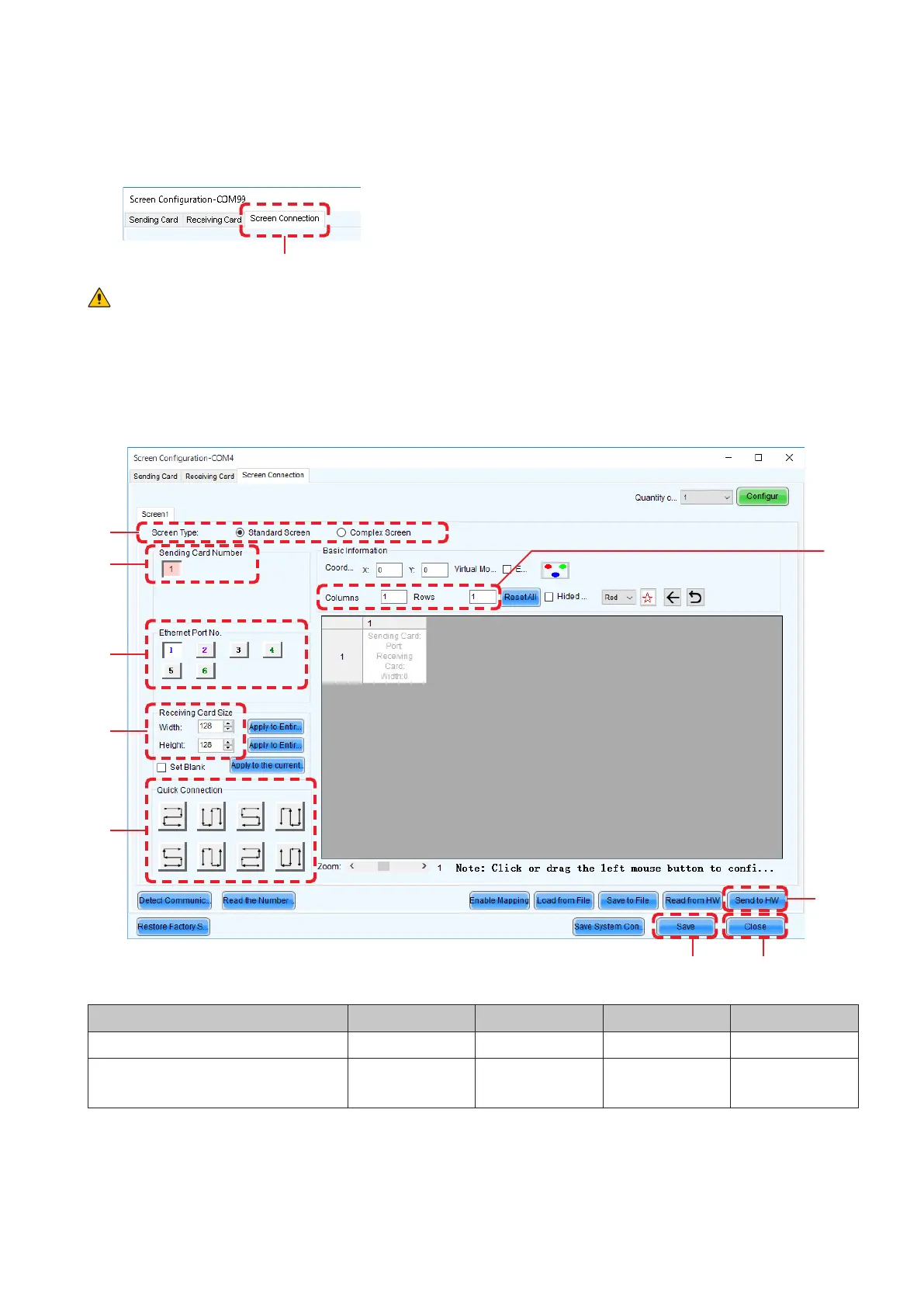

Start NovaLCT and log in with the administrator privileges.
In the Screen Configuration screen that is displayed, select the “Screen Connection” tab (a).
(a)
CAUTION
Do not change the settings in the “Receiving Card” tab.
Otherwise, the video may not be displayed properly.
Select “Standard Screen” under “Screen Type” (b).
The settings in “Sending Card Number” (c) and “Ethernet Port No.” (d) vary depending on the connected LED
controller.
(i) (j)
(h)
(b)
(c)
(f)
(d)
(e)
(g)
Enter the value in the table below under “Receiving Card Size” (e).
Product name LD-FE093 LD-FE123 LD-FE153 LD-FE193
Pixel pitch 0.9mm 1.2 mm 1.5 mm 1.9 mm
Number of displayed pixels
(resolution/module)
Width 640
Height 360
Width 480
Height 270
Width 384
Height 216
Width 320
Height 180
[Columns/Rows] Enter the number of installed screens under “Columns/Rows” (f) (the number of vertically
installed screens in Columns, and the number of horizontally installed screens in Rows).
