English - 162

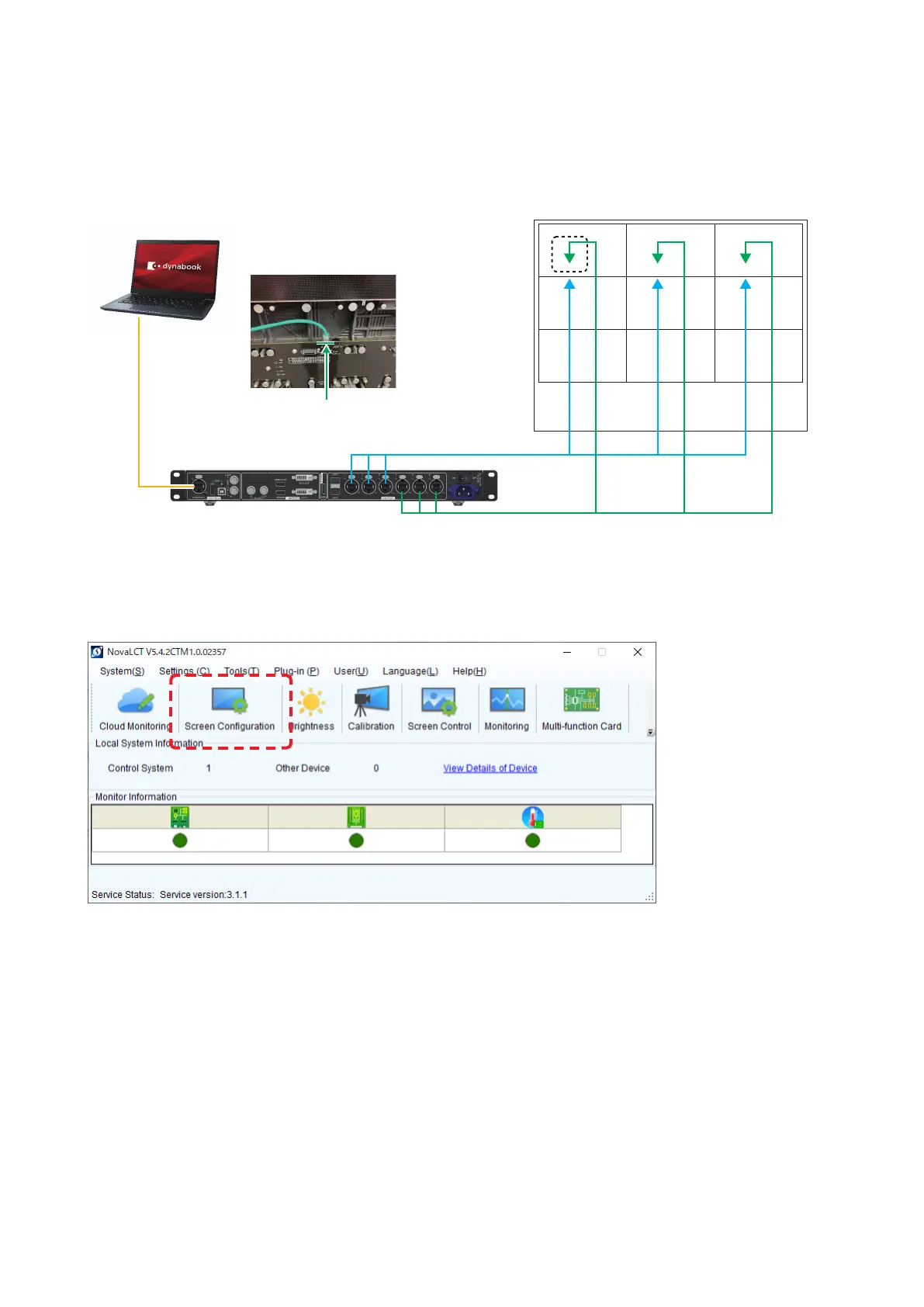

8.3 Configuring the settings with one LED controller connected to the PC using a LAN cable
Connect the LED controllers and the LED modules with LAN cables.
Terminate the Backup system connection at the RJ-45 connector located top left on the last module in the
daisy chain connection.
* For the MCTRL 4K LED controller, the way to make connections is similar to this example.
Use the same method also when connecting the PC with a USB cable.
LED controllers
LED modules
Start the control software NovaLCT and log in with the administrator privileges (English-44).
Click “Screen Configuration”.
