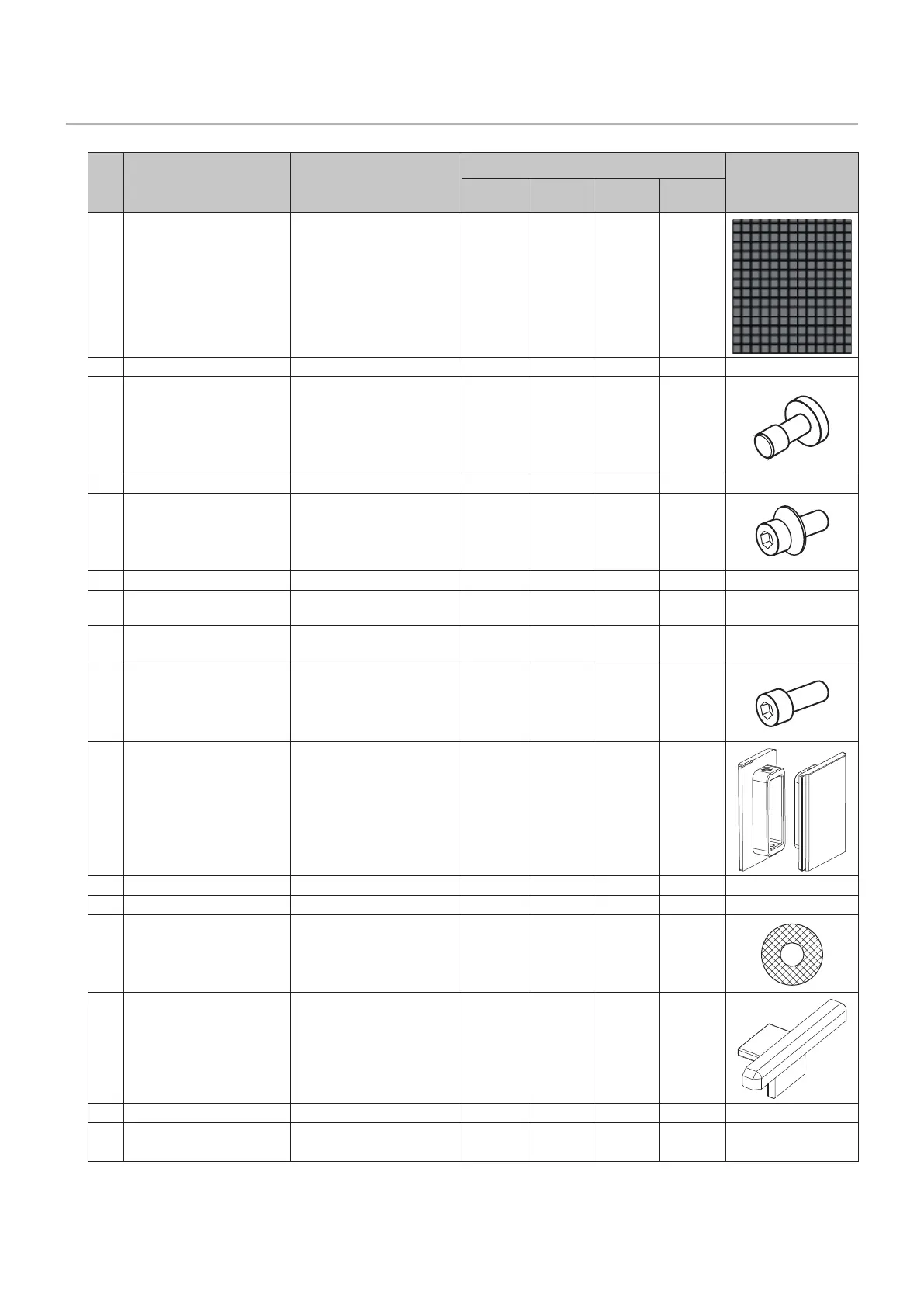

Contents
No.
Parts Specications
Quantity
4 x 4 frame
set
5 x 5 frame
set
6 x 6 frame
set
8 x 8 frame
set
Pixel card 152 x 171 mm 128 200 288 512
Cabinet 608 x 342 mm 16 25 36 64
Cabinet hanger pin Head diameter 15 mm,
thickness 5 mm,
M8 external dental pattern,
axis length 17 mm,
stainless steel color
35
(30+5*
1
)
45
(40+5*
1
)
75
(70+5*
1
)
113
(108+5*
1
)
1 Power bar cover plate 1 1 1 2
2 Power bar screw
(M8×20)
Hexagon socket head
screw
17
(12+5*
1
)
21
(16+5*
1
)
25
(20+5*
1
)
29
(24+5*
1
)
3 Power bar 1 1 1 2
4 Power bar connecting
part
– – – 1
5 Screw for Power bar
connecting
– – –
17
(12+5*
1
)
6 Screw for corner frame
bottom
(M6×12)
Hexagon socket head
screw
7
(2+5*
1
)
7
(2+5*
1
)
7
(2+5*
1
)
7
(2+5*
1
)
7 Corner frame bottom
(left, right)
2 2 2 2
8 Overframe (left, right) 2 2 2 2
9 Mounting bar 3 4 5 6
Washer
17
(12+5*
1
)
25
(20+5*
1
)
35
(30+5*
1
)
53
(48+5*
1
)
10 Corner frame top
(left, right)
2 2 2 2
11 Overframe (top) 1 1 1 2
Slot nut
15
(10+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
23
(18+5*
1
)
*1: Spare parts
