English - 56
What can be done with Auto Upload Module
When “Auto Upload Module” is set, if the power of the LED module is restarted after the pixel card
replacement, the calibration data of all pixel cards in the module, including the pixel card that has
been replaced, is automatically written to the receiving card, and the image is displayed according to
this state.
Precautions related to the operation (Adjusting the colors on a part of the screen)
Set “Auto Upload Module” to off when performing “Adjusting the colors on a part of the screen”.
(Uncheck “Auto Upload Module” and click “Save to HW”.)
Since the calibration data adjusted with “Adjusting the colors on a part of the screen” is saved in the receiving
card and used for the display, if “Auto Upload Module” is checked, the calibration data in all the pixels cards
inside the module whose pixel card has been replaced is written to the receiving card when the power is turned
on and the results of the adjustment performed with “Adjusting the colors on a part of the screen” is lost. Then,
the calibration data in the pixel card is used to display the image.
Detailed procedure
To set Auto Update Module, it is necessary to set module IDs to each pixel card and to register these
module IDs to the receiving card.
Once module IDs are set to the pixel cards, registration of the module IDs to the receiving card is
performed with Module Flash.
Follow the procedure below to check that module IDs are set to the pixel cards.
You may also use the procedure below to set module IDs to the pixel cards if they are not already
set.
Perform Module Flash again after setting module IDs to the pixel cards.
(1)

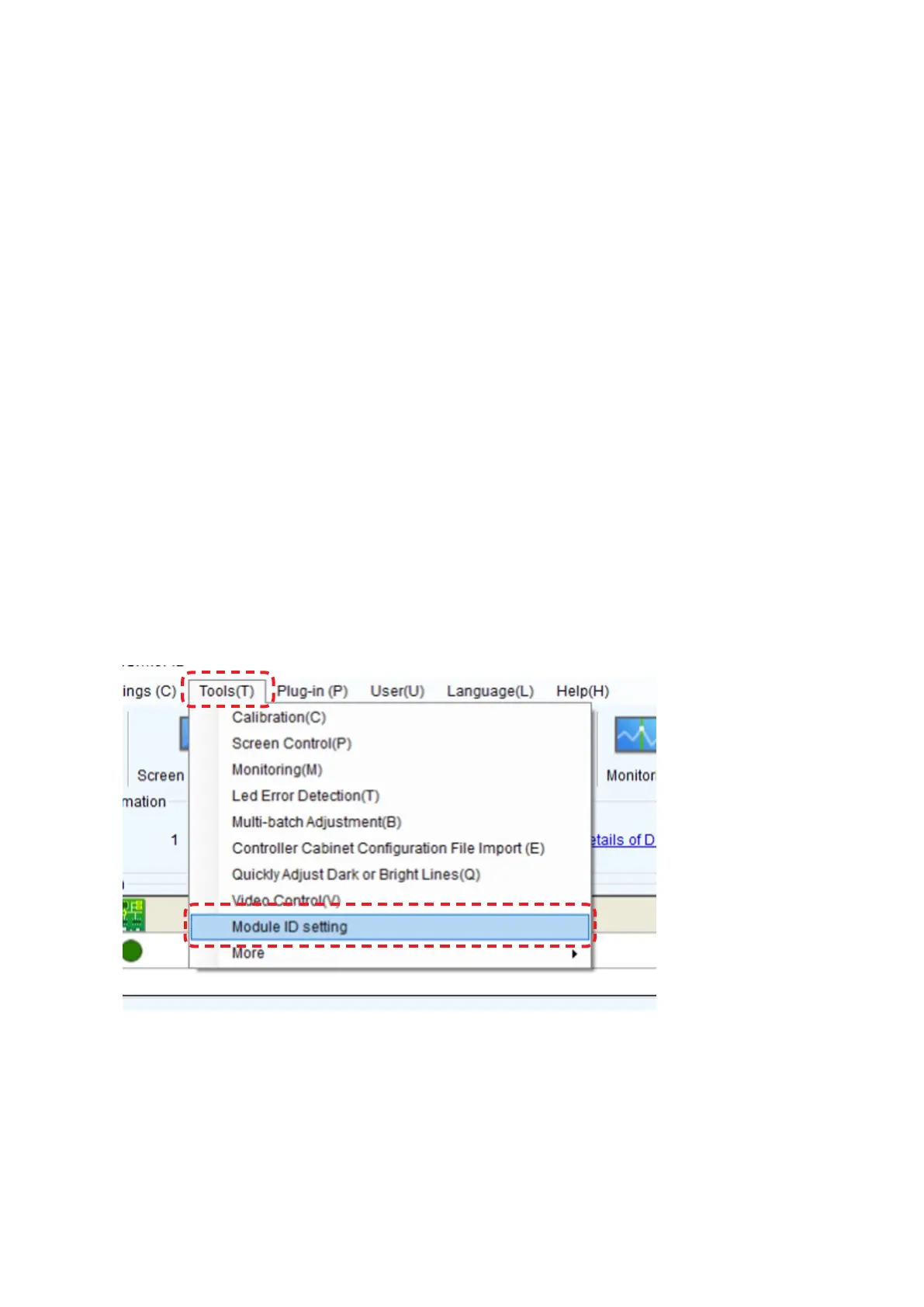

Log in with the administrator privileges and select “Tool” - “Module ID setting”.
