English - 10
No.

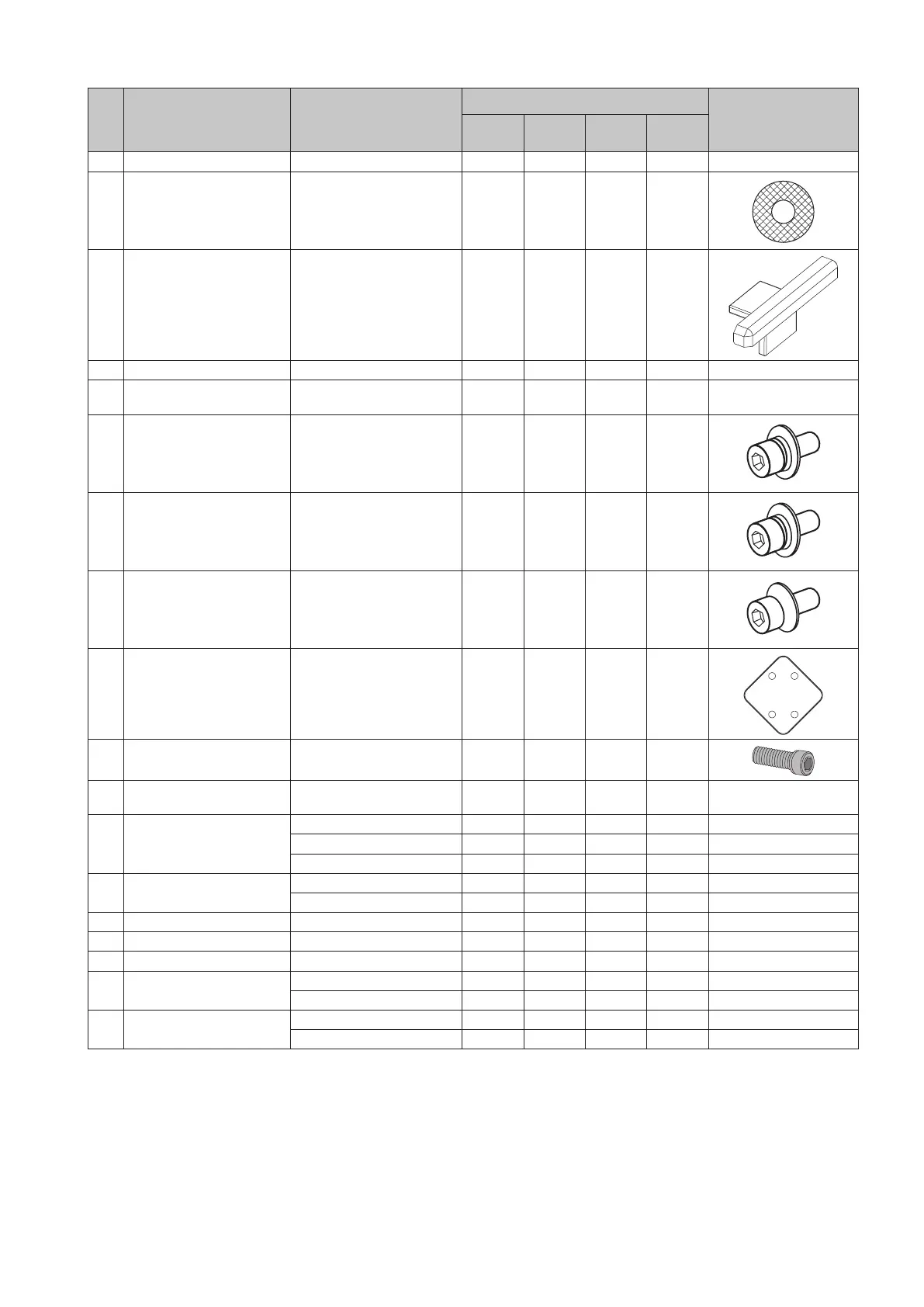

Parts Specications
Quantity
4 x 4 frame
set
5 x 5 frame
set
6 x 6 frame set
(0.9 mm pitch)
6 x 6 frame set
(1.9 mm pitch)
9 Mounting bar 3 4 5 5
Washer 17
(12+5*
1
)
25
(20+5*
1
)
35
(30+5*
1
)
35
(30+5*
1
)
10 Corner frame top
(left, right)
2 2 2 2
11 Overframe (top) 1 1 1 1
Slot nut 15
(10+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
Screw for overframe
(M4×4)
Hexagon socket head
screw
8
(3+5*
1
)
9
(4+5*
1
)
9
(4+5*
1
)
9
(4+5*
1
)
Screw for overframe
(M4×8)
Hexagon socket head
screw
12
(7+5*
1
)
13
(8+5*
1
)
13
(8+5*
1
)
13
(8+5*
1
)
Screw for cabinet
(to Power bar)
(M8×25)
Hexagon socket head
screw
13
(8+5*
1
)
15
(10+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
Adjustment plate 10 12 14 14
Screw for Adjustment
plates (M8×25)
Hexagon socket head
screw
45
(40+5*
1
)
53
(48+5*
1
)
61
(56+5*
1
)
61
(56+5*
1
)
Screw for connecting
cabinets (M8×25)
53
(48+5*
1
)
85
(80+5*
1
)
125
(120+5*
1
)
125
(120+5*
1
)
LAN cable for the LED
modules (FA series)
120 mm 12 20 18 30
135 mm 12 20 18 30
1 m – – – –
LAN cable for the LED
modules (FE series)
120 mm 12 20 18 30
1 m
– – – –
Alignment bar 2 2 2 2
USB ash memory 1 1 1 1
Safety Manual 1 1 1 1
LED controller
(FA series)
Novastar MCTRL660 PRO 2 2 – 2
Novastar MCTRL4K – – 4 –
LED controller
(FE series)
Novastar MCTRL660 PRO
1 1 – 1
Novastar MCTRL4K
– – 2 –
*1: Spare parts
