• Wire sizes
Wire sizes compatible with the power connector (WAGO) are as follows.
Solid core: φ1.6 to 2.0 mm
IV 7-stranded core: 2.0 to 3.5 mm
2
Flexible stranded core: 2.0 to 3.5 mm
2
• When reconnecting a wire once disconnected, cut off the wire end and newly peel off the sheath.
CAUTION
• When reconnecting a wire once disconnected, cut off the wire end and newly peel off the sheath.
• If the disconnected wire is reconnected without this processing, it may heat up and burn out.
Newly peel off the sheath. End of disconnected wire: More or less damaged.

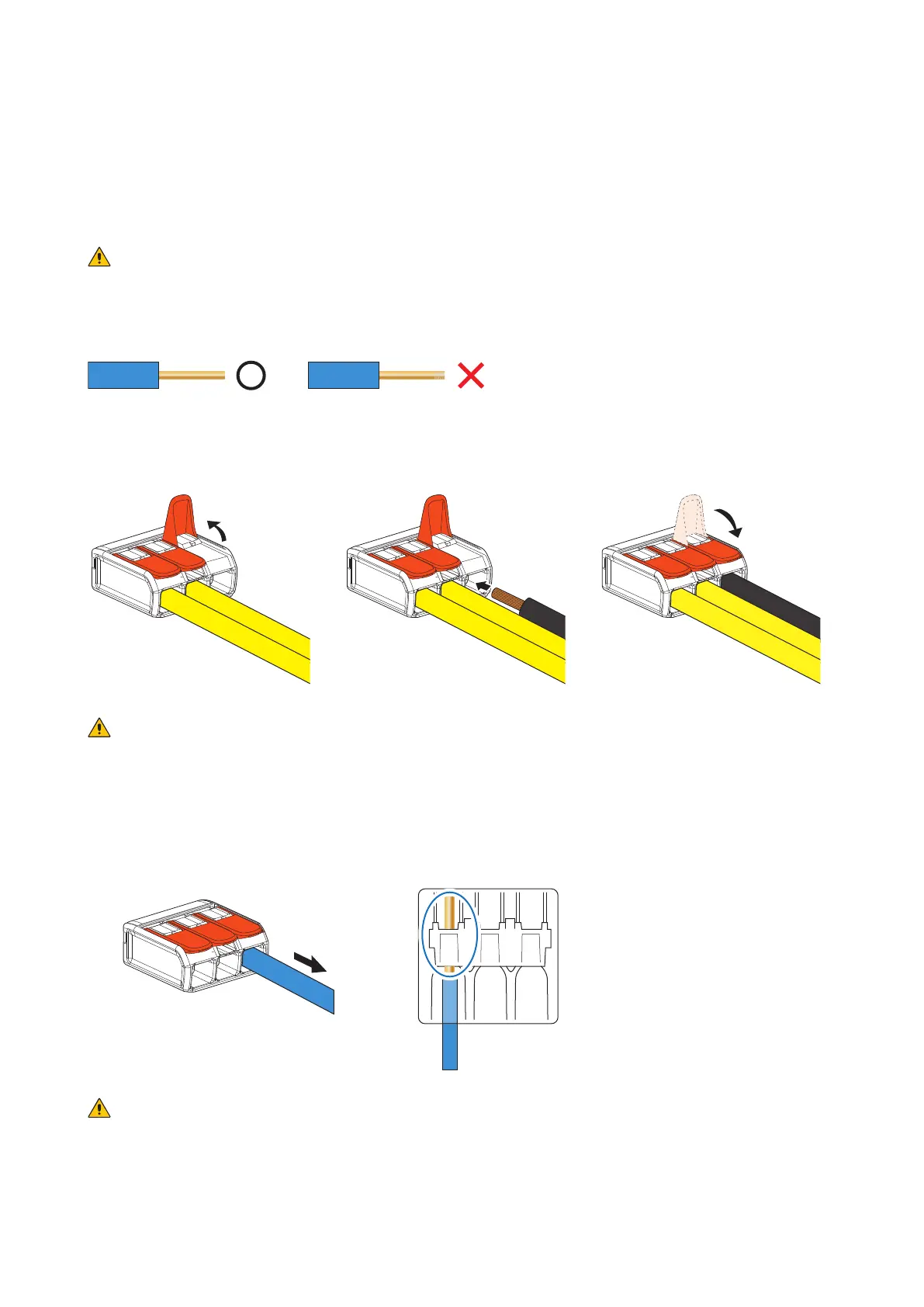

How to connect the power cord
(1) Raise the lever. (2) Insert the wire. (3) Return the lever to its
previous position.
CAUTION
Insufcient insertion may cause poor electricity conduction and heat generation.
Power code connection checking
• Perform checking for correct and proper connection.
Lightly pull on the wires one by one to check that they will not be pulled out.
Check visually
WARNING
Pay attention to the wire colors of the power cord when connecting the cord. If the cables are not connected
correctly, it may lead to a re or an electrical shock.
Blue (N)
Brown (L)
Yellow green (Ground)
