English - 8

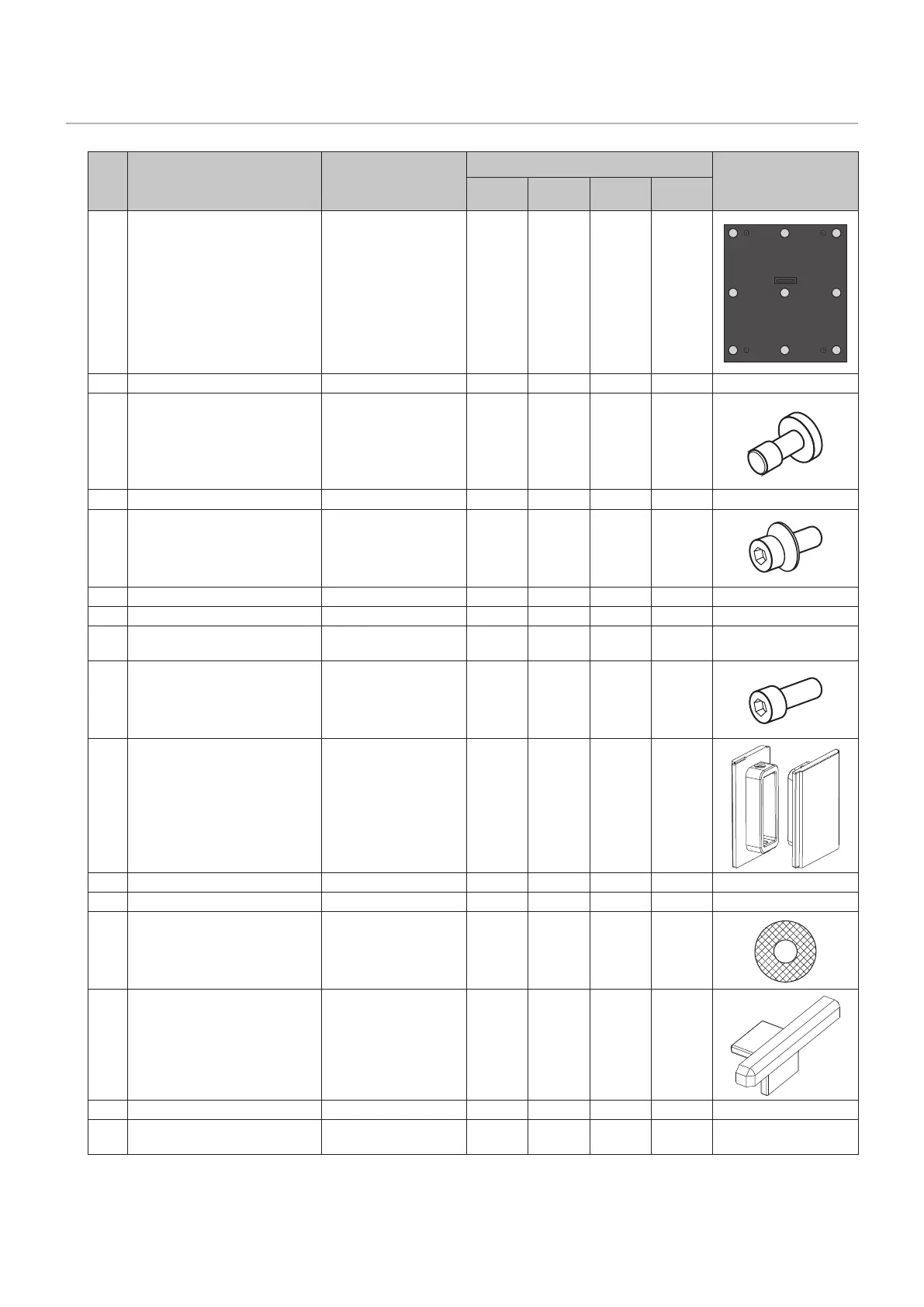

Contents
No. Parts Specications
Quantity
4 x 4
frame set
5 x 5
frame set
6 x 6
frame set
8 x 8
frame set
Pixel card
pitch 0.9, 1.2, 1.5
152 x 171 mm 128 200 288 512
Cabinet 608 x 342 mm 16 25 36 64
Cabinet hanger pin Head diameter 15
mm, thickness 5 mm,
M8 external dental
pattern, axis length
17 mm, stainless
steel color
35
(30+5*
1
)
45
(40+5*
1
)
75
(70+5*
1
)
113
(108+5*
1
)
1 Power bar cover plate 1 1 1 2
2 Power bar screw
(M8×20)
Hexagon socket head
screw
17
(12+5*
1
)
21
(16+5*
1
)
25
(20+5*
1
)
29
(24+5*
1
)
3 Power bar 1 1 1 2
4 Power bar connecting part – – – 1
5 Screw for Power bar
connecting
– – – 17
(12+5*
1
)
6 Screw for corner frame
bottom
(M6×12)
Hexagon socket head
screw
7
(2+5
*
1
)
7
(2+5
*
1
)
7
(2+5
*
1
)
7
(2+5
*
1
)
7 Corner frame bottom
(left, right)
2 2 2 2
8 Overframe (left, right) 2 2 2 2
9 Mounting bar 3 4 5 6
Washer 17
(12+5*
1
)
25
(20+5*
1
)
35
(30+5*
1
)
53
(48+5*
1
)
10 Corner frame top
(left, right)
2 2 2 2
11 Overframe (top) 1 1 1 2
Slot nut 15
(10+5*
1
)
17
(12+5*
1
)
17
(12+5*
1
)
23
(18+5*
1
)
*1: Spare parts
