4.7.3 Control Bar
It allows the user context control and access to related menus. The bar contains three symbols possi-
bly accompanied or replaced by text to indicate three possible actions that the user can perform ei-
ther by the corresponding key or by touch. A long press of the ENTER key takes the user back to the
icon menu.
The content of the bar depends on the context, level, and related status:
•
CONTEXT: refers to the running application, e.g., Measure, Archive, Sys-info, etc.;
•
LEVEL: in the specific context refers to a specific action;
•
STATUS: follows the progress of a specific action.

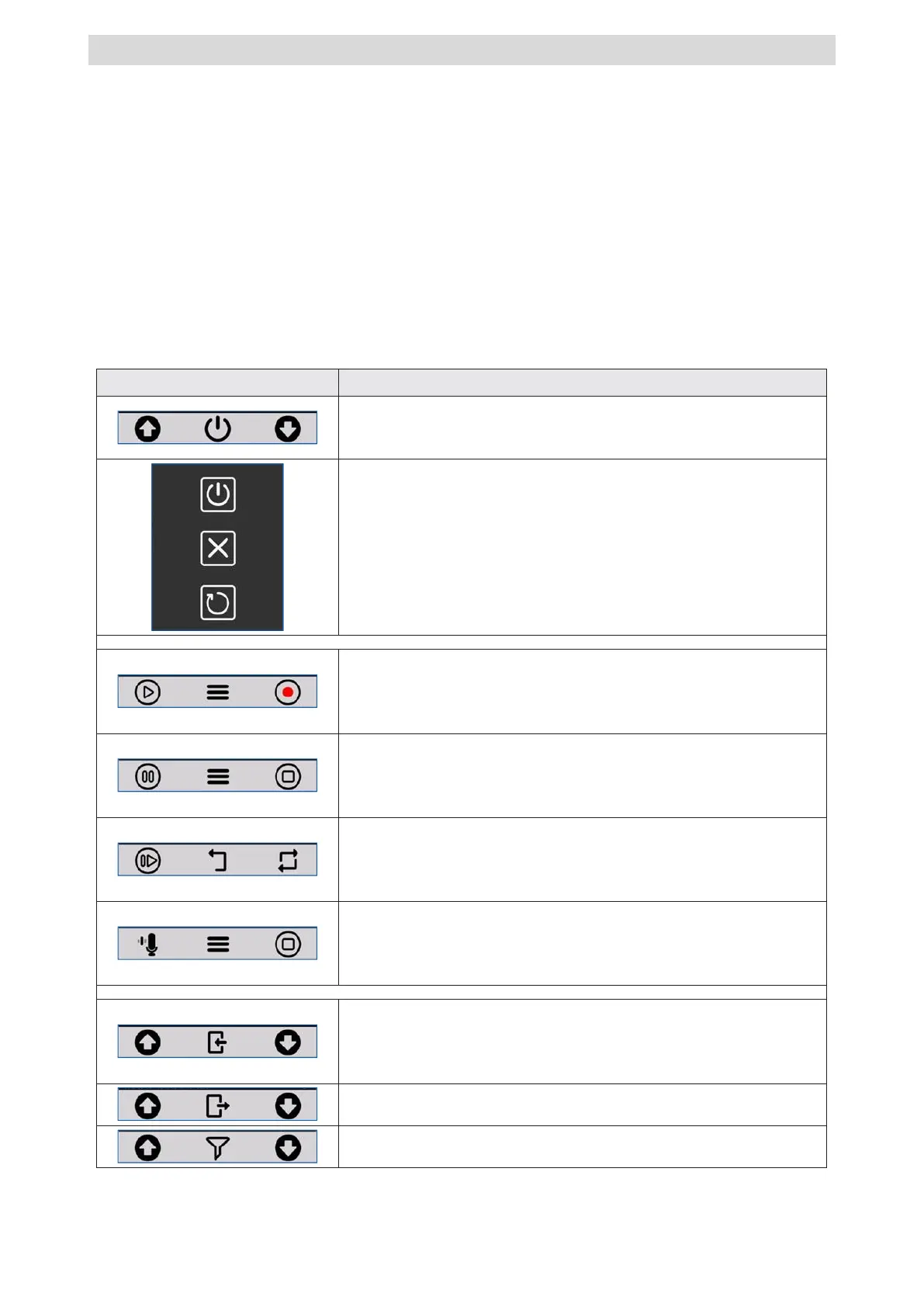

Table 2 - Control bar icons
Icon
Description
Icon menu control
•
Up/down arrows: icon selection
•
ON/OFF icon: access to the OFF panel (press 3 seconds)
OFF panel
Press the ON/OFF button for 3 seconds to activate it.
•
Upper icon: turns off the instrument
•
Middle icon: cancels the operation and closes the panel OFF
•
Lower icon: restarts the instrument
Measurement control
•
Left icon: start measurement without recording
•
Right icon: start measurement with recording (Log)
•
Central icon (MENU): access to the context menu
With measurement started:
•
Left icon: pause
•
Right icon: stop
•
Central icon (MENU): access to the context menu
With measurement started and pause button pressed:
•
Left icon: pause release
•
Right icon: reset
•
Central icon: back-erase
With recording (Log) started:
•
Left icon: manual audio recording
•
Right icon: stop recording
•
Central icon (MENU): access to the context menu
Navigation/function management
•
Arrows (UP/DOWN): allow you to navigate through
the available functions
•
Central icon (OK): enter the menu
•
Middle icon (EXIT): exit the menu
•
Central icon (FILTER): allows you to set search filters
