PRO 211-x / PRO 215-x – Differential manometers
Page 8 of 24
4 Preparing the instrument
Power supply
The instrument is powered by 4 AA size alkaline batteries, already assembled in the device as
standard.

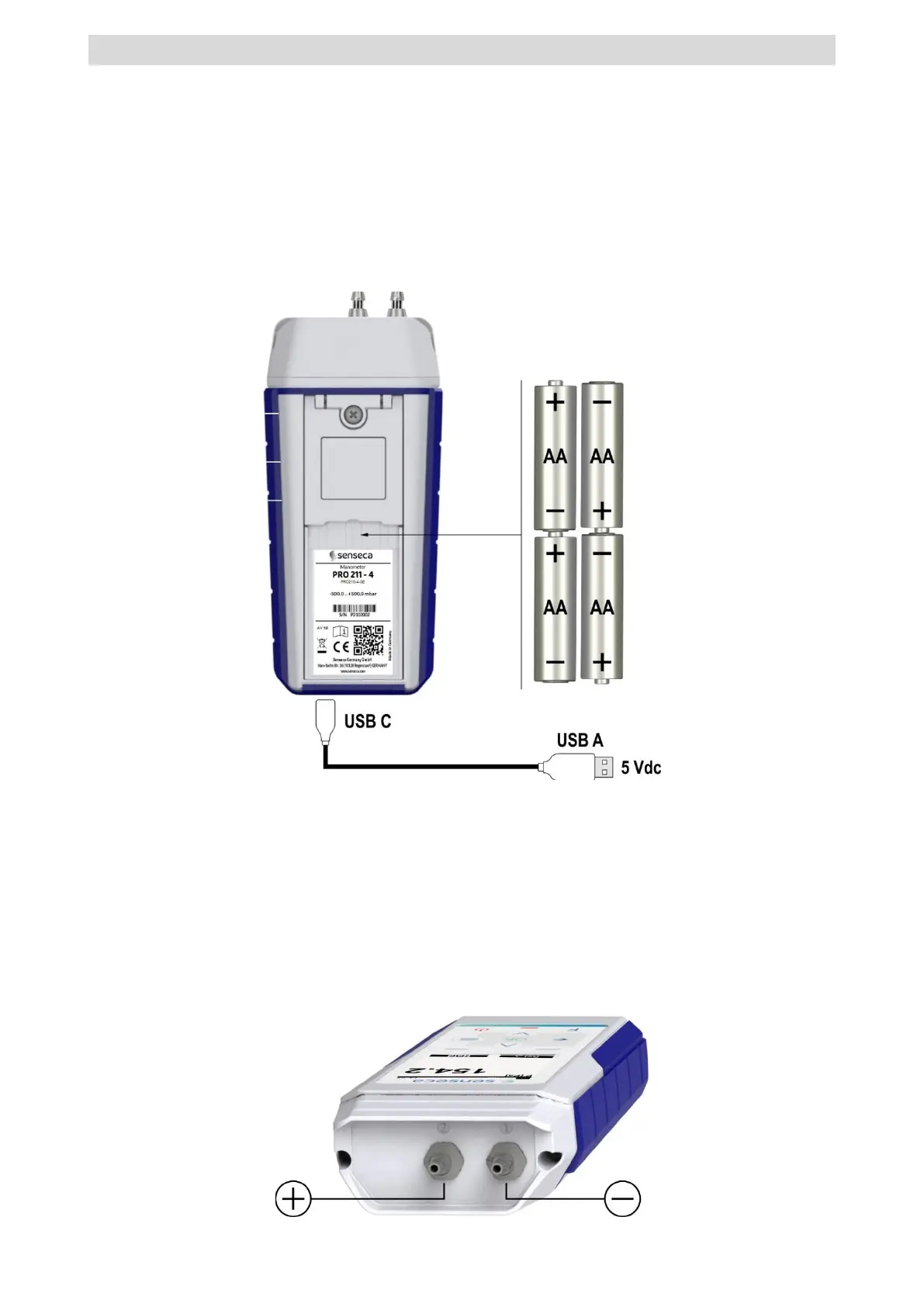

If for some reason (e.g., shipping rules) the batteries are not already assembled, unscrew the
battery cover fixing screw and remove the cover, then insert the batteries as shown below.
The instrument can also be powered via the USB-C port by a 5 Vdc standard power adapter or
power bank. If a power bank is used, make sure it is of appropriate capacity and does not have
the auto-shutdown function when the current draw is very low (for example, suitable power
banks are those in the Varta Power Bank Energy series).
Pressure ports connection
The instrument is supplied as standard with universal barbed pressure ports for 4 and 6 mm
inner diameter hose. Connect the hoses respecting the +/- polarity according to the system to
be monitored.
