ECO 210-... - Fine manometer | manometer Measurement Basics
B-H88.0.2X.DK2-2.0 Page 14 from 24
5.2 Pressure Connection
The device measures the pressure difference between the two connection ports.
• [+] higher pressure
• [-] lower pressure
Measurement takes place against ambient air for relative pressure measurements, for which
purpose the pressure hose is connected to [+], [-] remains free.
Note
Silicon hoses are not necessarily suitable for pressures up to 2 bar, depending on
dimensioning. Check for suitability!

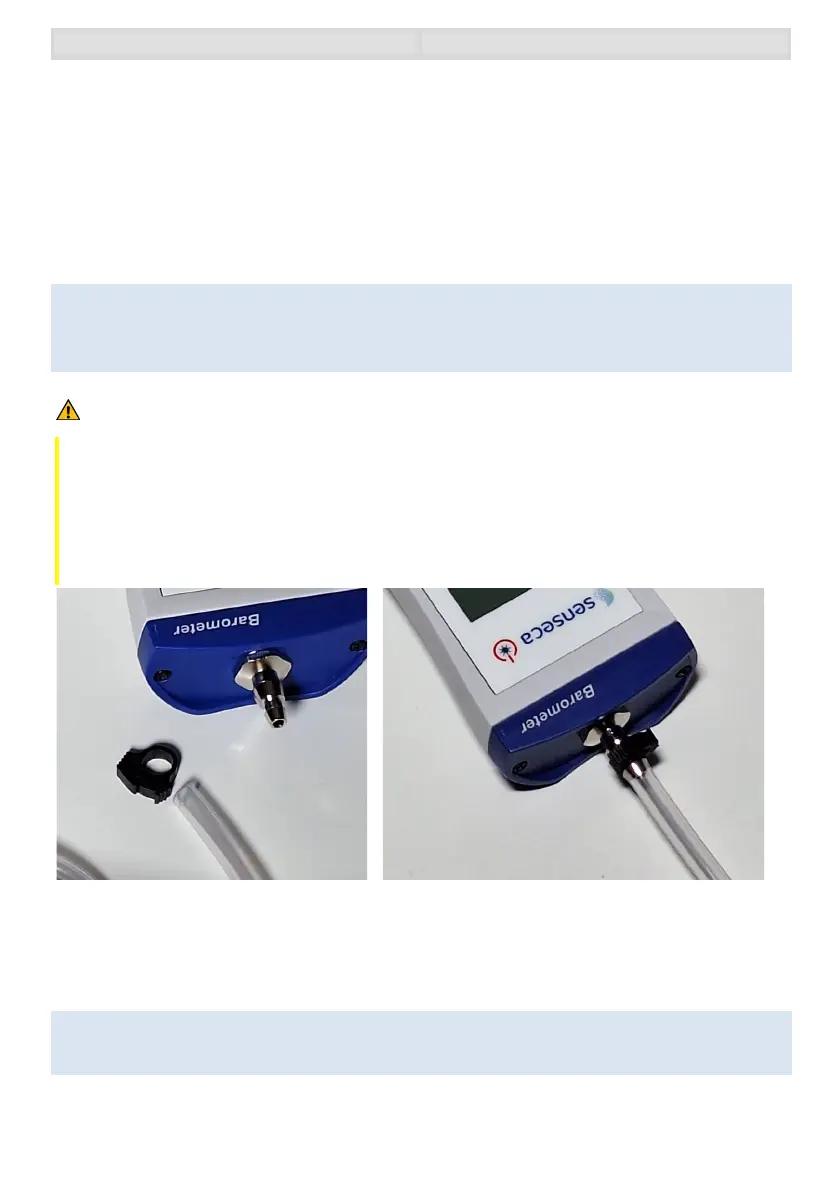

Caution Air pressure at port variant UT!
With higher pressures greater than 1 bar, the hoses must be secured to prevent
unintended loosening. Suitable GDZ hose clamps are used for this purpose.
6x1 mm PVC (GDZ-01) up to 5 bar rel., vacuum-suitable!
6x1 mm PE (GDZ-02) up to 10 bar rel., vacuum-suitable!
6x1 mm PUR (GDZ-03) up to 9 bar rel., vacuum-suitable!
5.2.1 Replacement of pressure hoses
The pressure connections are screwed into the product with a standard G 1/8 inch thread
with end seal. All common pressure connections with this design can be connected.
Note
Use a suitable tool for tightening and observe the maximum torque of 2 Nm!
