ECO 210-... - Fine manometer | manometer Measurement Basics
B-H88.0.2X.DK2-2.0 Page 15 from 24

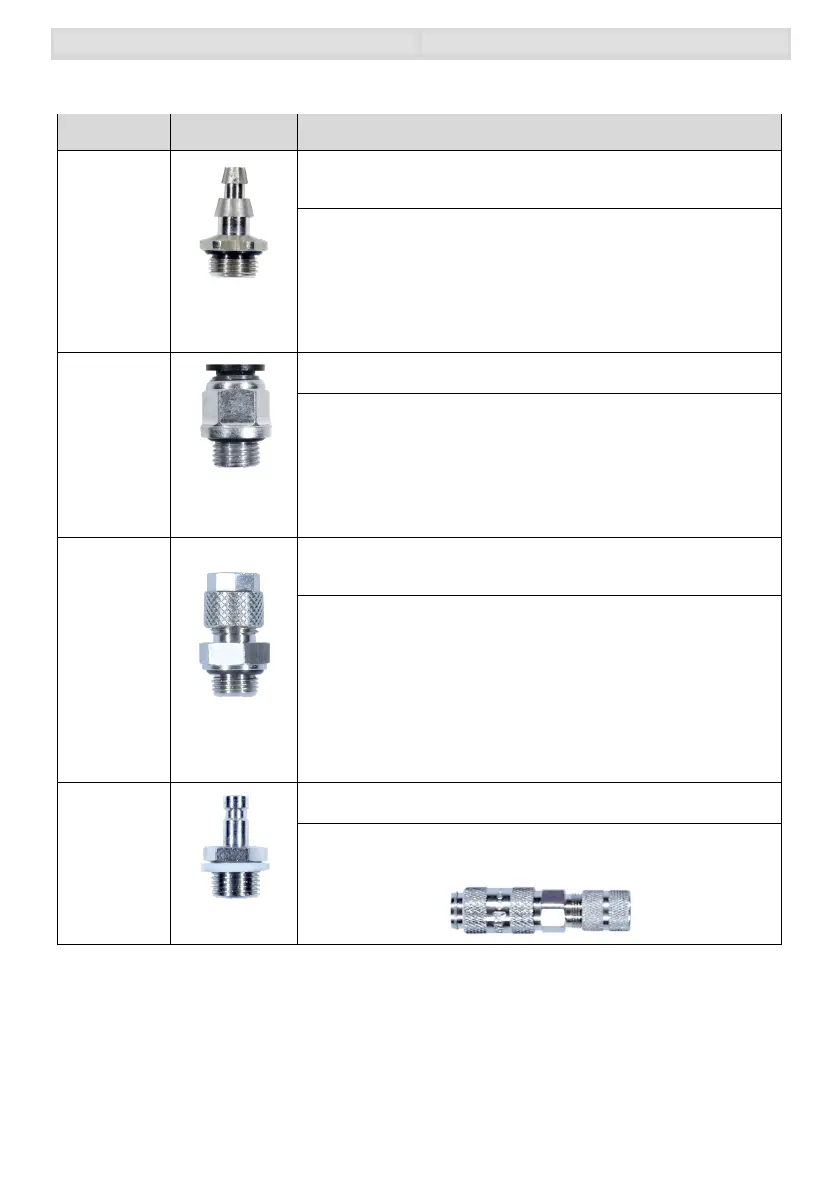

Supplied connection:
Typ Picture Description
.. - UT
Universal hose connection for 6 x 1 mm (4 mm inside) and 8
x 1 mm (6 mm inside) hoses.
• The universal hose connection is suitable for plastic and
silicon hoses with an outer diameter of 6 mm, for which
purpose the hoses are simply connected to the upper
part. Rubber/silicon hoses with a larger diameter (e.g. 8
mm) can also be connected. They are fit on the lower part
for this purpose.
.. - QC6
Quick-Connect for Ø 6 mm hoses.
• The practical quick-change connection is only suitable for
plastic hoses with 6 mm outer diameter. The hose end
must be clean and undamaged for connection. It is fit by
simply pushing it in until the mechanical stop is reached.
It is disconnected by simultaneously pressing the ring on
the upper end of the connection and pulling the hose.
.. - ST6
Screw connection for 6 x 1 mm (Ø 4 mm inside) plastic
hoses.
• The secure screw connection is only suitable for plastic
hoses with 6 mm outer diameter (Ø 4 mm inside). The
hose end must be clean and undamaged for connection.
The union nut must be loosened before connection. Then
the hose is pushed onto the hose nipple up to the
mechanical stop. The union nut is hand-tightened to
secure the connection. Disconnection takes place by
loosening the union nut and pulling on the hose.
.. - MCM
MCM mini-quick-coupler plug connector.
• Compatible quick-couplers with nominal width 2.7
mm can be used:
