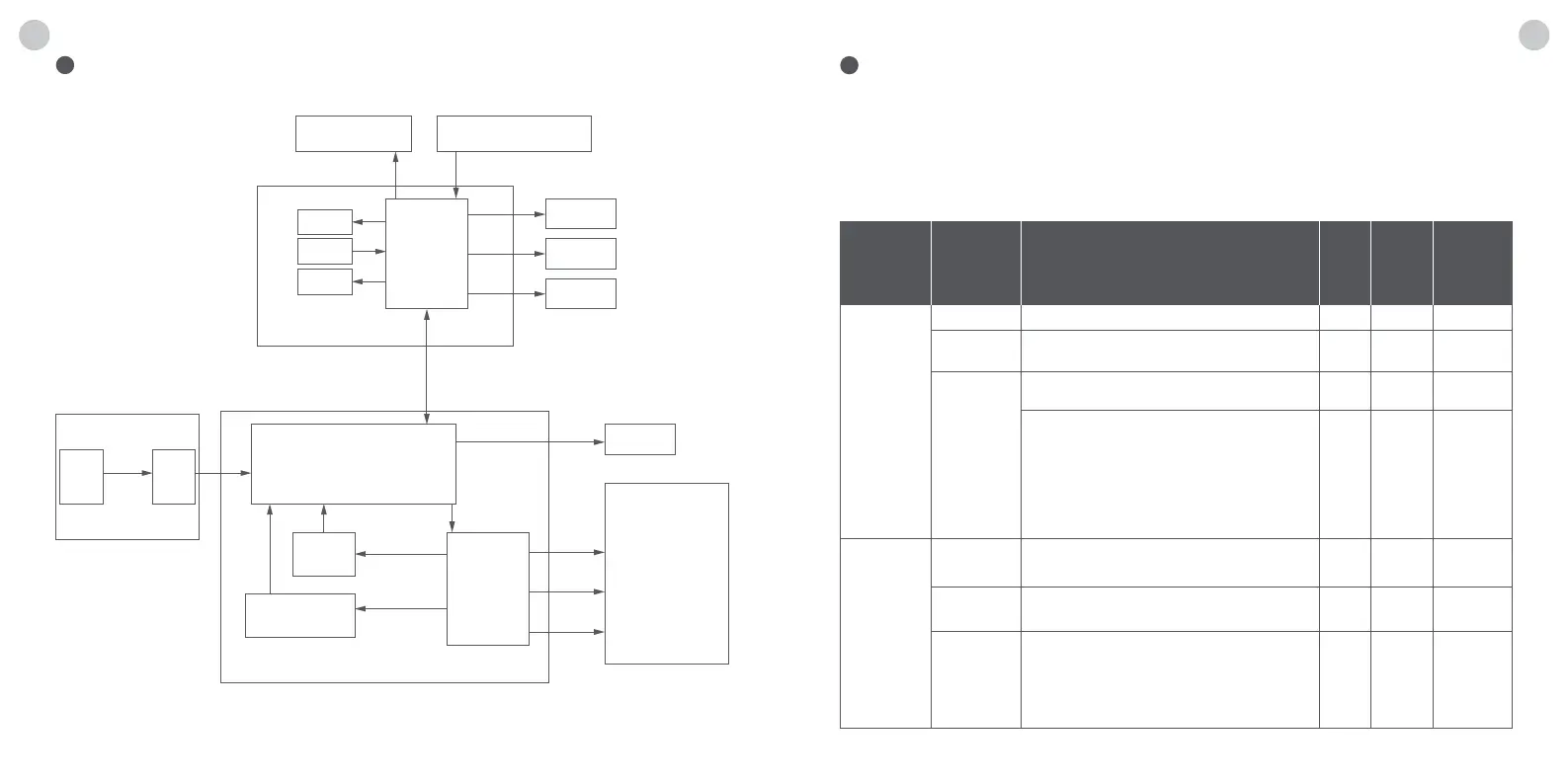

Wiring Diagram

Controller

Motor

Dashboard

Throttle

Brake

Headlight

MCU

Buzzer

Display

Bluetooth

Module

Motor driver

Battery

BMSCell

Voltage

Sampling

Current

Sampling

Tail light

Direction Indicator Direction Indicator Button

Key

Recommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner, havecontrolandknowledgeofhowoften

youuseyourscooter,howhardyouuseitandwhereyouuseit. It is the owner's responsibility to perform regular checks and bring your

scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.

Note: This maintenance schedule charges a service fee.

Item Component

Mainframe parts Use a soft, wet cloth to wipe the mainframe clean.

Tire wear

Screws on the

stem top

Mainframe

maintenance

Check if the tires are cracked, deformed, or signicantly

worn.

Tighten the six screws xed with the handlebar and the

stem. The suggested torque is 5.5±0.3 N·m.

Tighten the screw on the throttle. The suggested torque is

2±0.1 N·m.

Tighten the screws on the brake levers. The suggested

torque is 5±0.1 N·m.

Tighten the screws on the stem top. The suggested torque

is 2±0.1 N·m.

Maintenance Method

Every 3

months

Every 6

months or

every

500km

(310 miles)

After 2 years or

the total mileage

5,000km

(3,107 miles)

√√

√√√

Hub motor

Rear wheel

maintenance

Drum Brake

To accelerate and decelerate, check if the hub motor is

stalled or has abnormal sounds.

Check if the rear wheel is stalled or gets shaky, or the axis shaft

is unbalanced.

1) Spin the rear wheel, it spins normally. The rear wheel shall

not stuck or make abnormal sounds.

Note: Slight noise does not aect riding safety. But if the drum

brake makes a loud noise when you apply brakes, please

contact customer service for support.

2) Squeeze the brake lever, the rear wheel stops moving.

√√

Function

Inspection

07 08
