Please make sure both
connectors on the
power supply side are
properly connected.
4. Install your Seasonic PSU
4.4. Connect all the necessary system DC
cables (Motherboard, CPU, VGA, HDD,
Optical Drivers, etc). The connectors should
click to lock in.
ATTENTION! Use only cables provided by
Seasonic! Should you require additional
cables, please contact Seasonic.
Note: The power supply drawings are for illustration purposes only, your actual model might look dierent.

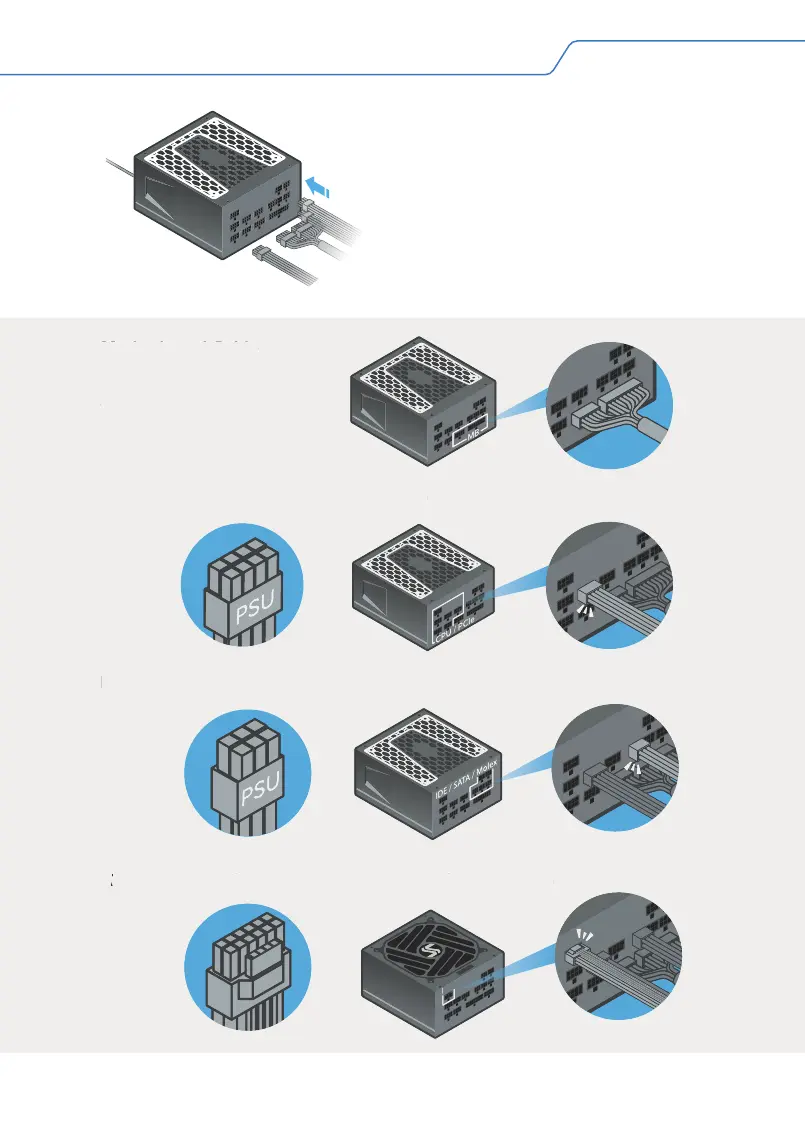

Motherboard Cable
CPU and PCIe Cables (8-pin connectors)
Peripheral Cables (6-pin connectors)
ATX 3.0 Compatible 12VHPWR Cable (16-pin connector)
12VHPWR
Please make sure both Please make sure both
connectors on the connectors on the
power supply side are power supply side are
properly connected.properly connected.
Motherboard Cable
CPU and PCIe Cables (8-pin connectors)
Peripheral Cables (6-pin connectors)
A
TX 3.0 Compatible 12VHPWR Cable (16-pin connector)
ATX 3.0 Compatible 12VHPWR Cable (16-pin connector)A
12VHPWR
12VHPWR
12VHPWR
