HL- M1120LD INSTRUCTION MANUAL(UPDATED: 2/27/24)
50
Printing Wheel Adjustments
Problem: Print wheel on the band sealer rotates more than once.
Possible Cause: Electromagnetic clutch on the back of the unit and groove sensor are not aligned properly.
The flat panel of the electromagnetic clutch signals the grove sensor to stop the print wheel rotation.
1. We suggest the following steps:
2. Loosen the nut as shown in Figure 49. This will allow the carbon brush holder and grove sensor
some movement.
3. Push the groove sensor closer to the electromagnetic clutch
4. Re-tighten the nut

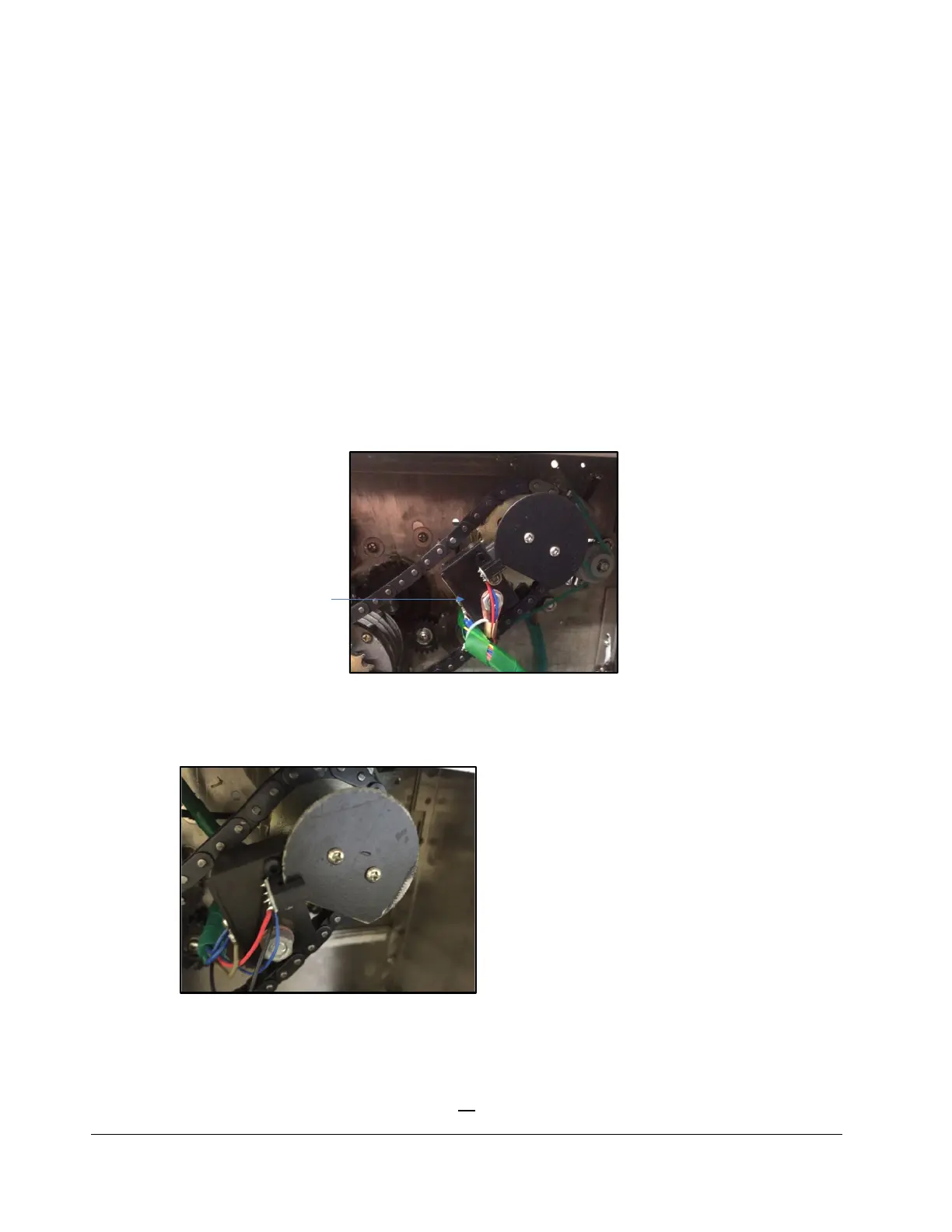

Figure 49. Incorrect position of groove sensor and electromagnetic clutch
Figure 50. Correct position of groove sensor and electromagnetic clutch
Loosen Nut in
order to move the
groove sensor
closer to
electromagnetic
clutch
Electromagnetic Clutch
Groove Sensor
