HL- M1120LD INSTRUCTION MANUAL(UPDATED: 2/27/24)
19

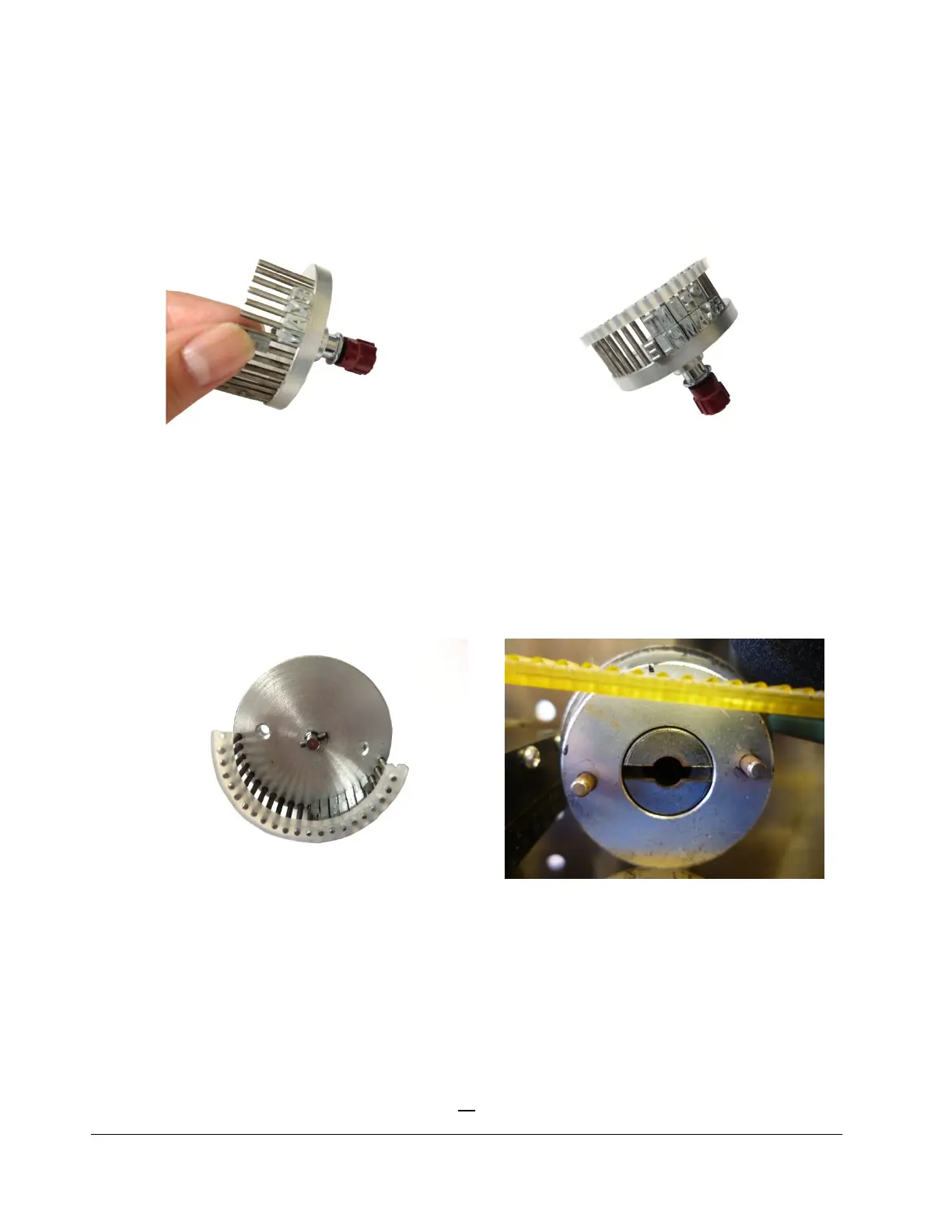

2. Installing Types/Characters on Print Wheel. Place selected characters in the grooves of the
printing wheel. Be sure to insert the characters from right to left to ensure actual imprint prints
correctly on your packaging material. Once completed, insert the silicone pin at the top of the
printing wheel to hold the characters in place.
Figure 16. Place characters from right to left.
Figure 17. Place silicone pin to lock characters in place.
3. Installing the Print Wheel. To insert the spring-loaded print wheel into the print wheel base,
ensure that the pins on the printing wheel are aligned with the notches of the print wheel base.
Gently insert the print wheel into the base. Lock the print wheel by pushing the red handle in until
you feel the handle lock into place.
Figure 18. Ensure two holes and pins line up with the base
Figure 19. Ensure two holes and pins line up with the base
